NOTE
To adjust the landing light,
add AN960-10 and/or AN960-10L
washers (Ref item 10) as required
between plate (7) and support
bracket assy (8).
4
4
4
VIEW A-A
6
AIRCRAFT 15000739 THRU 15074012, •
A1500277 THRU A1500362, F15000739
THRU F15000903
AND FA1500122
THRU FA1500191
I).
7
1. Screw
7. Plate
2. Washer
8. Support Brkt Assy
3. Light Cover
9. Nosecap
4. Adjustment Screws
10. Washer
5. Bracket 11. Nut
6.
Lamp
12. Mounting Screw

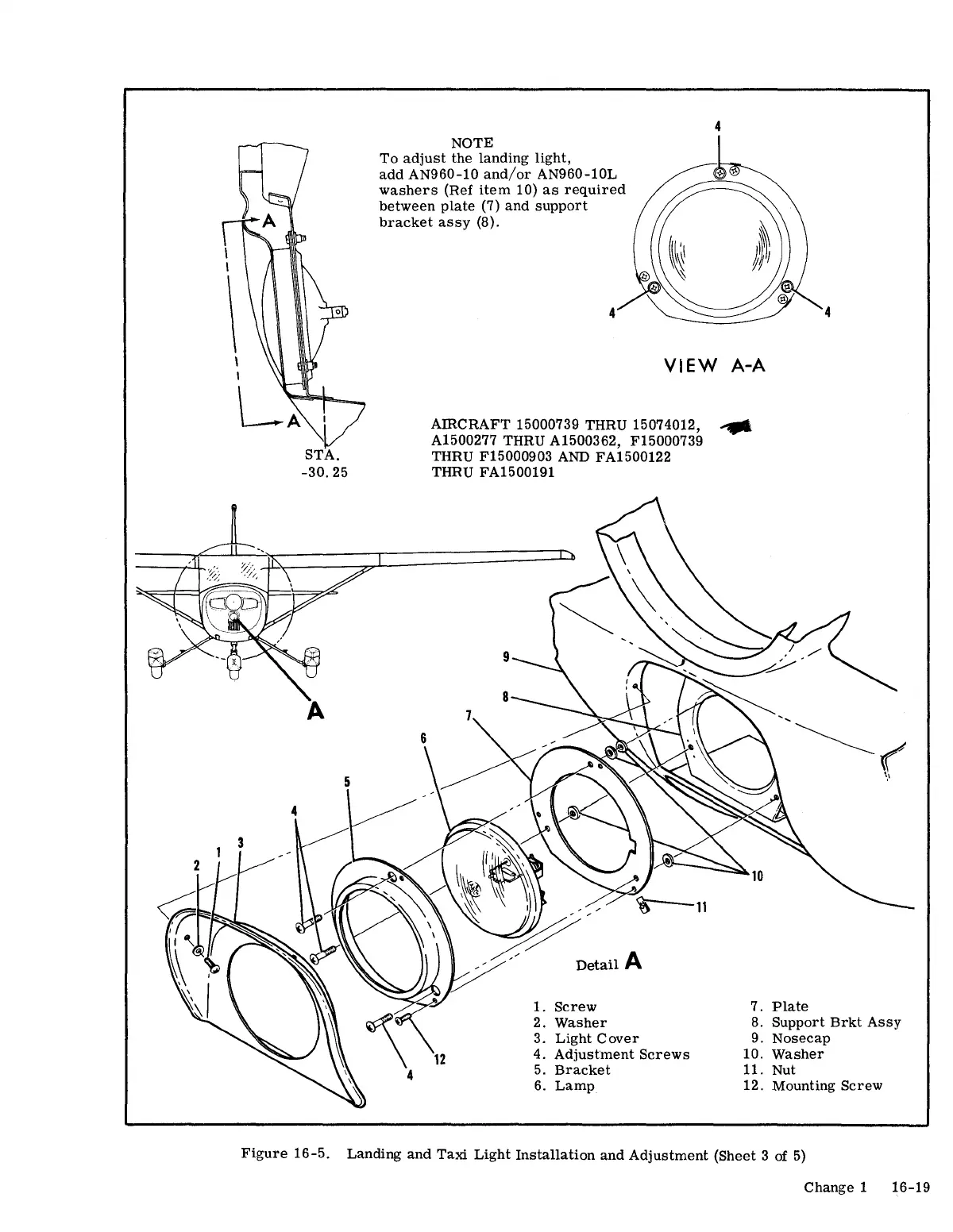

Figure 16-5. Landing and Taxi Light Installation and Adjustment (Sheet 3 of 5)
Change 1 16-19
