Cessna 150M - Page 226

2
DIMENSION D
No.
I
150
1
I
.64
/'=17-3
2
I
.72
3
I
.64
VIEW A-A
1971 AIRCRAFT ONLY
8---l
6
2 1
3
1. Screw
7. Plate
2. Washer
8. Nosecap
11
3. Light Cover
4. Adjustment Screws
9. Spring
10. Nut
5. Bracket 11. Mounting Screw
6. Lamp

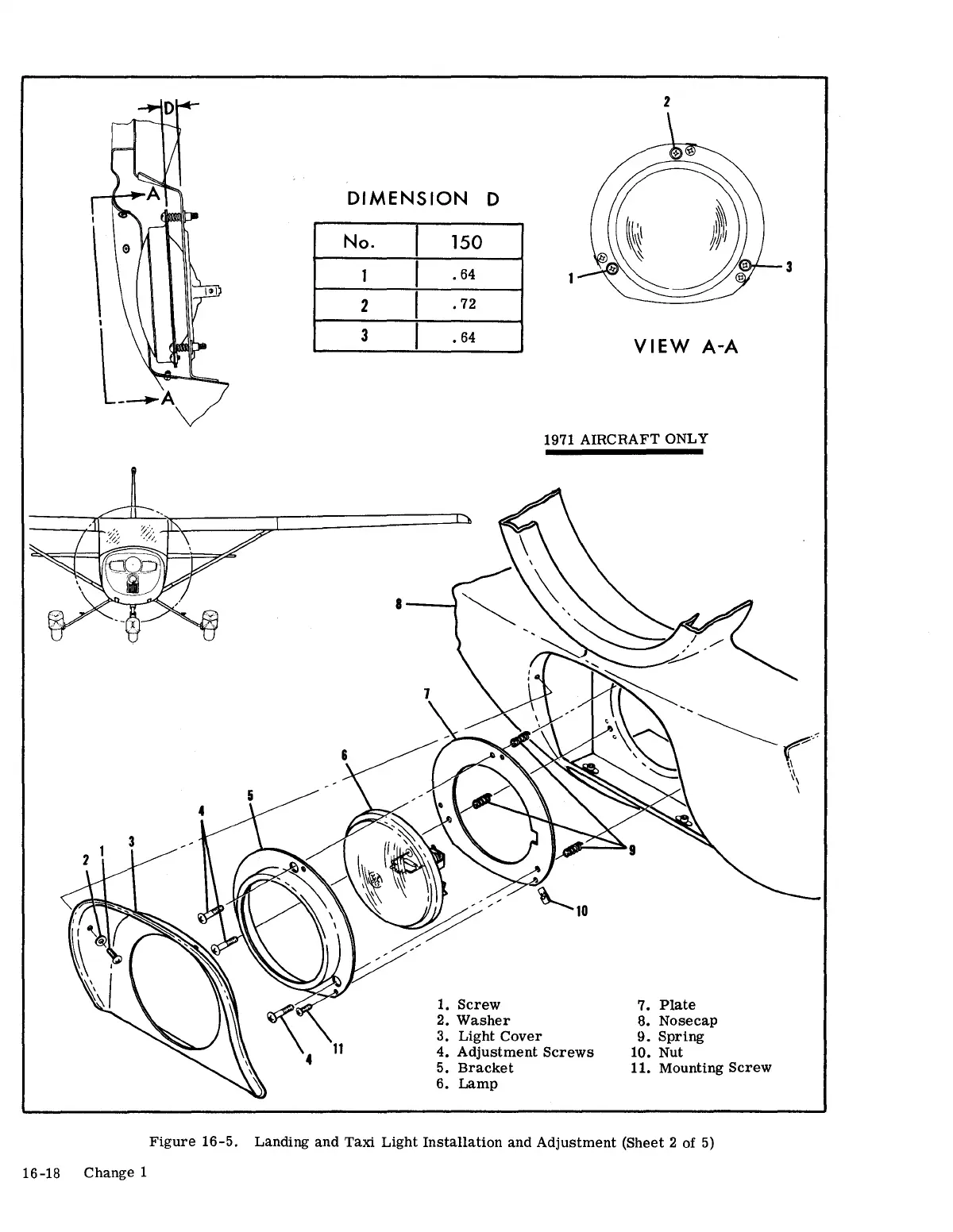

Figure 16-5. Landing and Taxi Light Installation and Adjustment (Sheet 2 of 5)
16-18
Change 1
