Cessna 150M - Alternator Installation

J/ ,
/ \ '--....-'
IWARNING'
On models manufactured prior to mid 1971
should alternator thru -bolt loosening or
breaking occur, Cessna Service Letter
SE71-40 dated November 24, 1971 should
be complied with. On models manufactured
after mid 1971 a new high strength thru-
bolt and a K shaped retainer are installed.
Torque bolts 45 to 55 pound-inches.
1. Blast Tube
2. Blast Tube Support
3. Lockwasher
... ~
A
7
Detail A
4. Screw
5. Support Strap
6. Nut
7. Alternator Assy

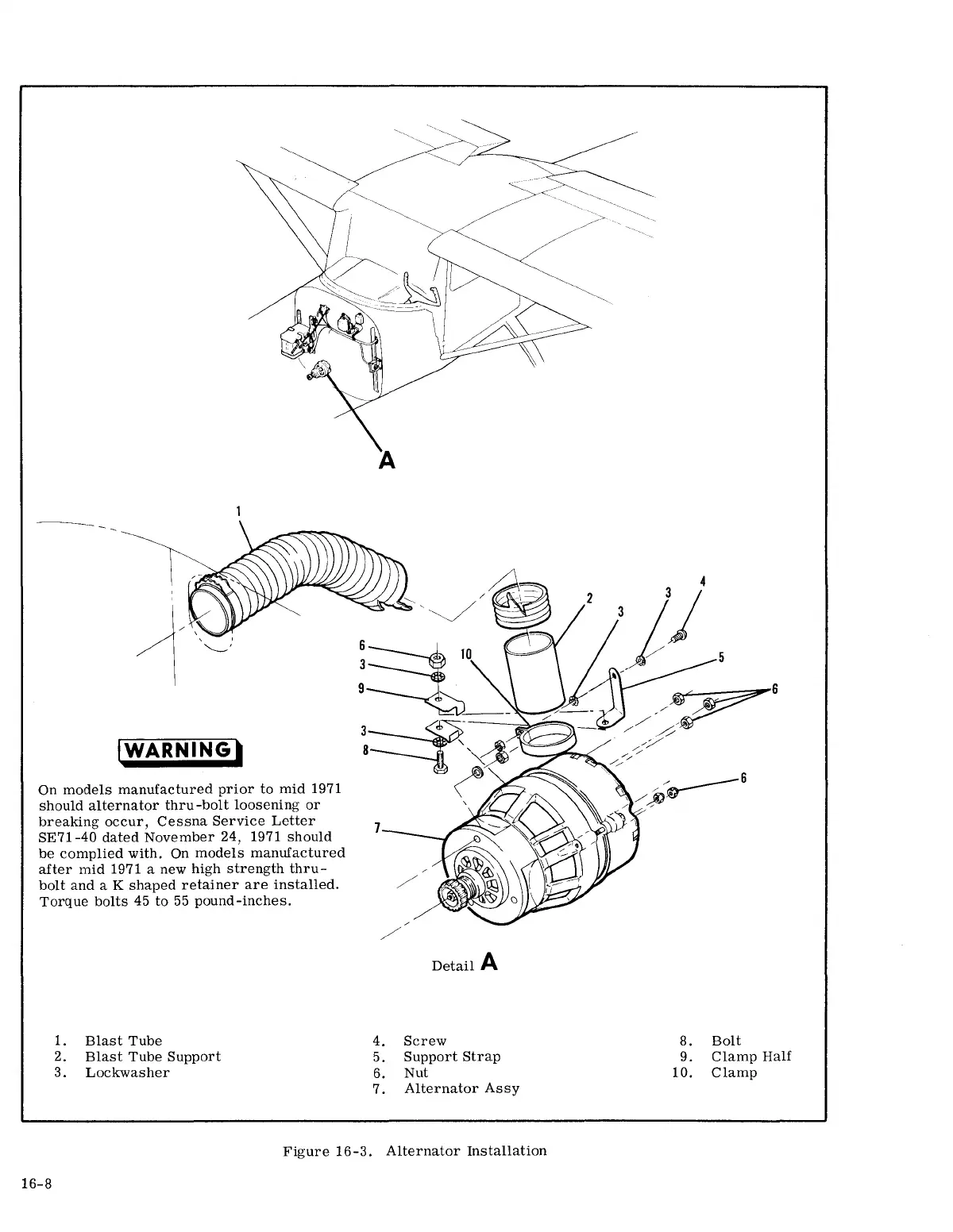

Figure 16-3. Alternator Installation
16-8
8. Bolt
9. Clamp Half
10. Clamp
