Cessna 150M - Instrument and Dome Light Console Installation

THRU 1969 MODELS
Detail A 1970 MODELS ONLY
1.
Nut
6.
Socket
11.
Adjustment Shield
2. GrOlpmet
7.
Lamp
12. Rheostat
3.
Bracket
8.
Lens
13. Knob
4.
Screw
9.
Console
14.
Support
5. Reflector
10.
Nutplate
15. Cover Assembly

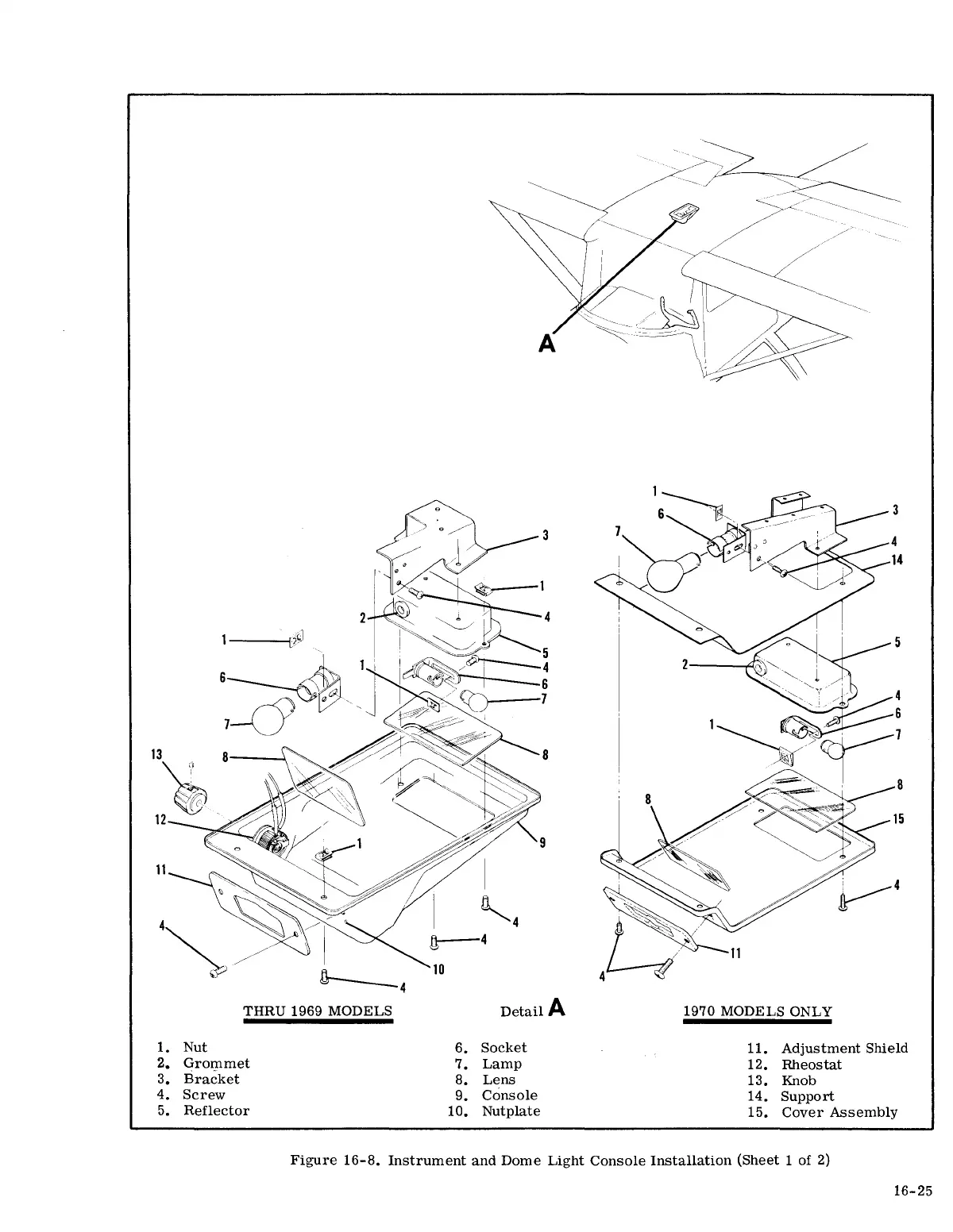

Figure 16-8. Instrument and Dome Light Console Installation (Sheet 1 of 2)
