Cessna 150M - Rudder Pedals Installation

1-----6
FIREWALL
6.00 INCHES
REFER TO
FIGURE 5-11----'
10
1.
Brake Link Pin
6.
Pedal Arm 12. Brake Link
2. Pedal
7.
Brake Torque Tube 13.
Left Rudder Bar
3.
Anti-Rattle Spring
8.
Bearing 14.
Return Spring
4. Pivot Shaft
9.
Bellcrank 15.
Bearing Block
5. Fuselage Structure 10. Bracket 16.
Right Rudder Bar
11.
Master Cylinder

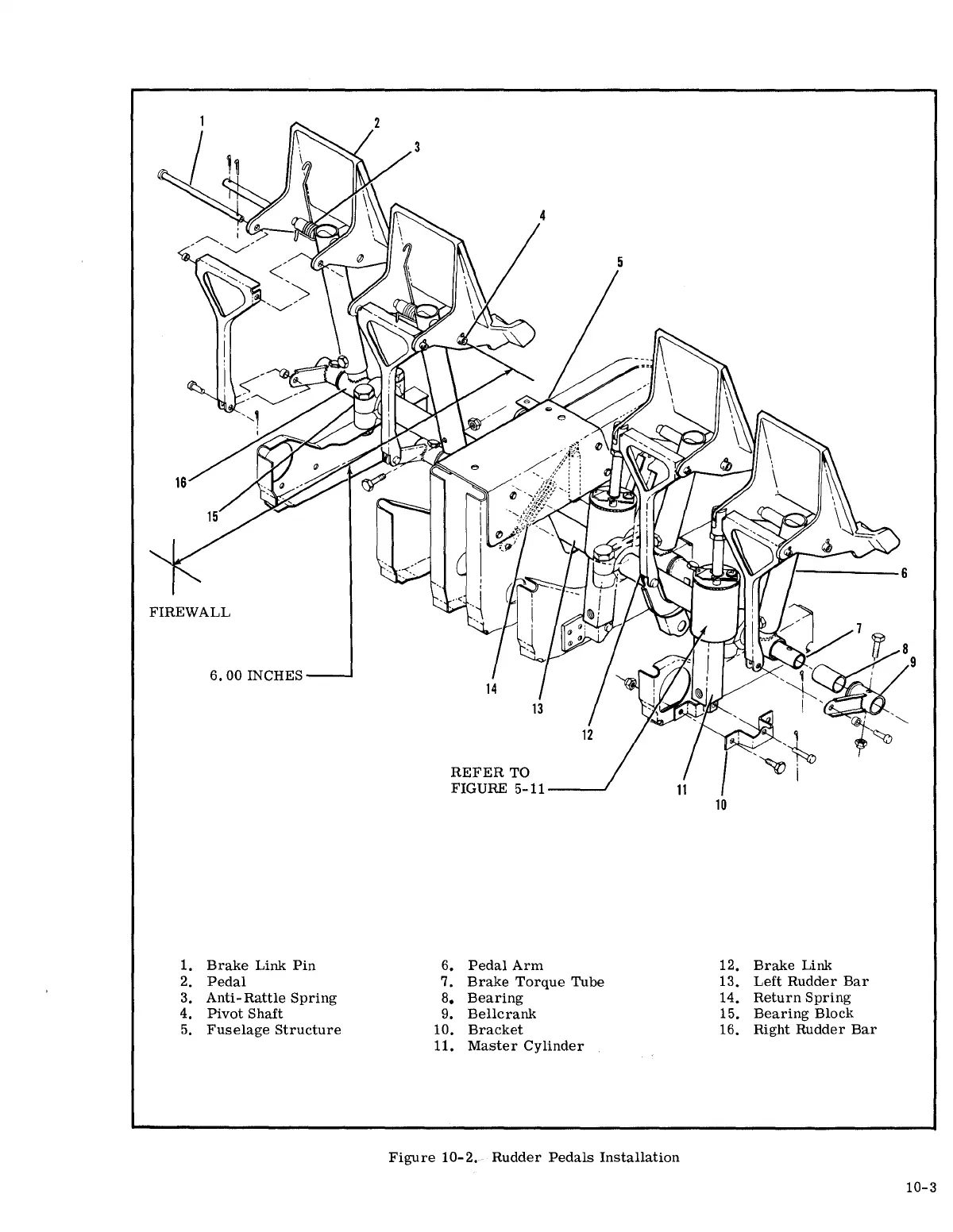

Figure 10-2. Rudder Pedals Installation
