Cessna 150M - Windshield and Rear Window

Detail A
BEGINNING WITH
AIRCRAFT SERIALS
15073143, A1500318,
F15000819
AND
FA1500162
1.
Fuselage Skin
2.
Felt Seal
3.
Inner Retainer
4.
VVindshield
~
5.
Outer Retainer
If==d=\ ~s~'\L \ f
~-3
7.
8.
9.
10.
II.
Detail B
4
B
Detail F
Overhead Cabin VVindow
Rear VVindow
External Centerstrip
Doubler
Cover
Detail C 5
4 2
Detail 0
4
6
Detail E
• NOTE
6.
Cabin Top Skin
.. 12. Sealer
ApplyPresstite No. 579. 6 sealer to all
edges of windshield and Windows under
outer retainer (5).

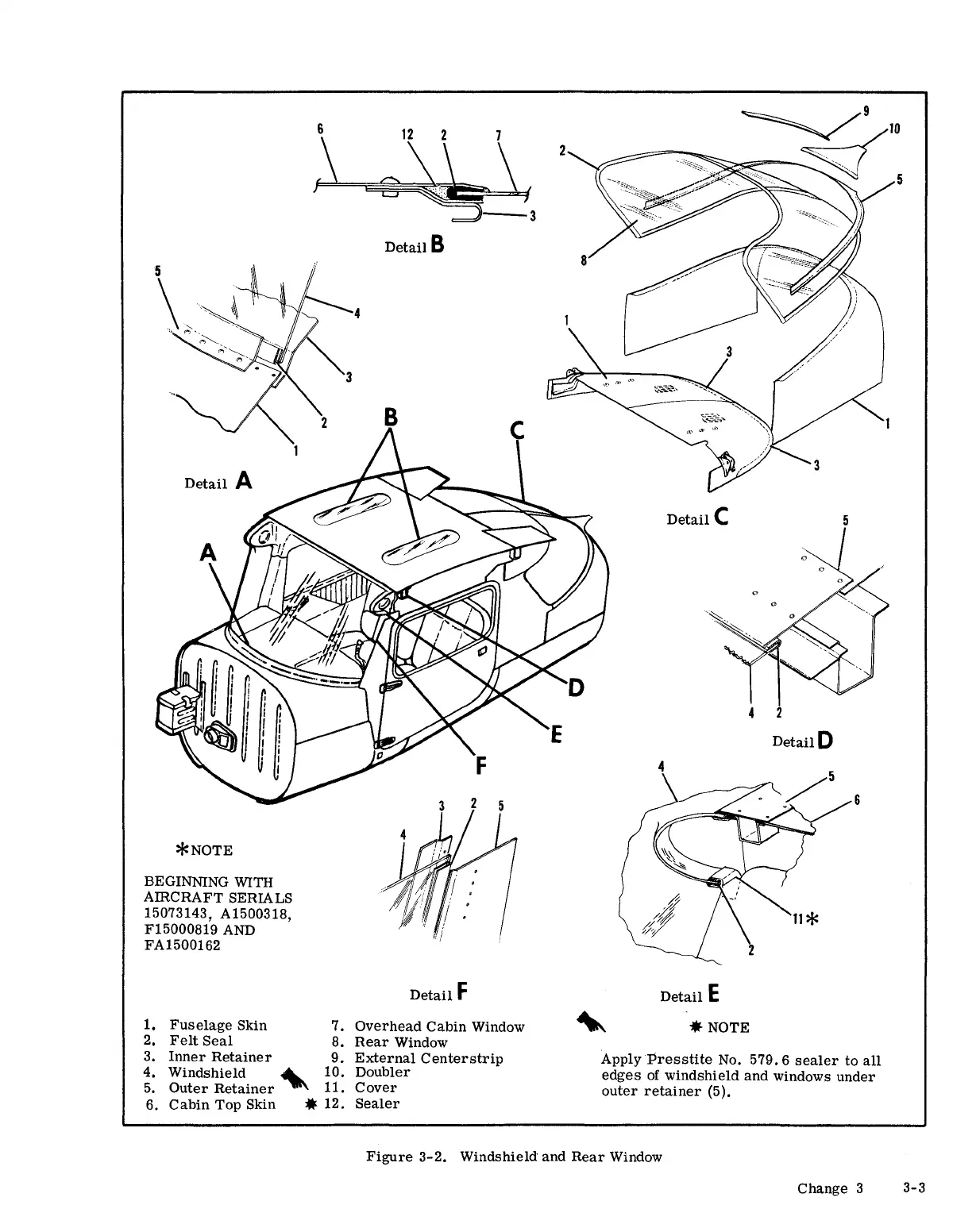

Figure 3-2. VVindshield and Rear VVindow
