Cessna 150M - Aileron Control System

TABLE OF CONTENTS
AILERON CONTROL SYSTEM.
Description . .
Trouble Shooting . . . . .
Control "Y" . . . . . . .
Description . . . . .
Removal and Installation
Aileron Bellcrank
Removal ....... .

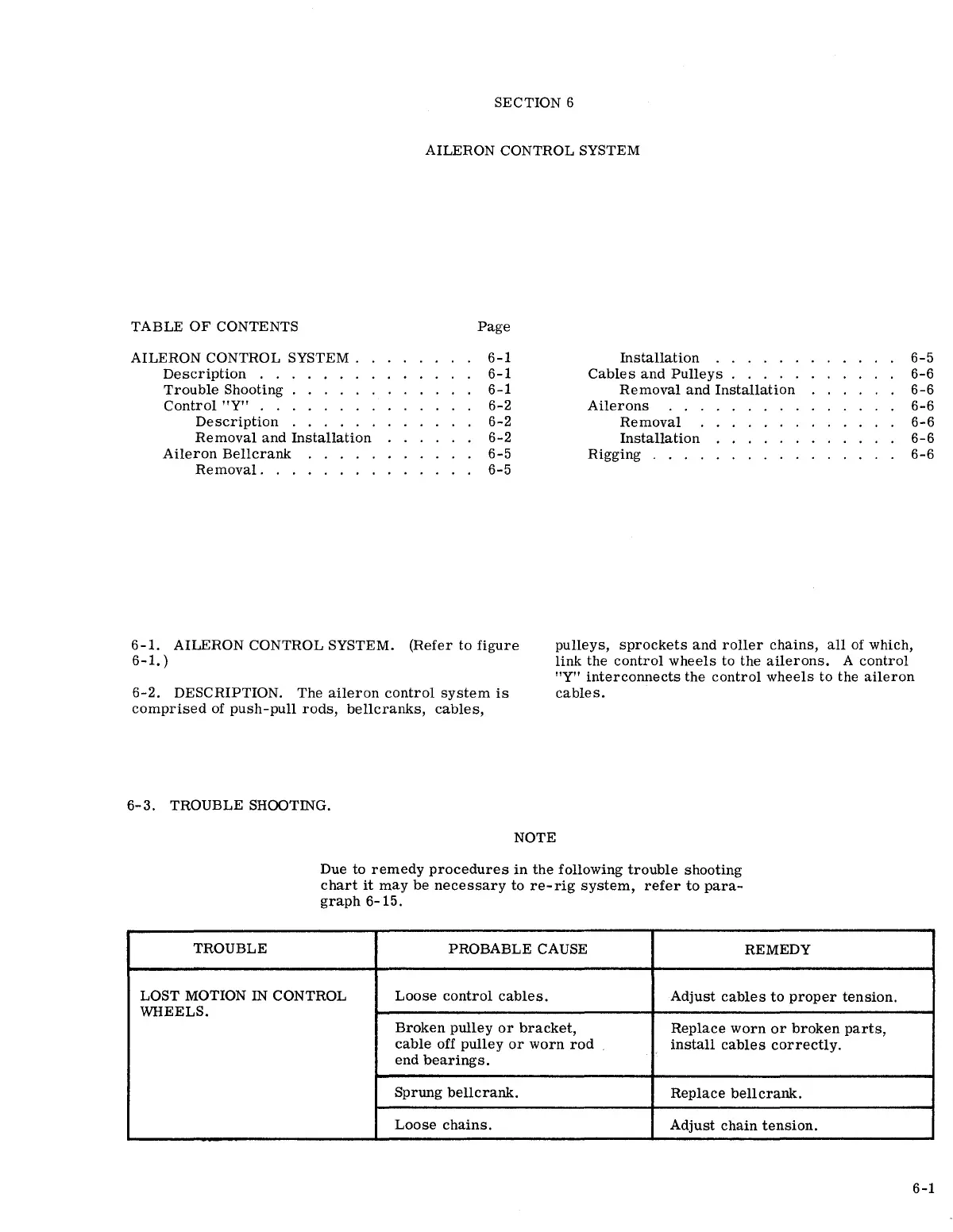

SECTION 6
AILERON CONTROL SYSTEM
Page
6-1
6-1
6-1
6-2
6-2
6-2
6-5
6-5
Installation . . . . . .
Cables and Pulleys . . . . .
Removal and Installation
Ailerons
Removal
Installation
Rigging ....
6-5
6-6
6-6
6-6
6-6
6-6
6-6
6-1. AILERON CONTROL SYSTEM. (Refer to figure
6-1. )
6-2. DESCRIPTION. The aileron control system is
comprised of push-pull rods, bellcranks, cables,
pulleys, sprockets and roller chains, all of which,
link the control wheels to the ailerons. A control
"Y" interconnects the control wheels to the aileron
cables.
6-3. TROUBLE SHOOTING.
TROUBLE
NOTE
Due to remedy procedures in the following trouble shooting
chart it may be necessary to re-rig system, refer to para-
graph 6-15.
PROBABLE CAUSE
REMEDY
LOST MOTION IN CONTROL Loose control cables.
Adjust cables to proper tension.
WHEELS.
Broken pulley or bracket,
Replace worn or broken parts,
cable off pulley or worn rod
install cables correctly.
end bearings.
Sprung bellcrank.
Replace bellcrank.
Loose chains.
Adjust chain tension.
6-1
