Cessna 150M - Page 119

2--\\ THRU AIRCRAFT SERIALS
J
1
(
15074661, F15001023, A150-
I 00415 AND FA15000211 Al(SEE SHEET 2)
1 - J
~-~-
~-
t ~
Detail A
)
BEGINNING WITH AIR-
CRAFT SERIALS 15074662,
F15001024, A15000416
AND
~::::~:~~~~~~~:~~:::::::::::::: ••.•.•• FA 15 000212
REFER TO
FIGURE 6-2
1. Fairlead
2. Clip
3. Pulley
4. Cable Guard
5. Down Cable
6. Travel-Stop Bolt
7. Jam Nut
8.
Up Cable
9. Rear Bellcrank
10. Turnbuckle
11. Turnbuckle Eye
12. Shackle
13. Bolt
14. Forward Bellcrank
15. Push-Pull Tube
~"'""'t'"--~Bl(SEE SHEET 2)
9
Detail C
-The travel-stop bolts (6) are
safetied beginning with aircraft
serials 15072569, A15000263,
F15000759
and FA15000l62.
Detail 0
MAINTAIN PROPER CONTROL
CABLE TENSION.
CABLE TENSION:
30 LBS ± 10 LBS (AT THE AVERAGE TEMPER-
ATURE FOR THE AREA.)
REFER TO FIGURE 1-1 FOR TRAVEL.

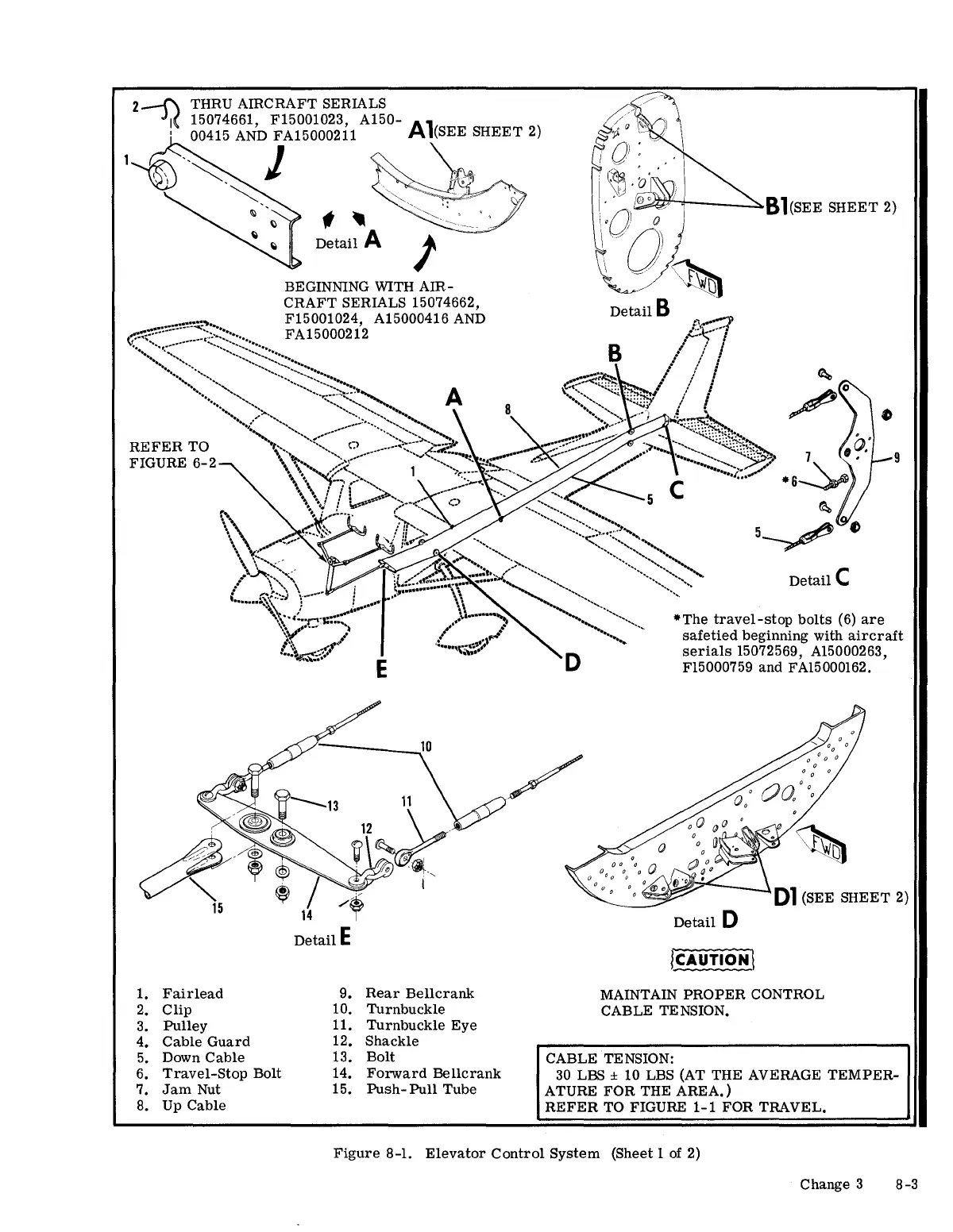

Figure 8-1. Elevator Control System (Sheet 1 of 2)
Change 3 8-3
