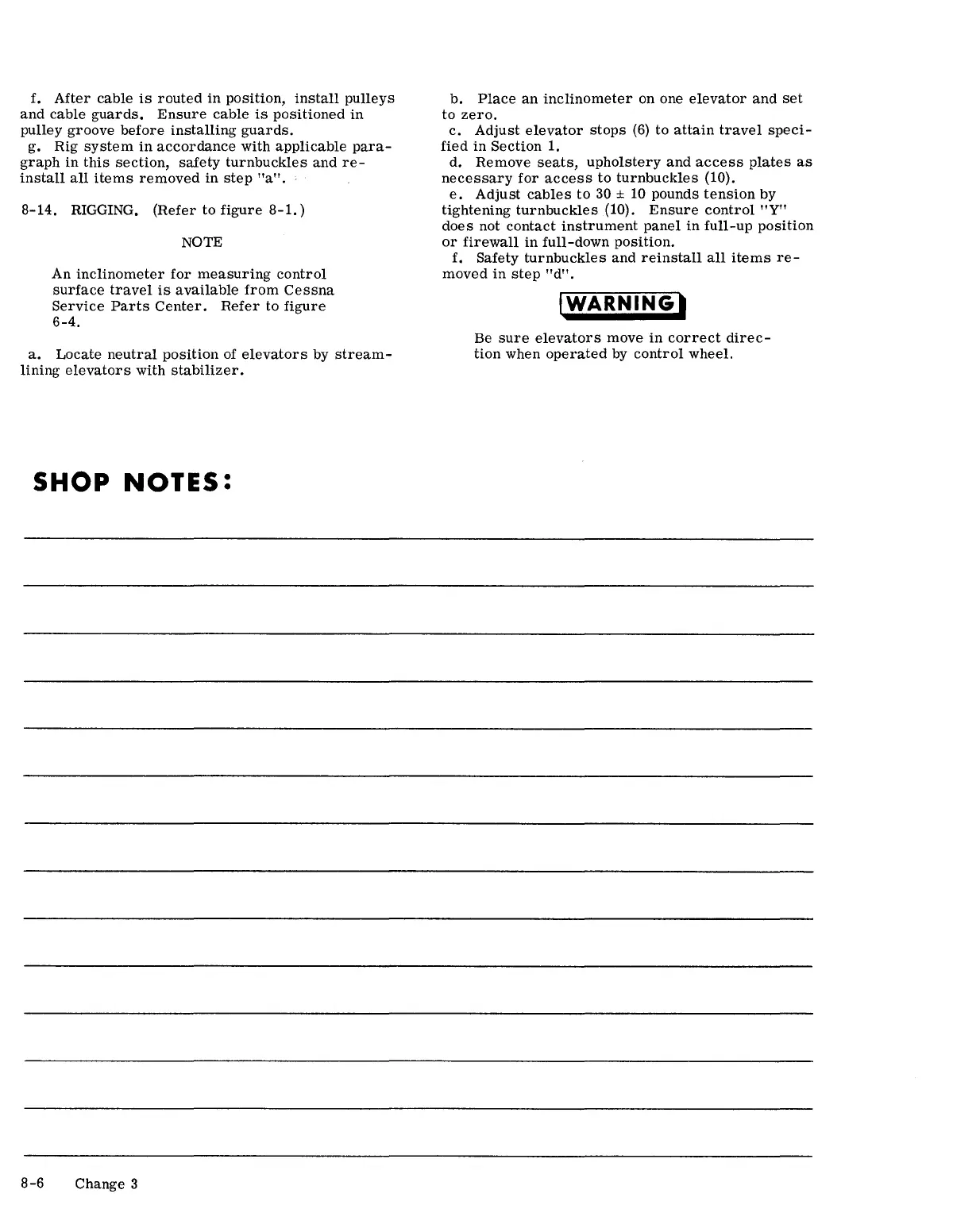

f. After cable is routed in position, install pulleys
and cable guards. Ensure cable is positioned in
pulley groove before installing guards.
g. Rig system in accordance with applicable para-
graph in this section, safety turnbuckles and re-
install all items removed in step "a".
8-14. RIGGING. (Refer to figure 8-1.)
NOTE
An inclinometer for measuring control
surface travel is available from Cessna
Service Parts Center. Refer to figure
6-4.
a. Locate neutral position of elevators by stream-
lining elevators with stabilizer.
SHOP NOTES:
8-6 Change 3
b. Place an inclinometer on one elevator and set
to zero.
c. Adjust elevator stops (6) to attain travel speci-
fied in Section 1.
d.
Remove seats, upholstery and access plates as
necessary for access to turnbuckles (10).
e. Adjust cables to 30 ± 10 pounds tension by
tightening turnbuckles (10). Ensure control "Y"
does not contact instrument panel in full-up position
or firewall in full-down position.
f. Safety turnbuckles and reinstall all items re-
moved in step "d".
IWARNING'
Be sure elevators move in correct direc-
tion when operated by control wheel.
