1. Pulley
Detail A
2. Cable Guard
3. Fairlead
4. Rudder Cable
5. Clevis
6. Bushing
10-2 Change 3
G
F
DetailG
7. Bellcrank
8. Stop Screw
9. Clip
10. Rudder Bar
11. Left Cable
12. Right Cable
• Safety wire t ravel stop
screws (8) beginning with
aircraft serials 15072569,
F15000759, A15000263,
and FA15000l62
Detail F
o
Dl(SEE SHEET 2)
Detail 0
El(SEE SHEET 2)
Detail E
lCAUTION\
MAINTAIN PROPER CONTROL
CABLE TE NSION.
CABLE TENSION:
REFER TO RIGGING PARAGRAPH IN
THIS SECTION.
REFER TO FIGURE 1-1 FOR TRAVEL.

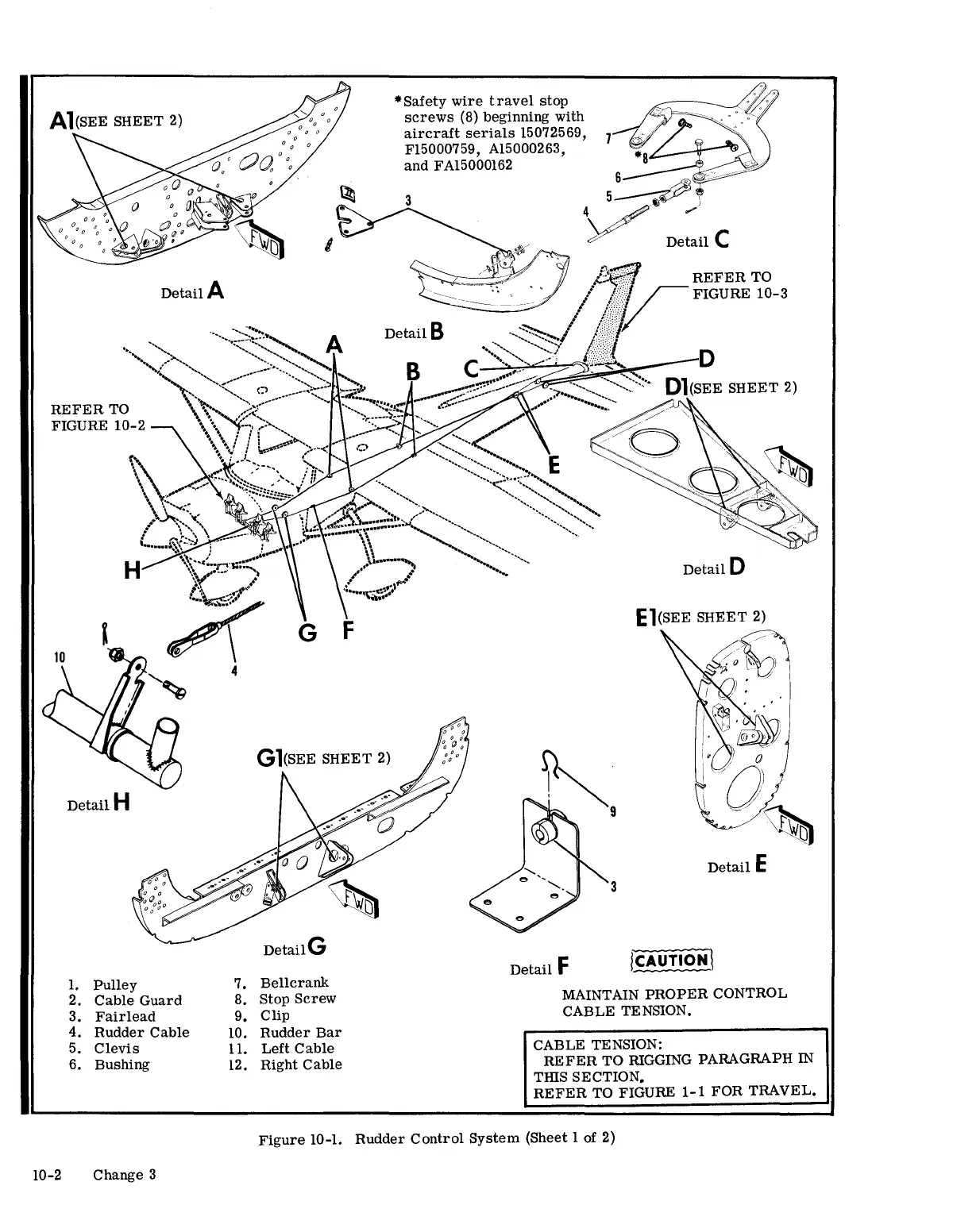

Figure 10-1. Rudder Control System (Sheet 1 of 2)
