6
A-A
(
.
FILLER - 2024-T4 ALCLAD
r--- STRIP - 2024-T3 ALCLAD
1/4" EDGE MARGIN
CLEAN OUT
DAMAGED AREA
~-- PICK UP EXISTING SKIN RIVETS
MS20470AD4 RIVETS
c::=J ORIGINAL PARTS
c=J REPAIR PARTS
_REPAIR PARTS IN CROSS SECTION
A
'---- SKIN

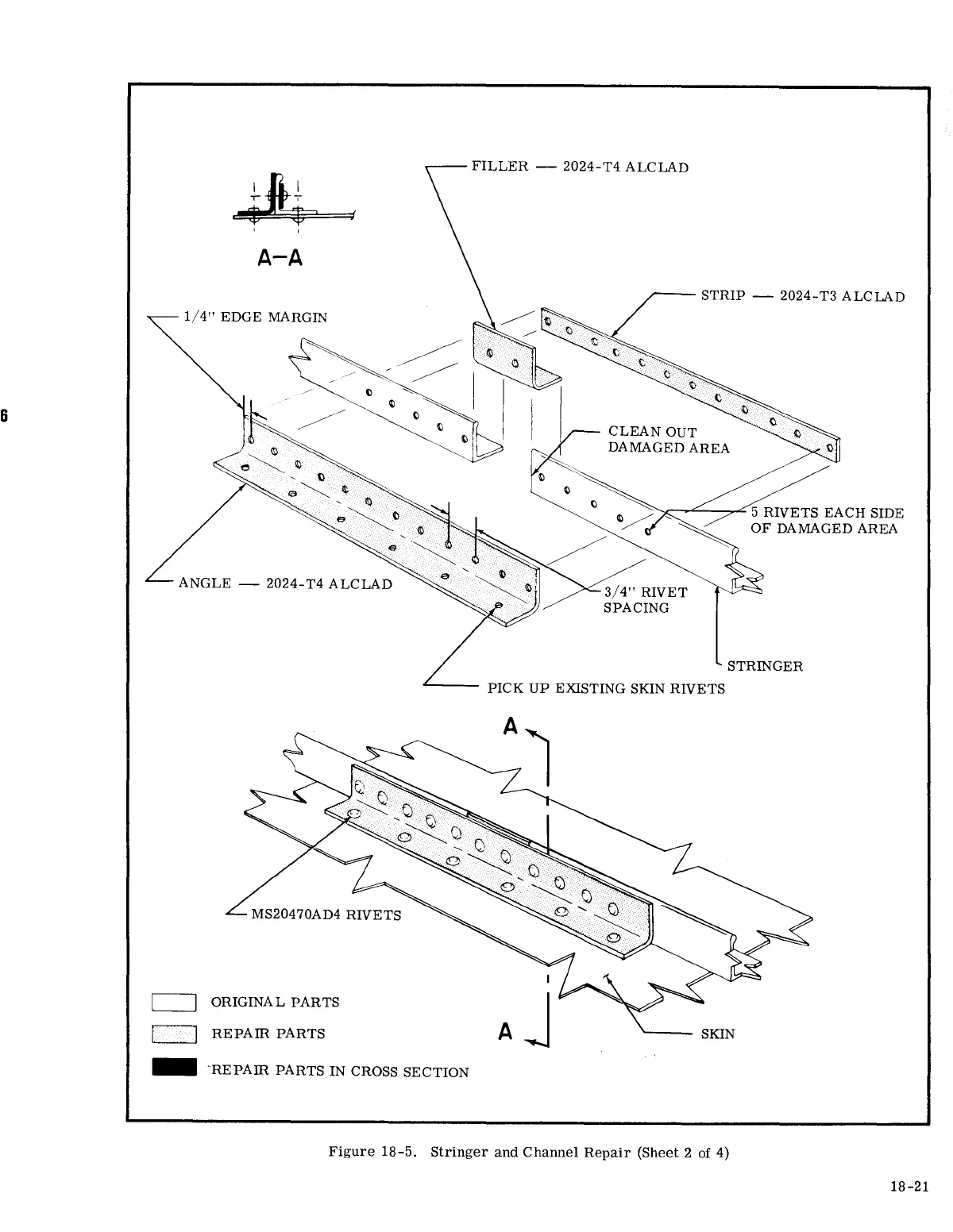

Figure 18-5. Stringer and Channel Repair (Sheet 2 of 4)
18-21
