Cessna 150M - Page 65

2
10
12
Detail A
Detail B
1.
Stabilizer Tip
5.
Nut
10. Upper Right Fairing
2.
Stabilizer
6.
Washer
11.
Upper Left Fairing
3.
Stop Bolt
7.
Fuselage
12.
Elevator Outboard Hinge
4.
Fitting
8.
Screw
13.
Bushing
9.
Bolt

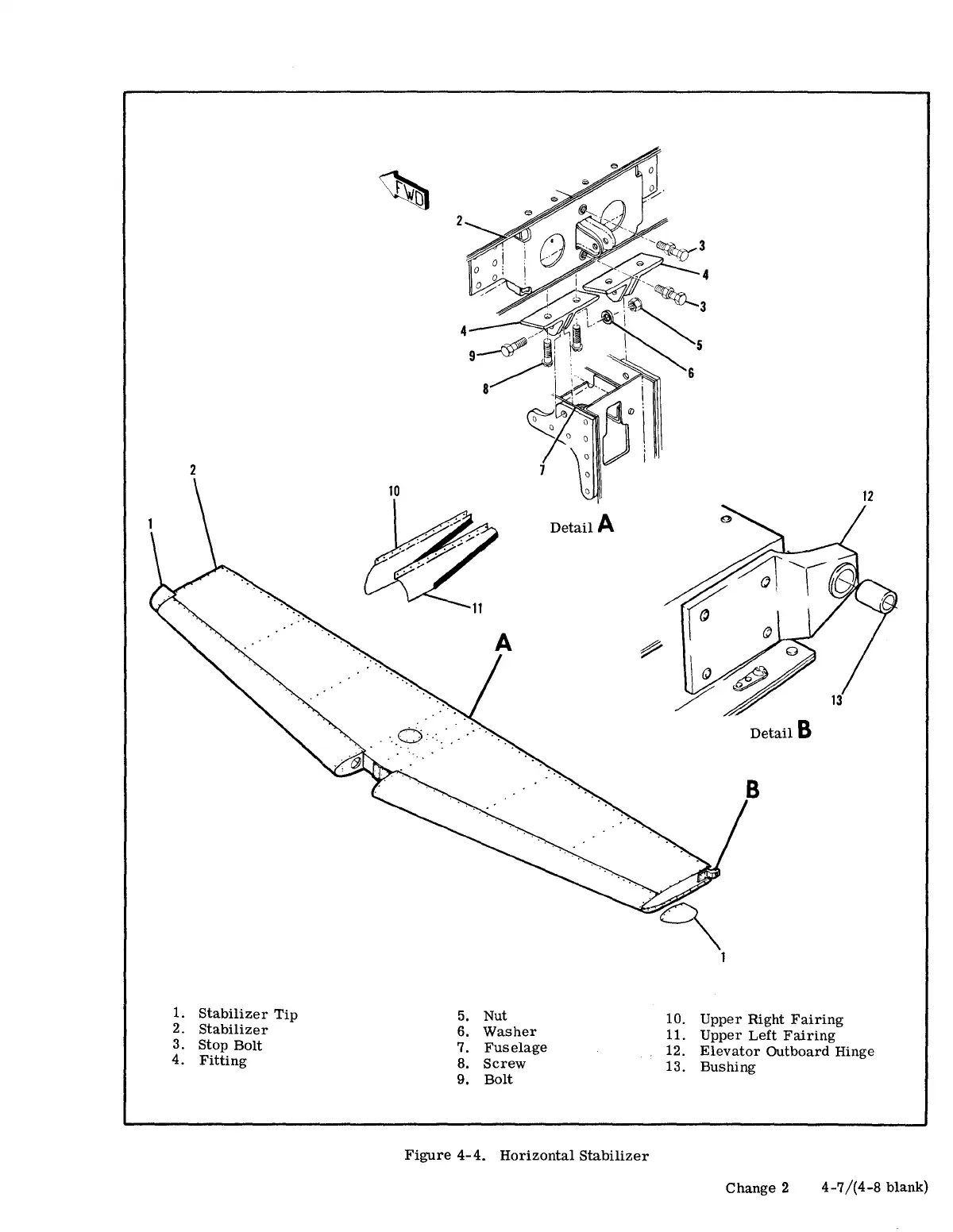

Figure 4-4. Horizontal Stabilizer
Change 2
4-7/(4-8 blank}
