Cessna 150M - Page 95

10~
9~
I
8 I
------
6
I
12
5~
L------1
4-_-1
1-------:
! ¥15
I
I
15070095 THRU 15071813
A15000001 THRU A15000170
I
I 16
$----
I
~17
~18
~19
~ 20
21
22
13
''Y
1. Shaft
I
_J
2. Gasket
3. Bushing
4. Cover Plate L
5. Vented Filler Plug
6. Snap Ring ----
7. Parking Brake Lever
8. Spring
9. Lock Nut
16.
O-Ring
10. Clevis
17. Piston
11. Bolt
18. O-Ring
12. Spacer
19. Spring
13. Snap Ring
20. Snap Ring
14. Bolt and Lockwasher Assembly
21. Spring
15. Thrust Collar
22. Brake Housing
NOTE
With cylinder in a released condition,
adjust clevis (10) to provide an over-
all length of 8. 00 ± . 06 inche s. This
measurement is made from centerline
of hole in mounting boss to centerline
of hole in cleviS.
When installing fitting in cylinder, use
S-1465-1 tape on fitting threads and
tighten fitting to 30-40 lb-in.

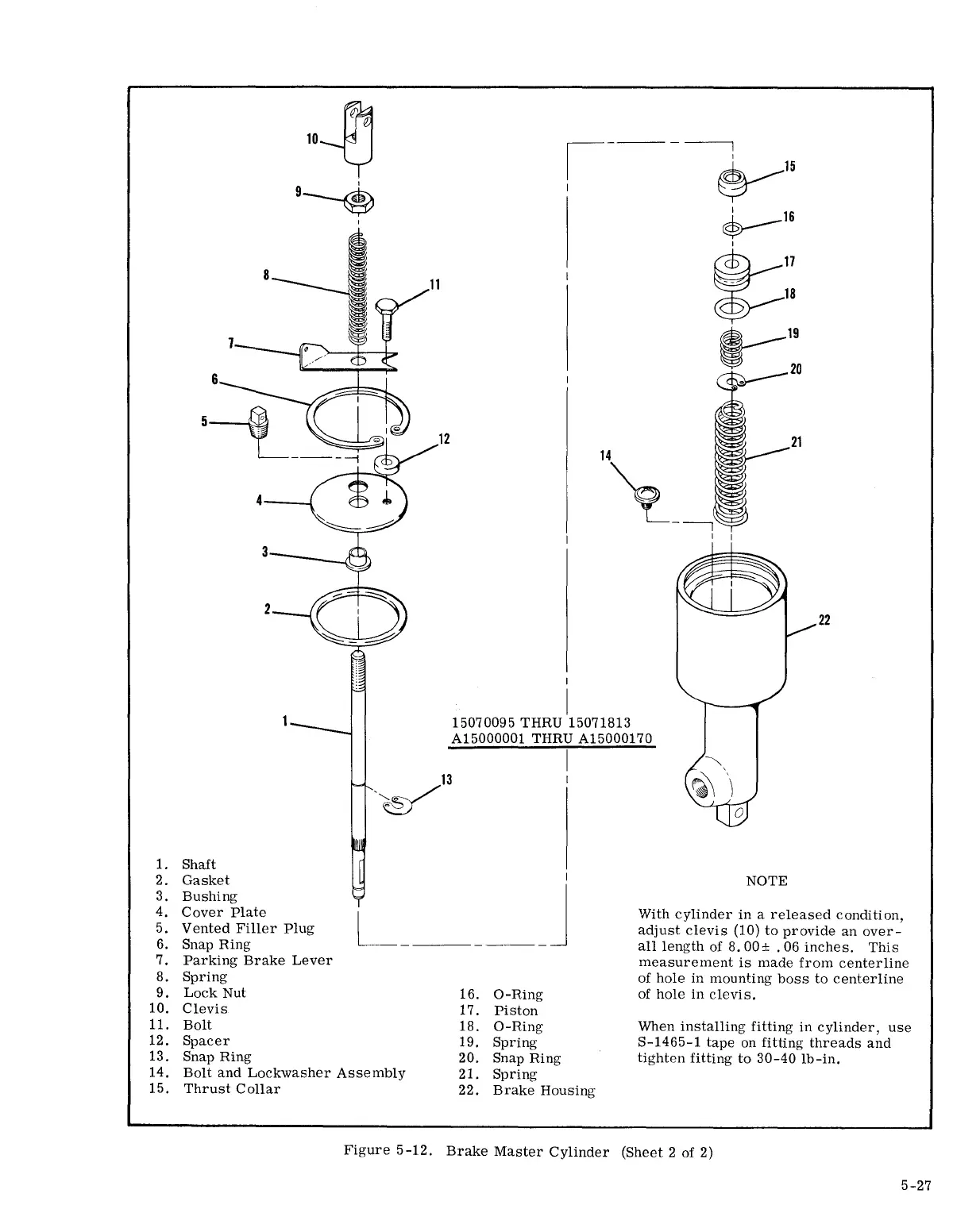

Figure 5-12. Brake Master Cylinder (Sheet 2 of 2)
5-27
