REFER
TO
FIGURE
6-3
2
REFER
TO
FIGURE
6-2
Detail
G
6
4
Detail
A
F
..
~
"O
Detail
F
NOTE
Carry-thru
cable
turnbuckle
may
be
located
at
either
the
right
or
left
aileron
bellcrank.
* BEGINNING WITH
AIRCRAFT
SERIALS 15076621, A1500587,
F15001249 AND
FA1500282.
1.
Right
Direct
Cable
2.
Direct
Cable
Turnbuckle
3.
Carry-Thru
Cable
Turnbuckle
4.
Pulley
Bracket
5.
Bushing
6.
Cable
Guard
7.
Pulley
8.
Clip
9.
Fairlead
10.
Carry-Thru
Cable
11.
Left
Direct
Cable
12.
Spacer
Detail
B
E
I
-'\
''''''
Detail
E
6
NOTE
....
Shaded
pulleys
are
used
in
this
system
only.
I~~UTIQN\
6
MAINT AIN
PROPER
CONTROL
CABLE
TENSION.
CABLE
TENSION:
40
LBS ±
10
LBS ON
AILERON
CARRY-
THRU CABLE (AT AVERAGE
TEMPER-
ATURE
FOR
THE
AREA.)
REFER
TO
FIGURE
1-1
FOR
TRAVEL.

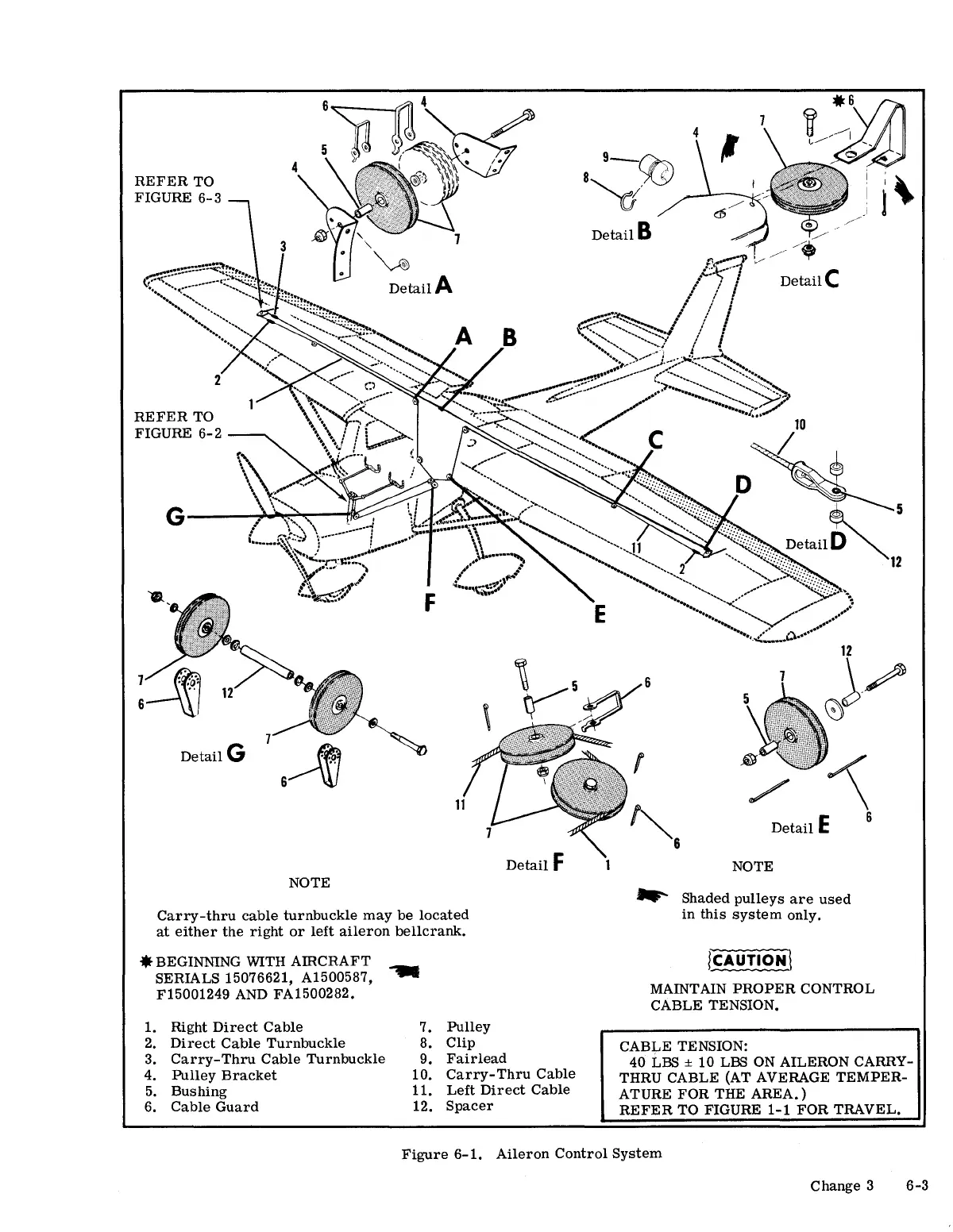

Figure
6-1.
Aileron
Control
System
Change
3
6-3
