Cisco ASR 1013 Hardware Installation Guide

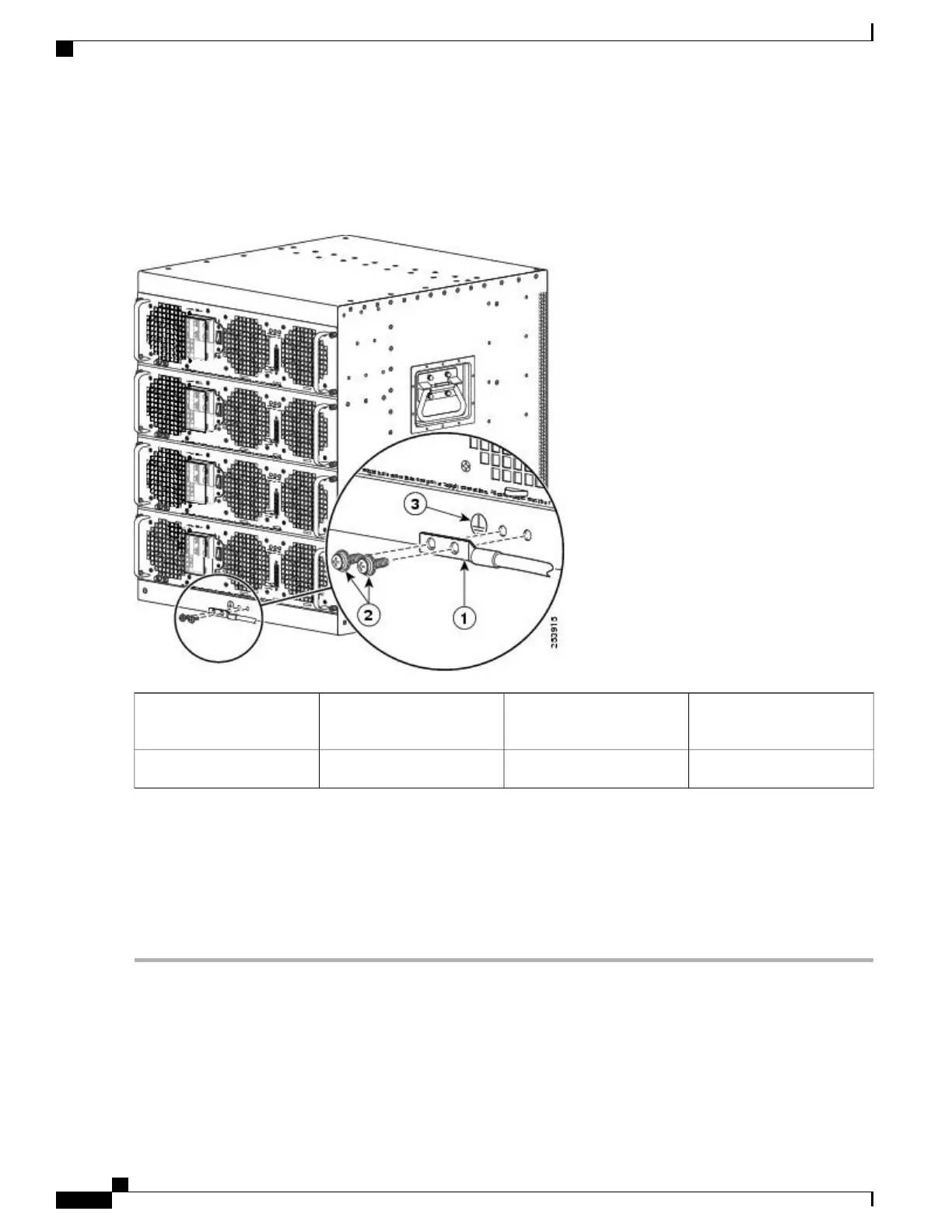

The following image shows how to attach the ground lug on the Cisco ASR 1013 Router.
Figure 186: Attaching the Cisco ASR 1013 Router Ground Connection
Ground symbol3Chassis ground studs and
lead wire
1
——
Grounding screws2
Step 6
Insert the two screws through the holes in the grounding lug as shown in Figure 186: Attaching the Cisco ASR 1013
Router Ground Connection, on page 390.
Step 7
Use the Number 2 Phillips screwdriver to carefully tighten the screws until the grounding lug is held firmly to the chassis.
Do not overtighten the screws.
Step 8
Connect the opposite end of the grounding wire to the appropriate grounding point at your site to ensure an adequate
chassis ground.
What to Do Next
This completes the procedure for attaching a chassis ground connection. Go to the following cabling sections
for information on attaching cables.
Cisco ASR 1000 Series Router Hardware Installation Guide
390
