Citizen CL-S400DT Technical Manual

Chapter 1 Specifications
1-4. Adjustable Sensor
1-9 CL-S400DT
1-4. Adjustable Sensor
Adjustable sensor consists of two media sensors; the upper sensor (transparent sensor) and the
bottom sensor (reflective sensor).
To use the adjustable sensor as “Transparent Sensor”, both upper sensor (transparent sensor) and
bottom sensor (reflective sensor) are used by aligning their position.
Meanwhile, to use it as “Reflective Sensor”, the bottom sensor (reflective sensor) alone is used by
aligning it with a black mark on the back of media.
By factory default, the adjustable sensor position is set to 59mm (2.32") from the paper guides at
the left.
For details about the media sensors, refer to "2-1-3 Media Detection Mechanism".

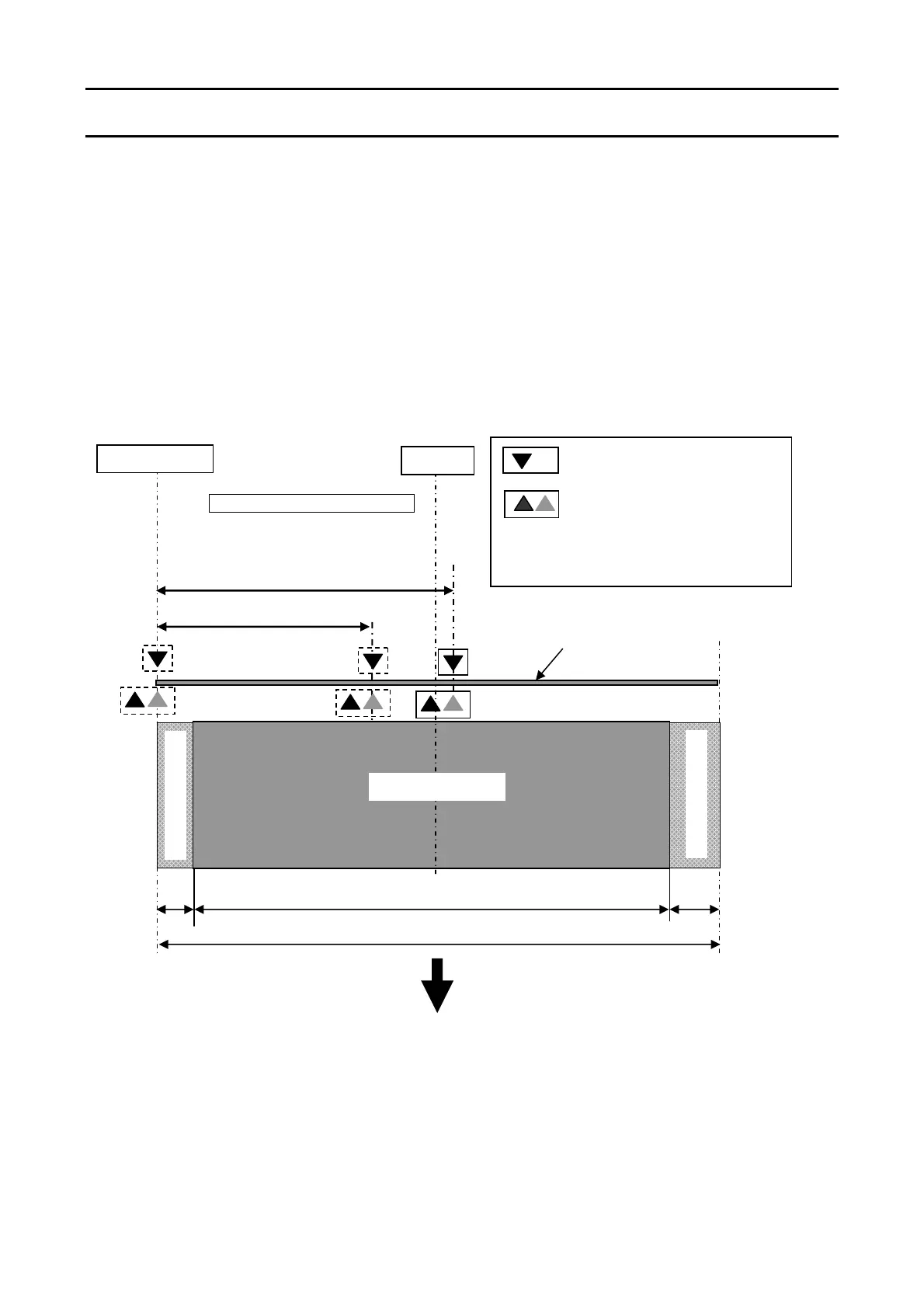

Moveable range of sensors
Upper sensor:
1.2 to 58.2 mm (0.05 to 2.29")
Lower sensor:
2 to 59 mm (0.05 to 2.32")
59 mm (2.32")
(Factory default)
T
: Upper sensor
(Phototransistor)
S
: Lower sensor
(Photodetector)
S
: Lower sensor
(Light emitter)
Maximum media width: 118 mm (4.65")
104.0 mm
(
4.09"
)
11.5 mm
(0.45")
Media guides
Direction of media feed
2.5 mm
(
0.10"
)
Unprintable area
Unprintable area
Center
Printable area
Media

Citizen CL-S400DT Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum printing width	104.1 mm
Ethernet LAN	No
RS-232 interface	Yes
Optional connectivity	Ethernet, Parallel
USB 2.0 ports quantity	1
Flash memory	8 MB
Internal memory	16 MB
Power requirements	110 - 220 V, 50/60 Hz
Core diameter	25 mm
Media thickness	0.0635 - 0.254 mm
Maximum label width	118 mm
Maximum media length	812.8 mm
Sustainability certificates	ENERGY STAR
Product color	Black
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	149 mm
Width	206 mm
Height	150 mm
Weight	2680 g
