Citizen CL-S400DT Technical Manual

Chapter 6 Circuit Diagrams
CL-S400DT 6-4

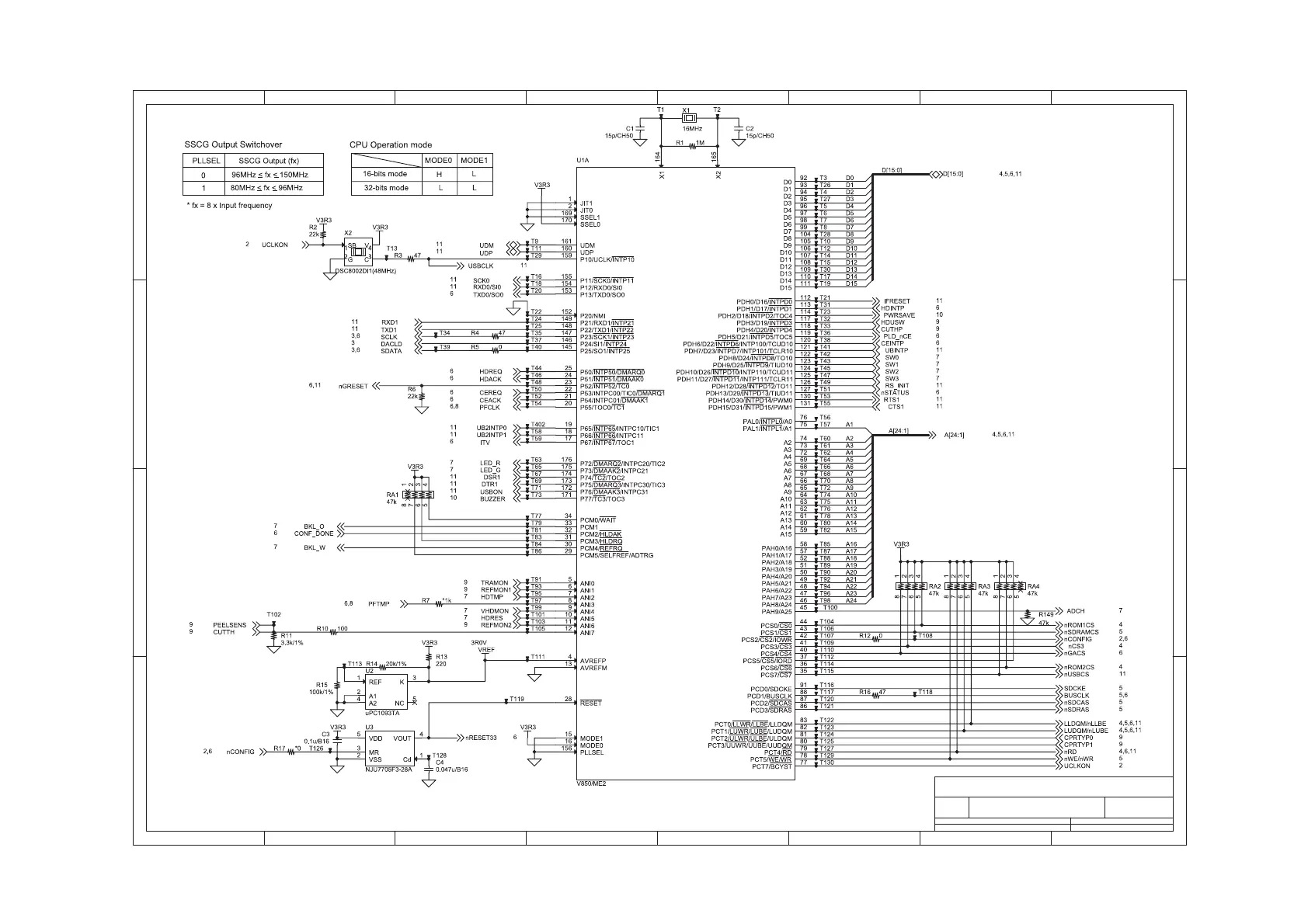

SA Main PCB (1,2/11) [CPU-(1/2)]
MAIN PCB / CPU(1) (1,2/11)
1 2 3 4 5
6 78
A
B
C
D
8
76
54321
D
C
B
A
Title
Number RevisionSize
A4
Date: Sheet of
File: Drawn By:
A
PPS00001-0
PPS00001-0/PPS00024-0

Citizen CL-S400DT Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum printing width	104.1 mm
Ethernet LAN	No
RS-232 interface	Yes
Optional connectivity	Ethernet, Parallel
USB 2.0 ports quantity	1
Flash memory	8 MB
Internal memory	16 MB
Power requirements	110 - 220 V, 50/60 Hz
Core diameter	25 mm
Media thickness	0.0635 - 0.254 mm
Maximum label width	118 mm
Maximum media length	812.8 mm
Sustainability certificates	ENERGY STAR
Product color	Black
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	149 mm
Width	206 mm
Height	150 mm
Weight	2680 g
