Citizen CL-S400DT Technical Manual

Chapter 2 Operating Principles
2-1. Operation of Each Mechanism
2-5 CL-S400DT
Part name Description
SA Power Supply Converts AC to DC24 V and feeds it to the “SA Main PCB”.
SA LCD PCB Consists of LCD, LED and switches for operation.

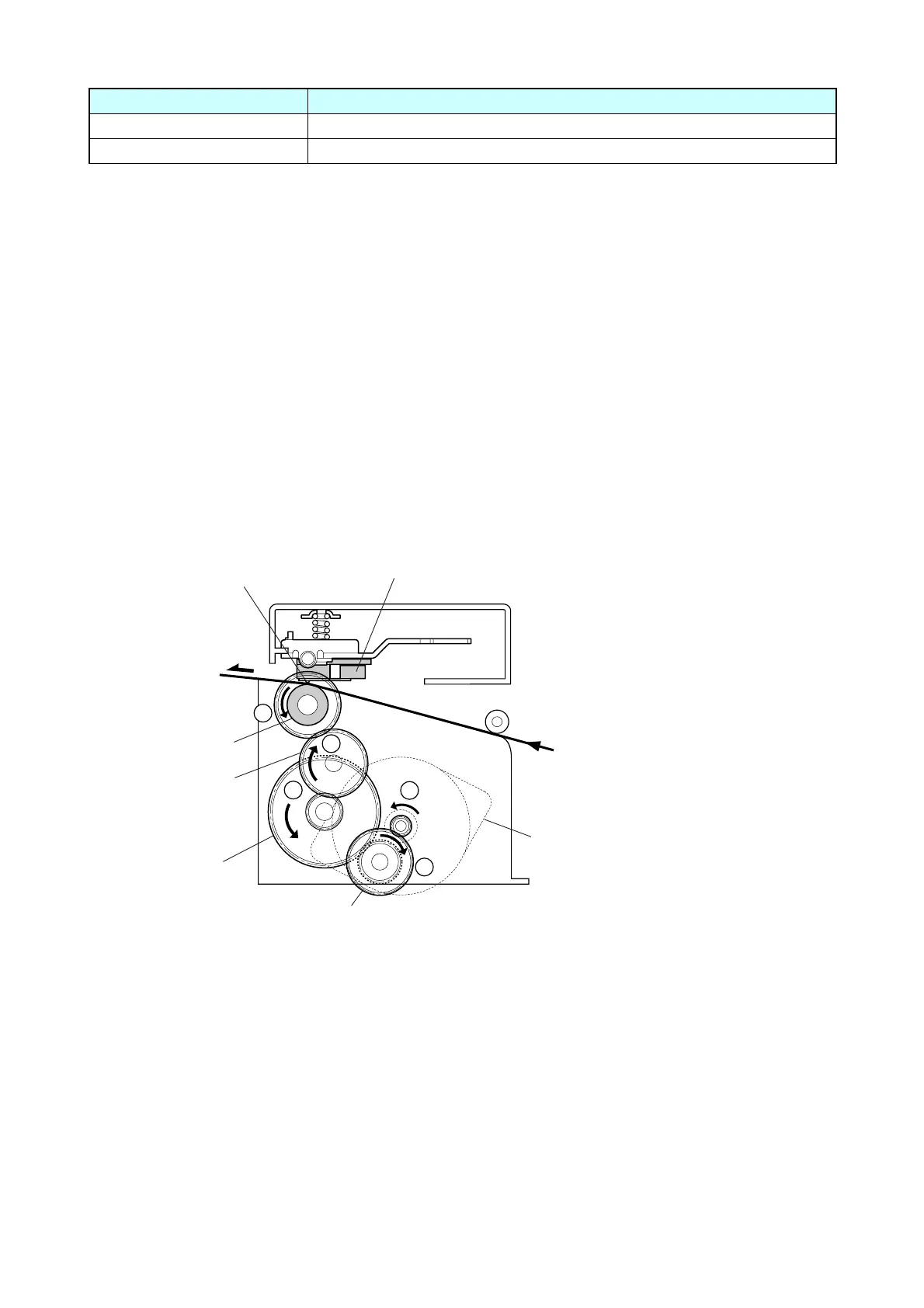

2-1-2. Media Feed Mechanism
The major components of the media feed mechanism are:
(a) Unit, Motor
(b) SA2 Platen
(c) Gear Train (Gear Reduction 1, Gear Reduction 2, Gear Idle)
By closing the cover, media is pushed against the “SA2 Platen”.
As the “Unit, Motor” (stepping motor) turns counterclockwise viewing from the right side of the
printer, the “SA2 Platen” turns counterclockwise via the gear train (“Gear Reduction 1”, Gear
Reduction 2” and “Gear Idle”) and media is fed forward by the friction force produced between the
“SA2 Platen” and the “SA2 Head”.
When the “Unit, Motor” turns clockwise, media is fed backwards.
One step of the “Unit, Motor” feeds media by 1/16 mm (0.0025").
1
2
3
4
5
Gear Reduction 1
Gear Reduction 2
Gear Idle
SA2 Platen
Unit, Motor
SA2 Head
Media
Thermal elements

Citizen CL-S400DT Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum printing width	104.1 mm
Ethernet LAN	No
RS-232 interface	Yes
Optional connectivity	Ethernet, Parallel
USB 2.0 ports quantity	1
Flash memory	8 MB
Internal memory	16 MB
Power requirements	110 - 220 V, 50/60 Hz
Core diameter	25 mm
Media thickness	0.0635 - 0.254 mm
Maximum label width	118 mm
Maximum media length	812.8 mm
Sustainability certificates	ENERGY STAR
Product color	Black
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	149 mm
Width	206 mm
Height	150 mm
Weight	2680 g
