Citizen CL-S400DT Technical Manual

Chapter 3 Disassembly and Maintenance
3-6 Disassembly, Reassembly and Lubrication
3-9 CL-S400DT
Cap PH
BH (N), M3x6 (NI)
Holder Paper 127
Cap Paper Holder
Cap Paper Holder
Claw

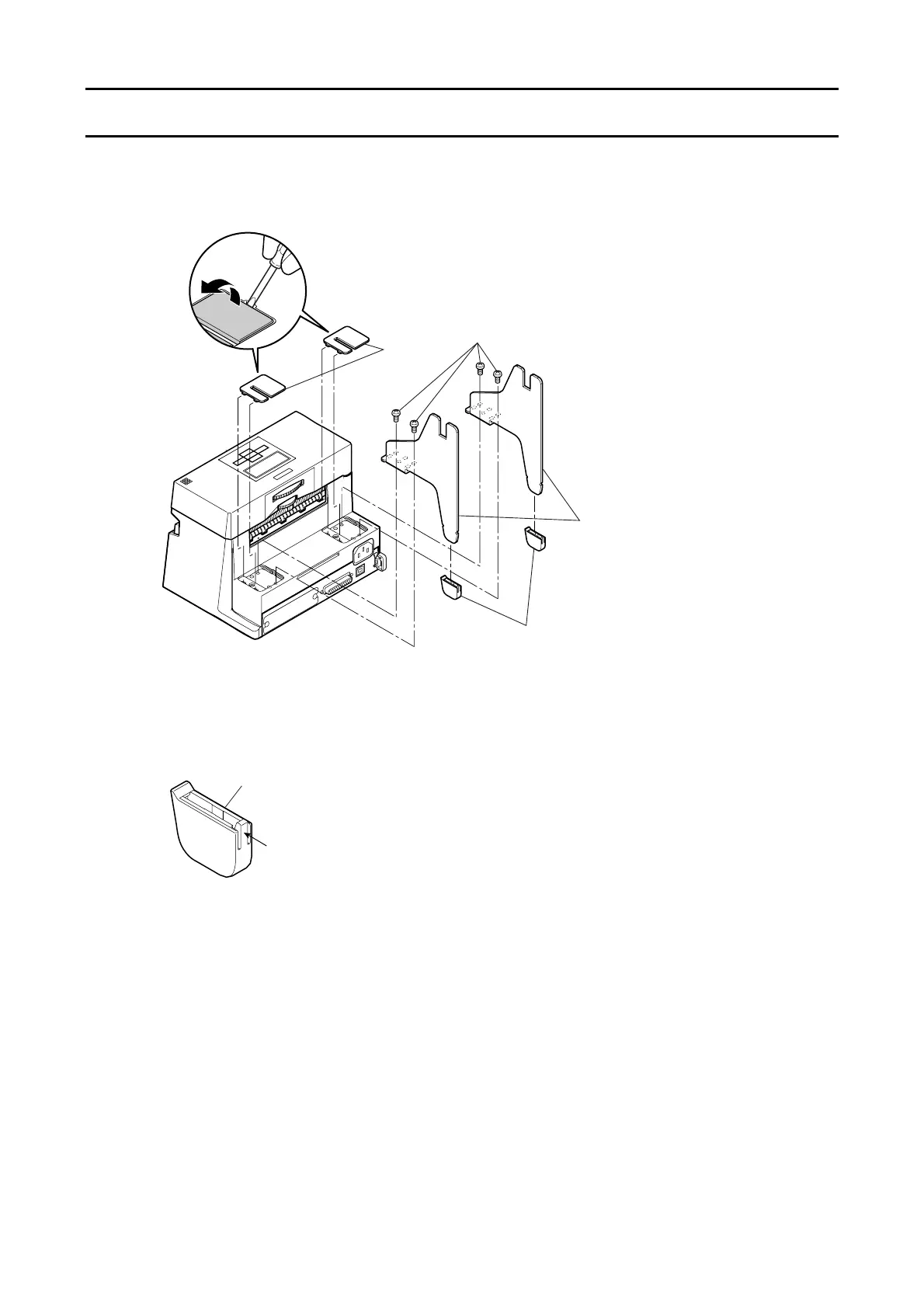

3-6. Disassembly, Reassembly and Lubrication
3-6-1. Holder Paper 127
1. Open 2 “Cap PH” with a flat-blade screwdriver to remove them.
2. Remove 4 screws (BH (N), M3x6 (NI)) and detach 2 “Holder Paper 127”.
3. Remove 1 “Cap Paper Holder” from each “Holder Paper 127”.
* Open the claw before removing the “Cap Paper Holder”.
Note on reassembling:
• Assemble the “Holder Paper 127” so that it is aligned with the paper guides of the main body.
Refer to “
3-7-2 “Holder Paper 127” Position Adjustment” for adjustment procedure.

Citizen CL-S400DT Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum printing width	104.1 mm
Ethernet LAN	No
RS-232 interface	Yes
Optional connectivity	Ethernet, Parallel
USB 2.0 ports quantity	1
Flash memory	8 MB
Internal memory	16 MB
Power requirements	110 - 220 V, 50/60 Hz
Core diameter	25 mm
Media thickness	0.0635 - 0.254 mm
Maximum label width	118 mm
Maximum media length	812.8 mm
Sustainability certificates	ENERGY STAR
Product color	Black
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	149 mm
Width	206 mm
Height	150 mm
Weight	2680 g
