Citizen CL-S400DT Technical Manual

Chapter 3 Disassembly and Maintenance
3-5 Quick Detachment of Major Parts
3-7 CL-S400DT
SA2 Head
SA2 Head
SA2 Head (DP)
XX-XXXXX XXX EBZ
XX-XXXXX XXX EBZ
XX-XXXXX XXX EBZ
XX-XXXXX XXX DBE

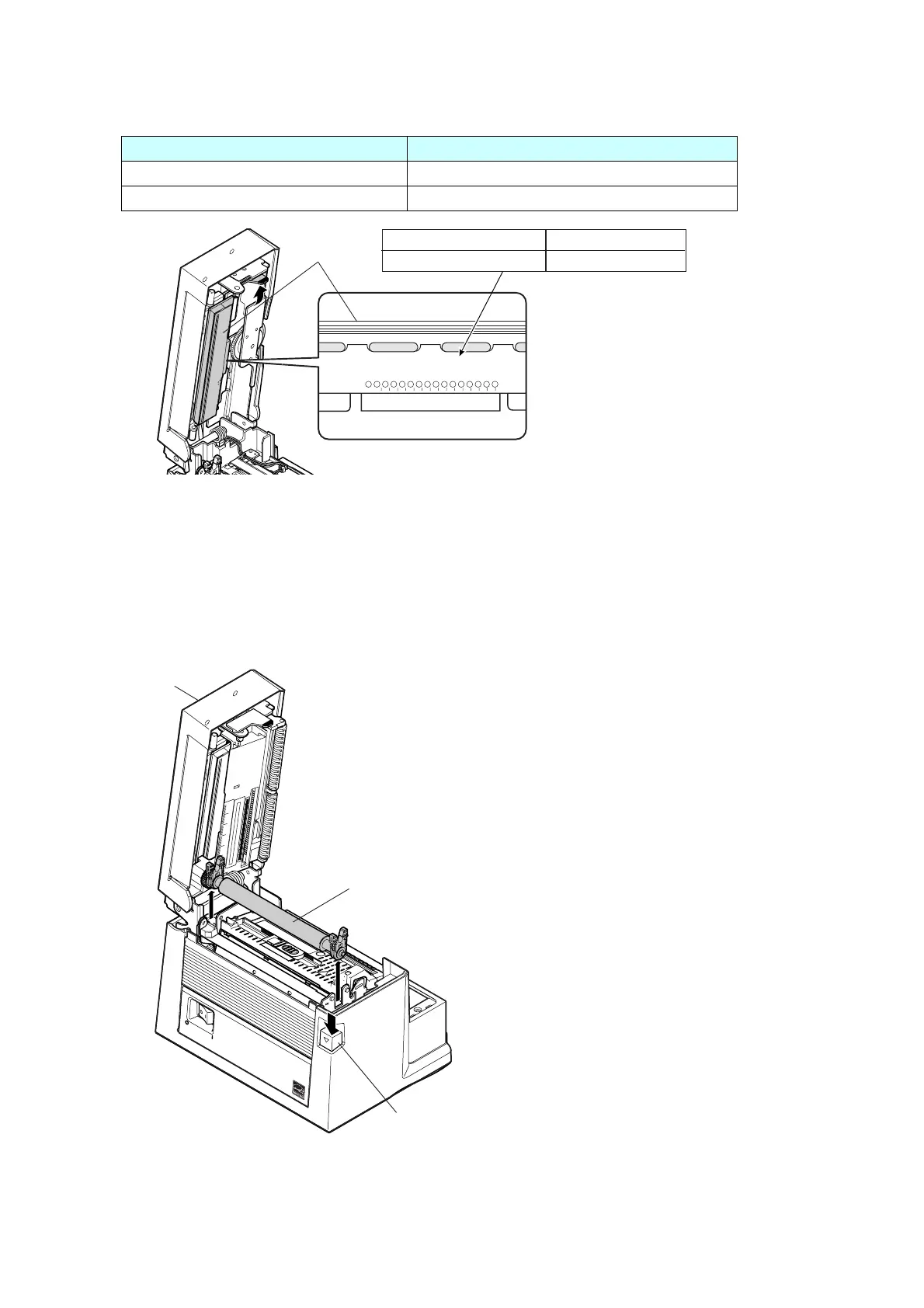

5. There are 2 types of “SA, Head”. When replacing it, read the letters printed on it to identify the
type. Use the same type.
Letters to identify the type Parts name
XX-XXXXX XXX EBZ SA2 Head
XX-XXXXX XXX DBE SA2 Head (DP)
Note on reassembling:
• The “SA2 Cover Frame” has two bosses that allow easy positioning of the “SA2 Head”. When
assembling the “SA2 Head”, be sure that it is securely engaged with the “SA2 Cover Frame”.
3-5-2. SA2 Platen
1. Press down the “Knob Cover Open” and open the “SA Cover”.
2. Pull the “SA2 Platen” upward to remove it.
Note on reassembling:
• After reassembling the “SA2 Platen”, be sure that is correctly assembled.
100V
200V
0
1
2
3
4
5
0
1
2
3
4
5
SA2 Platen
Knob Cover Open
SA Cover

Citizen CL-S400DT Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum printing width	104.1 mm
Ethernet LAN	No
RS-232 interface	Yes
Optional connectivity	Ethernet, Parallel
USB 2.0 ports quantity	1
Flash memory	8 MB
Internal memory	16 MB
Power requirements	110 - 220 V, 50/60 Hz
Core diameter	25 mm
Media thickness	0.0635 - 0.254 mm
Maximum label width	118 mm
Maximum media length	812.8 mm
Sustainability certificates	ENERGY STAR
Product color	Black
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	149 mm
Width	206 mm
Height	150 mm
Weight	2680 g
