Hydraulics QUANTUM TIC
11-40 10/04

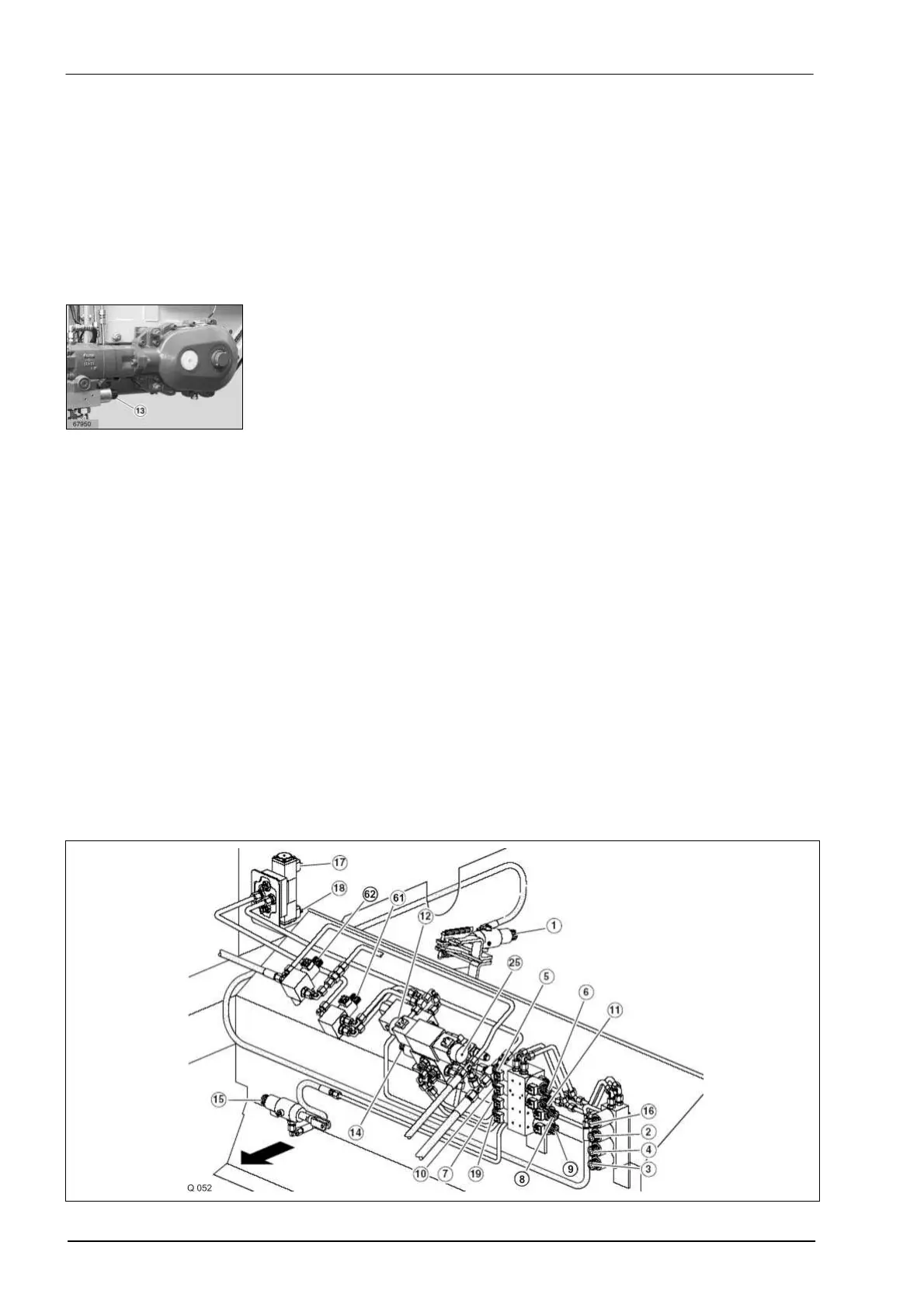

3.1.2 With 2-speed floor
conveyor motor
1
2
3/2 way pick-up drive On solenoid valve
3/2 way pick-up drive Off solenoid valve
3 3/2 way lower pick-up solenoid valve
4 3/2 way raise pick-up solenoid valve
5 3/2 way open knife frame solenoid valve
6 3/2 way close knife frame solenoid valve
7 3/2 way open tailgate solenoid valve
8 3/2 way close tailgate solenoid valve
9 3/2 way tailgate pressureless solenoid valve
10 3/2 way raise articulated drawbar solenoid valve
11 3/2 way lower articulated drawbar solenoid valve
12 4/3 way reverse floor conveyor solenoid valve
13 Eaton 2-speed floor conveyor hydraulic motor 80/160 cm³.
On QUANTUM 6800 P/S: Eaton 2-speed hydraulic motor 95/195 cm³
14 3/2 way master valve solenoid valve
15 3/2 way shredder drums drive solenoid valve
16 3/2 way shredder drums drive Off solenoid valve
17 4/3 way left cross conveyor belt solenoid valve
18 4/3 way right cross conveyor belt solenoid valve
19 3/2 way lock tailgate solenoid valve
25 4/3 way floor conveyor forward proportional solenoid valve
26 Filter
40 3 way flow control valve
41 Hydraulic couplers
42 Hydraulic motor, cross conveyor belt
61 3/2 way cross conveyor belt option solenoid valve
62 3/2 way trailing axle solenoid valve
63 Trailing axle cylinder
64 Non-return valve
E8 Oil pressure switch 150 bar, tailgate open
E9 Oil pressure switch 2 bar, terminal switch-over contact
E10 Oil pressure switch 30 bar, for interior lighting
A Working line
B Working line
P Pump port (feed line)
T Tank port (return line)
