Operation QUANTUM TIC
3-2 10/04
1.0 QUANTUM 2500 K, 2500 P, 3500 K, 3800 K, 3800 P, 3500 S
Caution! When draining oil over a more extended period than usual (tractor –
forage wagon – floor conveyor), the pump system of the tractor must be
known (see “Prior to operation – Hydraulic system”).

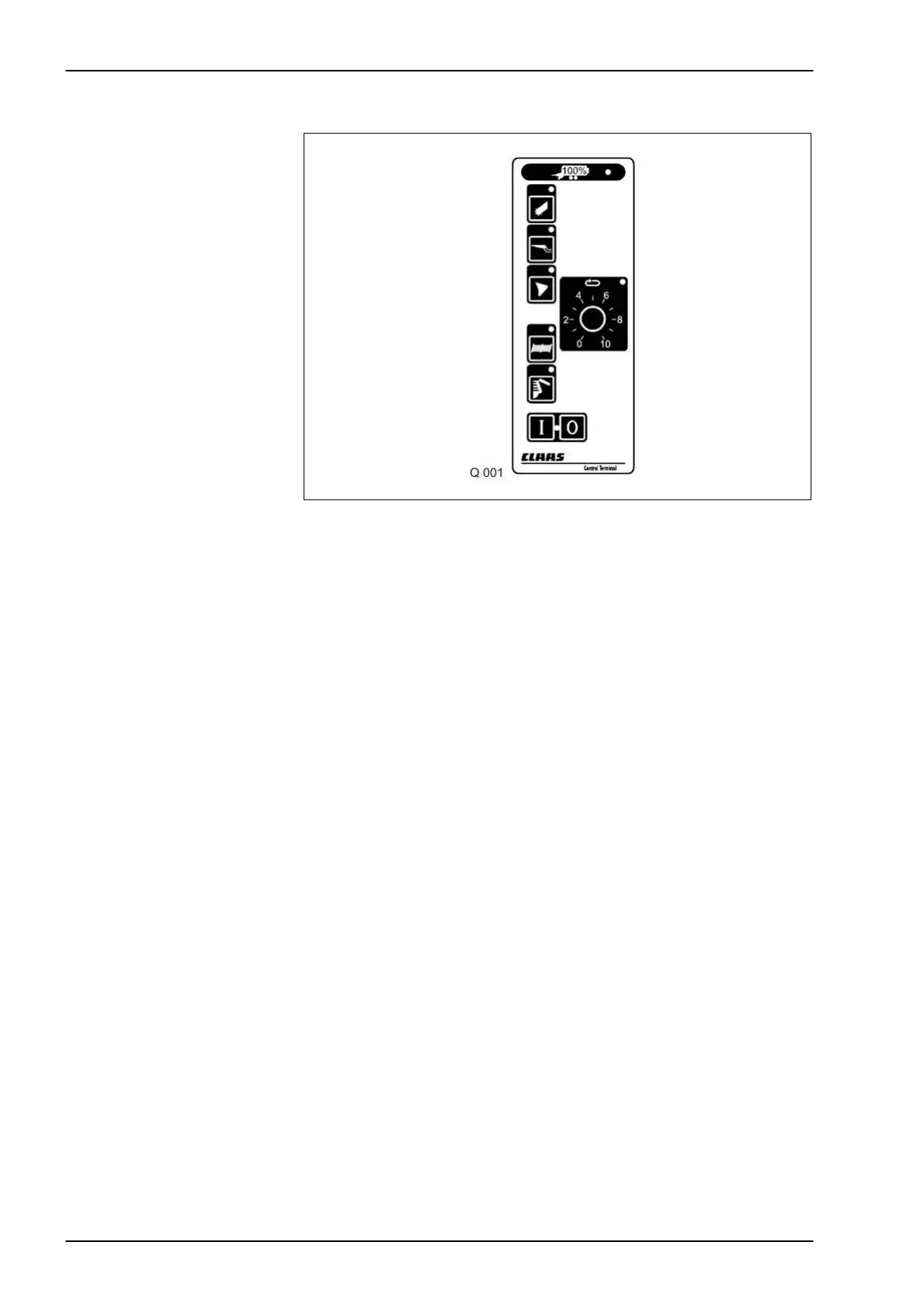

The buttons on the control box are only used to pre-select the different
functions of the forage wagon. Operating the single-acting control valve
on the tractor will activate the desired function.
Between the different operations, the single-acting control valve of the
tractor must be switched back to the neutral position.
Only then a new function can be pre-selected on the control box.
The floor conveyor is controlled using the double-acting control valve on
the tractor.
On the S-wagon, the floor conveyor speed can be varied using the rotary
knob. This knob has no function on the K and P wagons!
