Claas QUANTUM 3500 User Manual

Hydraulics QUANTUM TIC
11-10 10/04

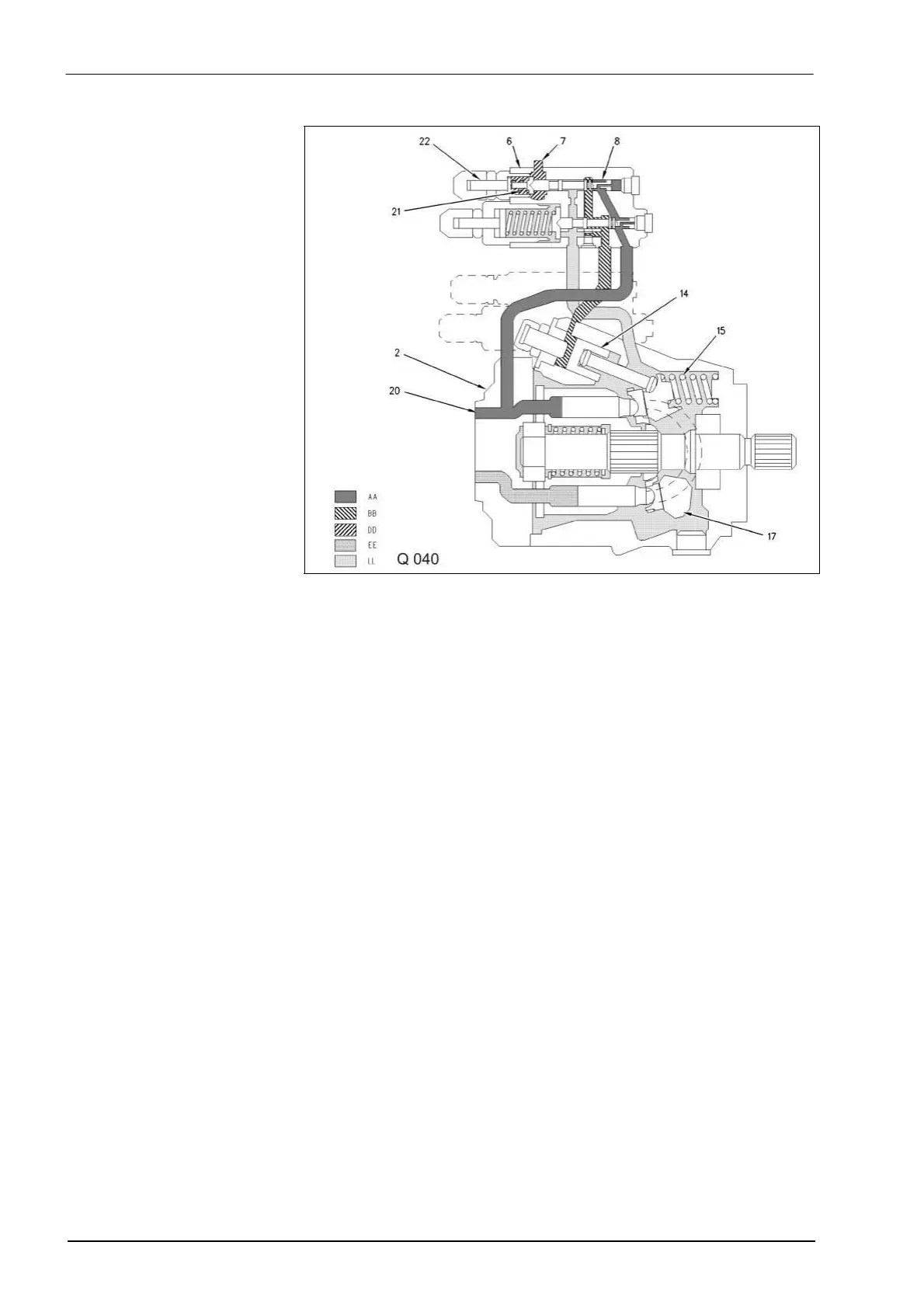

1.4 Constant volume flow
2 Working hydraulics pump (LS pump)
6 Compensating valve
7 Input (load pressure from signal network)
8 Volume flow controller
14 Control ram
15 Control spring
17 Swash plate
20 Pump output (in the bottom plate of the control devices)
21 Compression spring (margin pressure)
22 Adjusting screw
AA Oil supply
BB Pressure-reduced oil
DD Control oil
EE Feed oil from the feed pump
LL Tank (pressureless)
