TIC QUANTUM Hydraulics
10/04 11-103
5.0 QUANTUM 6800

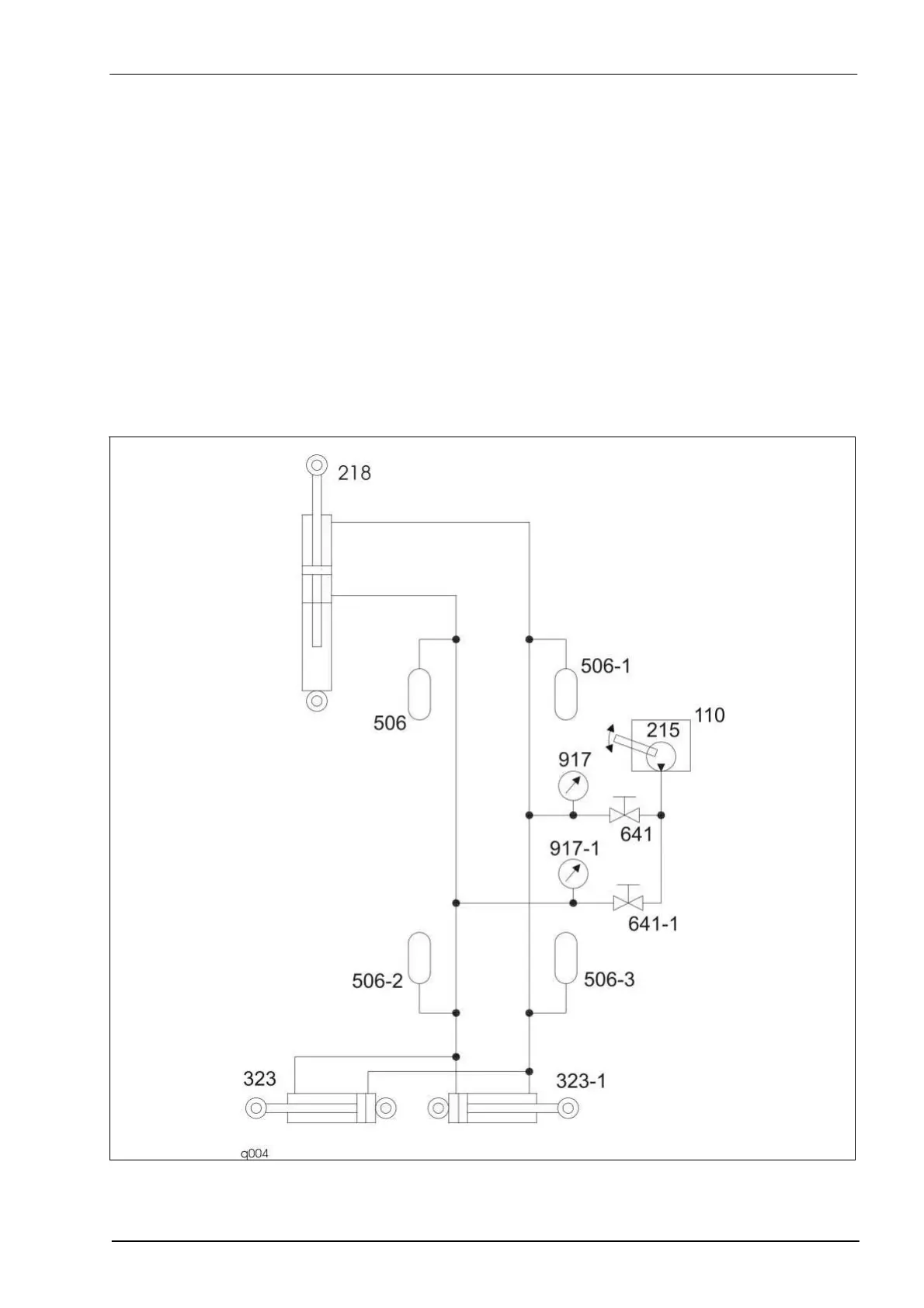

5.1 Forced steering
110 Oil tank
215 Hydraulic pump (hand pump)
218 Steering hydraulics pump
323 Steering hydraulic cylinder
506 Steering accumulator
641 Shut-off valve
917 Steering pressure gauge
5.1.1 Function
Steering When cornering, the steering hydraulics pump (master cylinder) 218 is
guided by force. It supplies steering cylinder 323 with pressurized oil,
depending on the steering direction.
Bleeding and pressurising
the forced steering system
Please refer to the Operator’s Manual for further information on bleeding
and pressurizing the forced steering system.
