Claas QUANTUM 3500 - Adjustments; Diaphragm Cylinder

Brakes QUANTUM TIC
10-22 10/04
2.0 Adjustments
2.1 Diaphragm cylinder

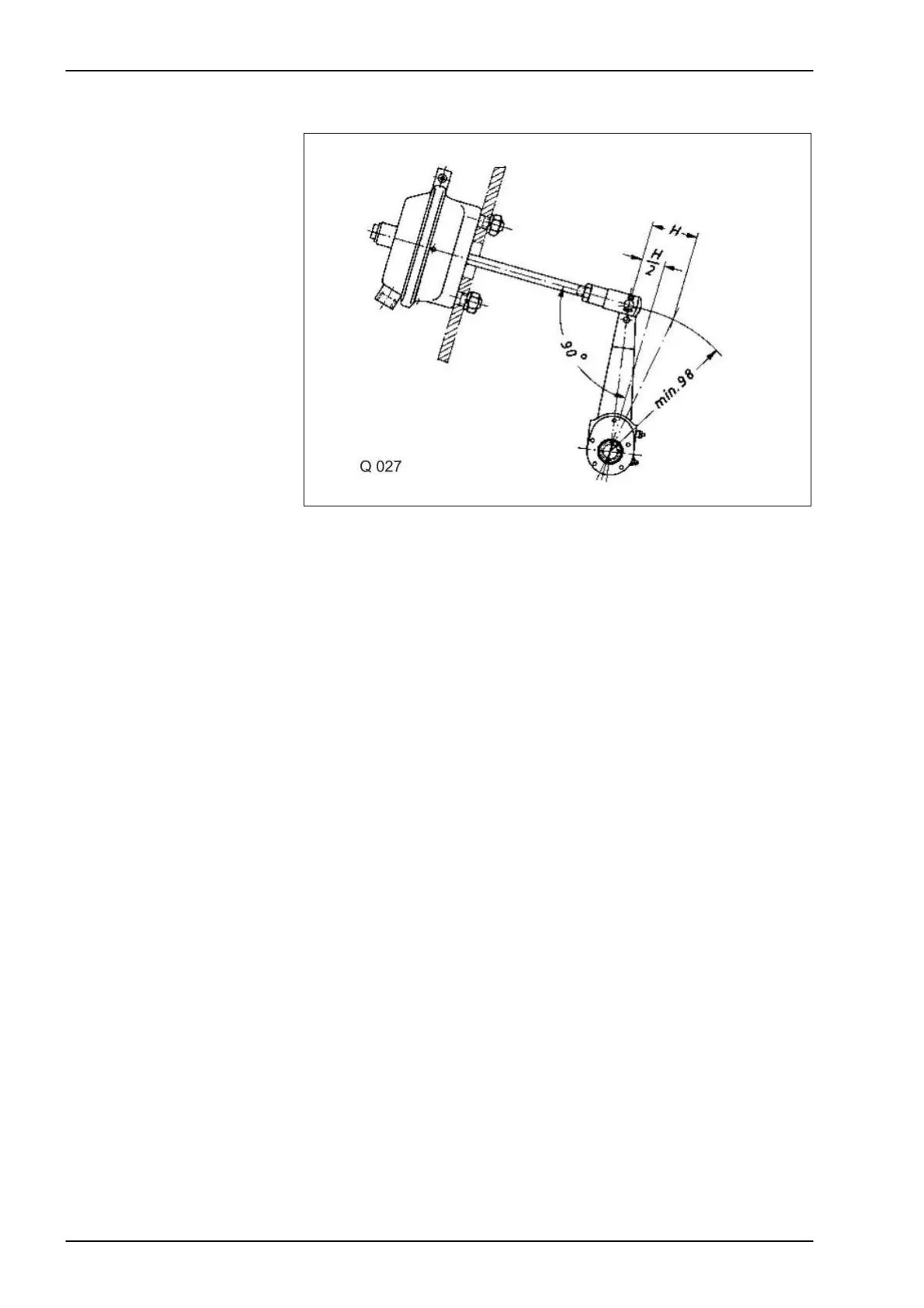

With half a piston stroke (H/2), the piston rod must be placed at right
angles (90°) to the brake lever in order to obtain a good mechanical
efficiency.
When the brake is appropriately adjusted, the piston stroke must not
exceed 1/3 to 1/2 of the overall stroke when fully braking the machine.
