TIC QUANTUM Brakes
10/04 10-25
2.3 Brake-power
regulator (ALD)

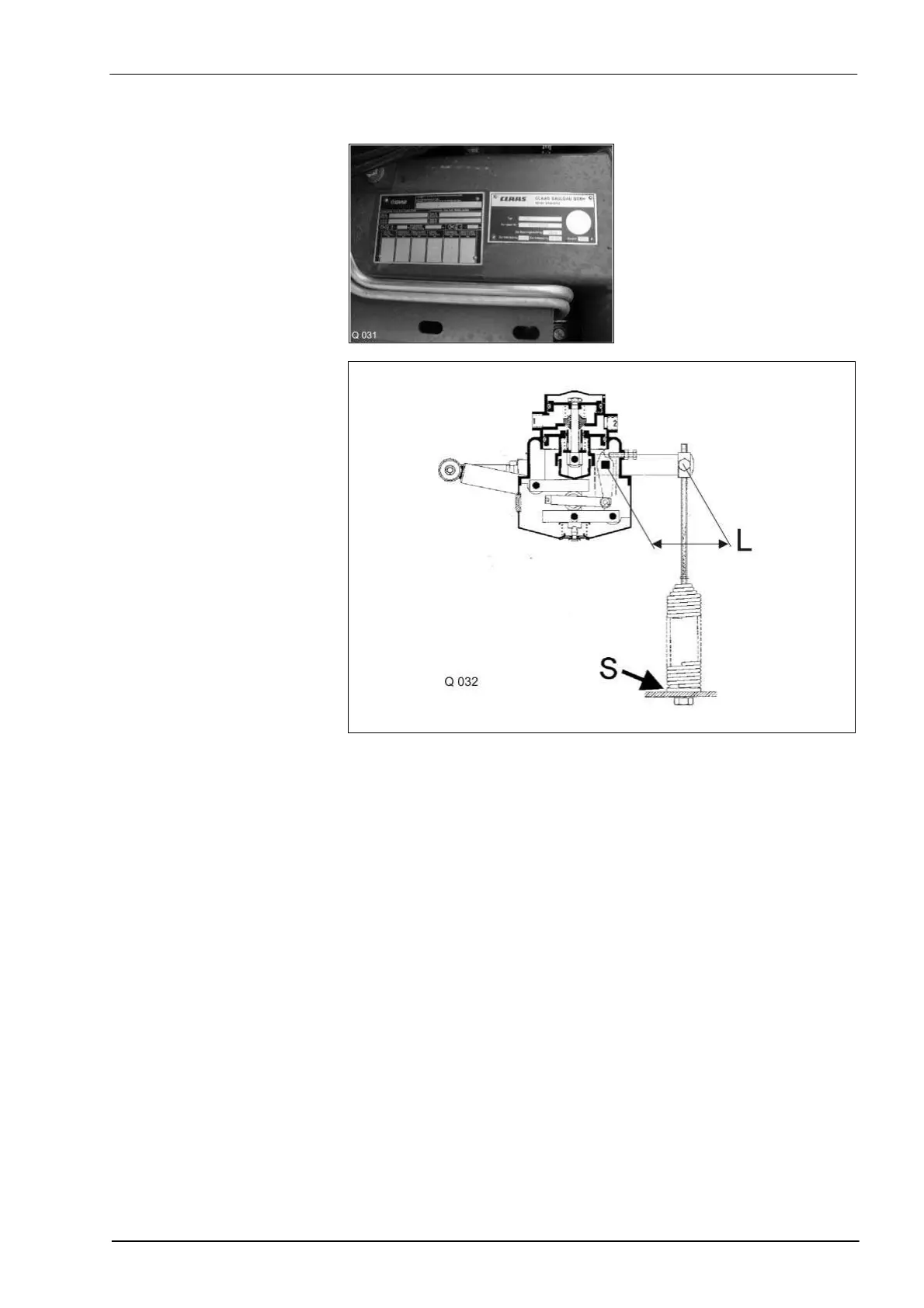

Identification plate (left) for
ALB regulator and air
suspension
The automatic load-dependent brake-power regulator (ALB) has the
function of automatically adjusting the brake pressure applied, depending
on the load condition of the forage wagon.
To compensate setting of the vehicle’s springs, a 5 mm washer (S) has
been placed under the tension spring of the brake cable. When the
vehicle’s spring has set by approx. 5 mm, this washer (S) can be
removed.
The lever length (dimension L, see identification plate of ALB regulator)
has to be adjusted according to the manufacturer’s instructions.
