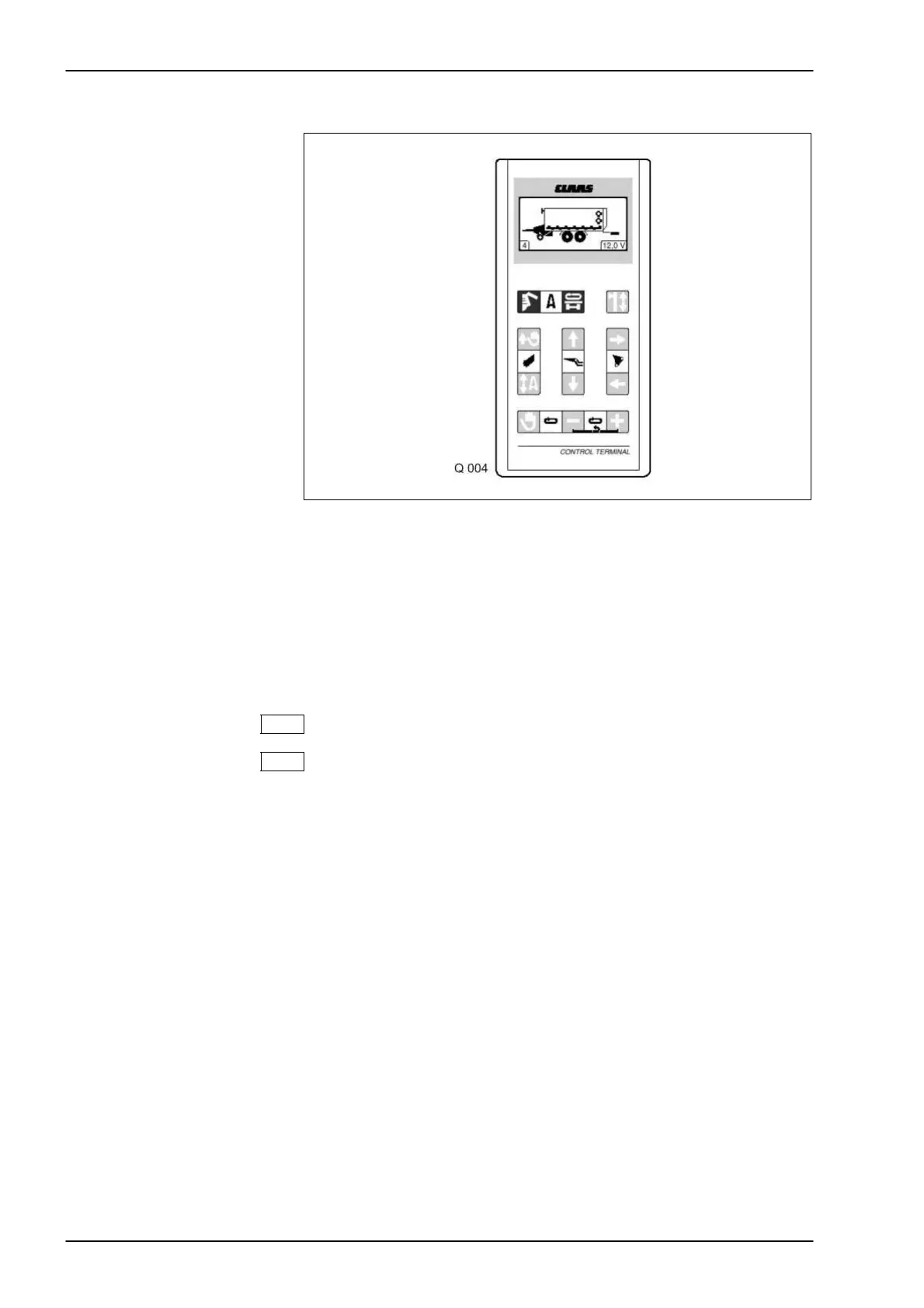

Operation QUANTUM TIC
3-8 10/04
2.0 QUANTUM 4500 S / 5500 S / S-16 / S-18 / 6800 S
Control light (rear wheel)
flashes when steering axle
is locked (reverse travel)
Caution: 1. Electric System
Connect the 2-pole plug with the tractor = on-board voltage to
the distributor box.
2. To switch on the control box, the hydraulic system must be
pressurized = (2 bar switch) on-board voltage from the distributor
box to the control box.
The pump system of the tractor must be known (see chapter “Before
operating the hydraulic system”).
12 V On-board voltage display (10.8 V min., 15.5 V max.)
4 Display of floor conveyor speed
3. Flashing wheel
The axle’s straight position is blocked by means of the cross
conveyor key and a 3/2 way valve = flashing wheel.
QUANTUM with a separate hydraulic connection (single-acting) do not
have this equipment.
