Claas QUANTUM 3500 - Low Pressure Standby

Hydraulics QUANTUM TIC
11-6 10/04

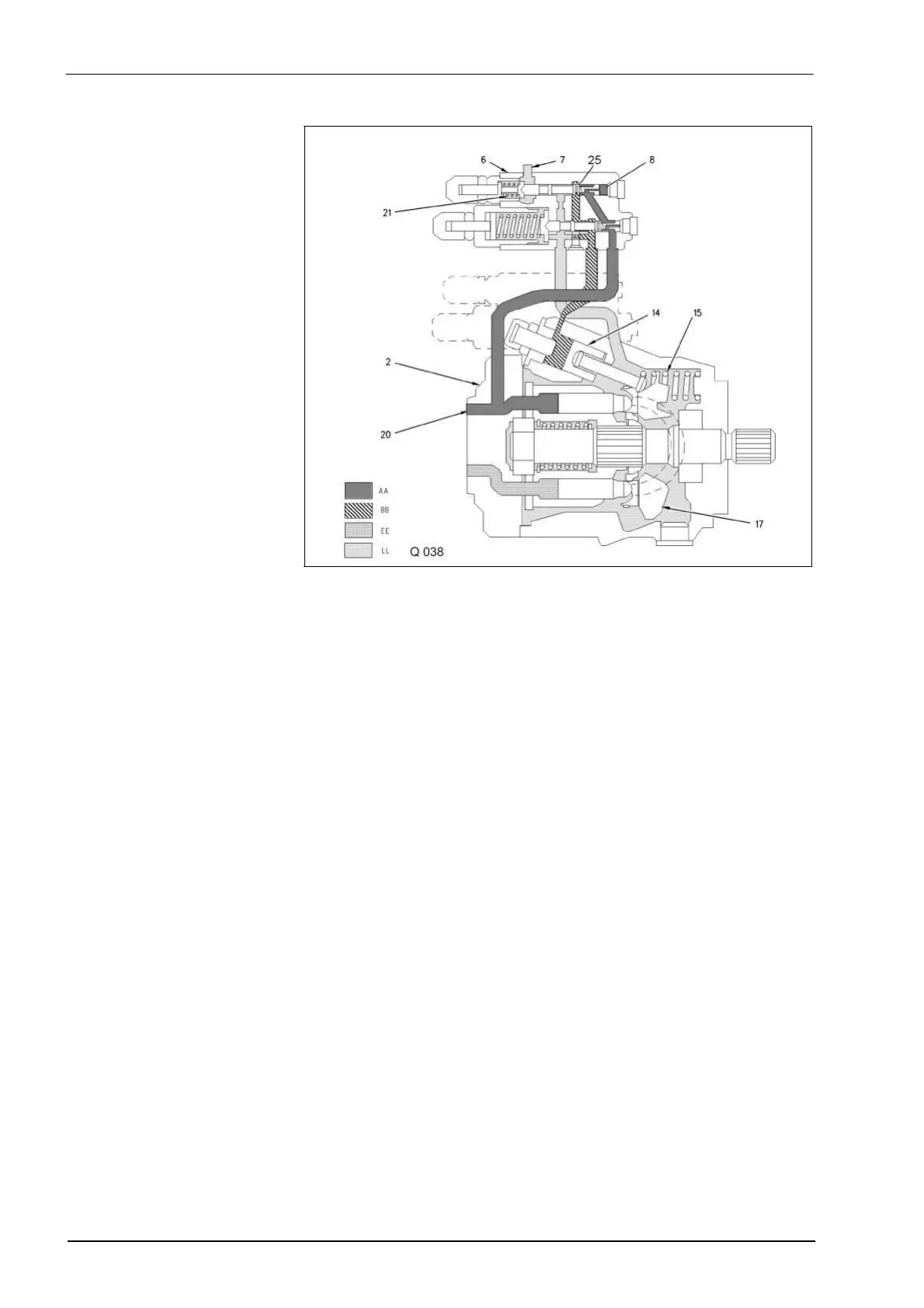

1.2 Low pressure standby
2 Working hydraulics pump (LS pump)
6 Compensating valve
7 Input (load pressure from signal network)
8 Volume flow controller
14 Control ram
15 Control spring
17 Swash plate
18 Ram
19 Pump input
20 Pump output (in the bottom plate of the control devices)
21 Compression spring (margin pressure)
25 Control edge
AA Oil supply
BB Pressure-reduced oil
EE Feed oil from the feed pump
LL Tank (pressureless)
