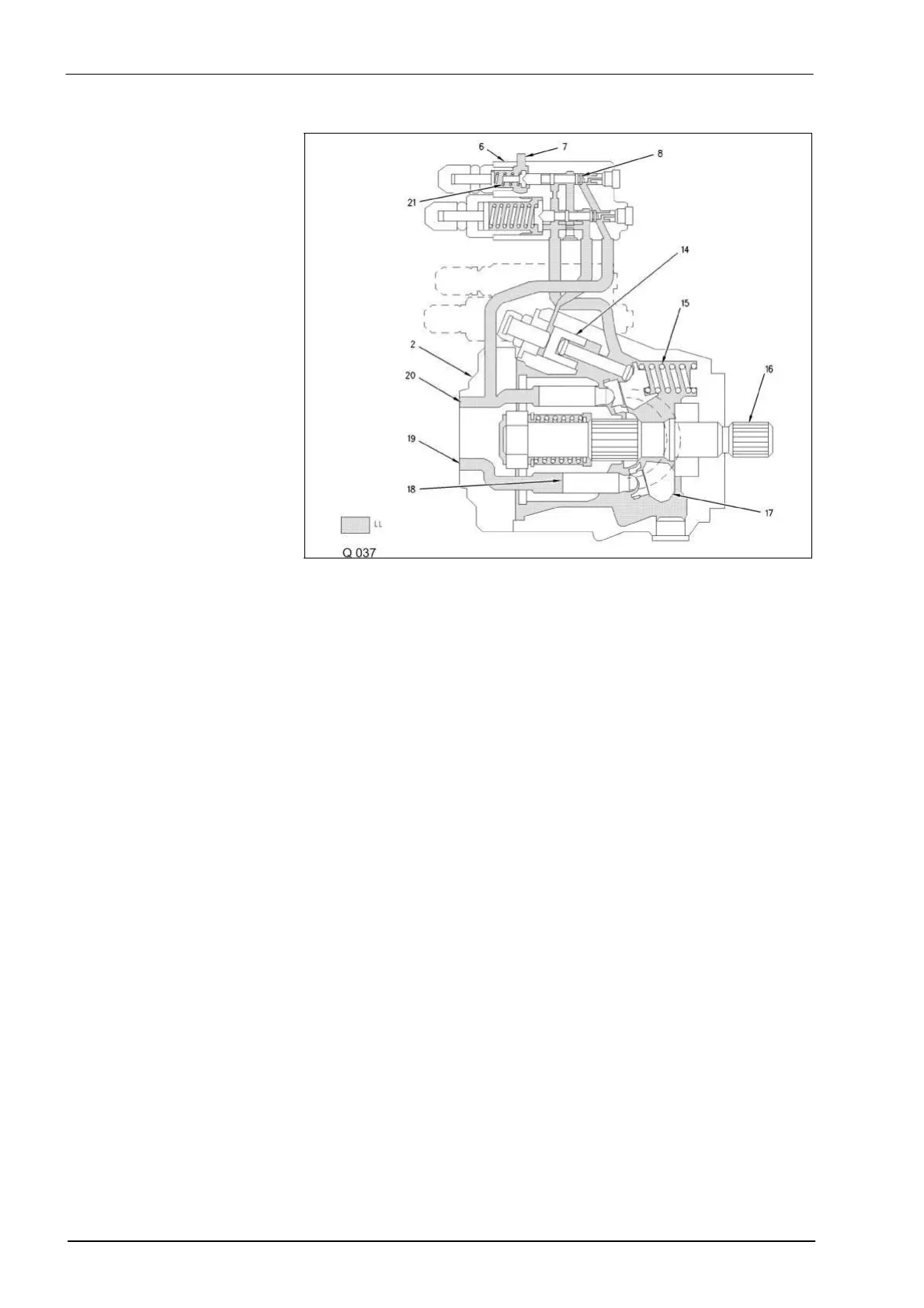

Claas QUANTUM 3500 - Initial Position (Motor Off); LS Pump

Hydraulics QUANTUM TIC
11-4 10/04
1.0 LS pump
1.1 Initial position
(Motor Off)
2 Working hydraulics pump (LS pump)
6 Compensating valve
7 Input (load pressure from signal network)
8 Volume flow controller
14 Control ram
15 Control spring
16 Pump drive
17 Swash plate
18 Ram
19 Pump input
20 Pump output (in the bottom plate of the control devices)
21 Compression spring (margin pressure)
