Hydraulics QUANTUM TIC
11-14 10/04

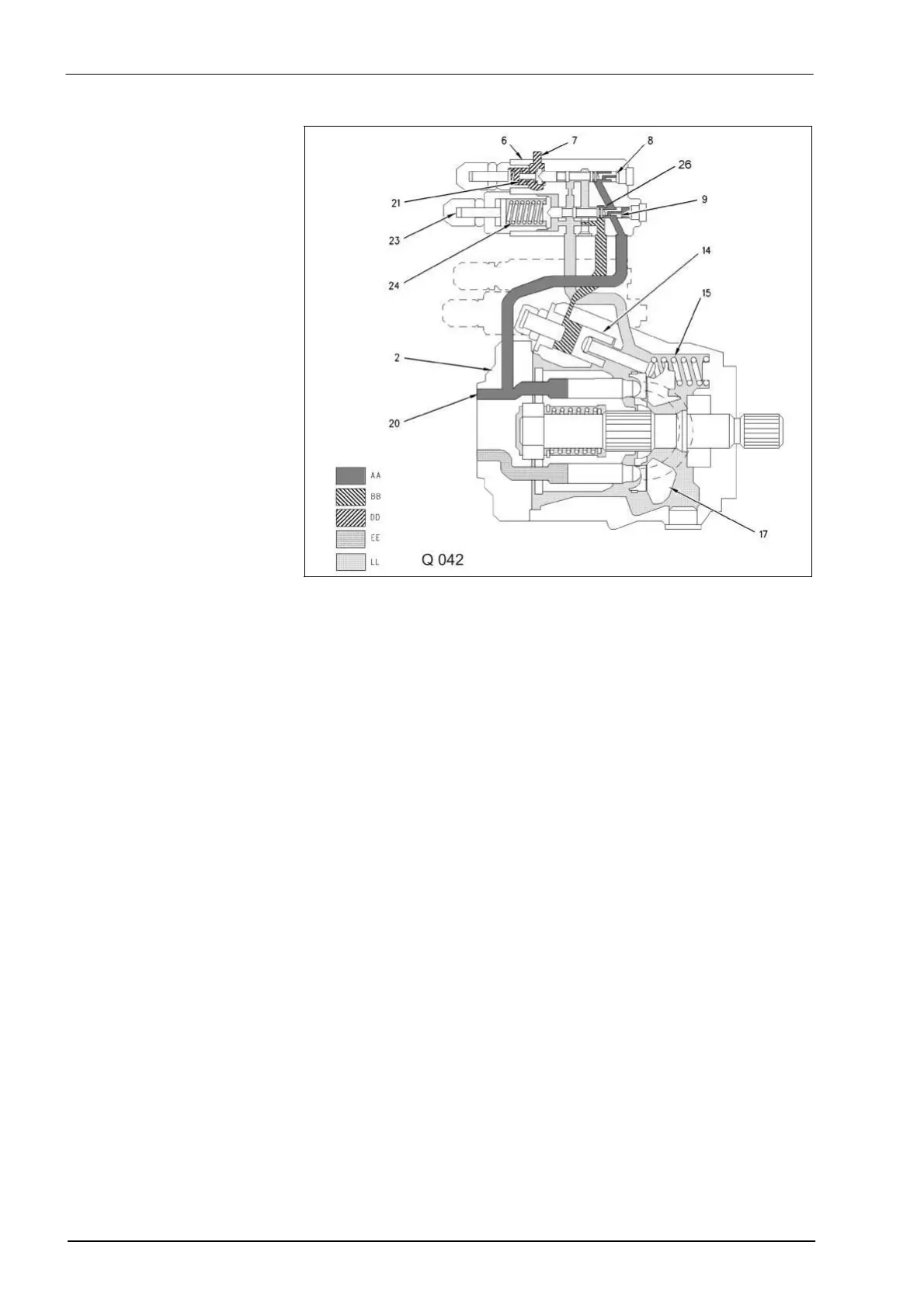

1.6 Maximum pressure limitation (pressure relief valve function)
2 Working hydraulics pump (LS pump)
6 Compensating valve
7 Input (load pressure from signal network)
8 Volume flow controller
9 Pressure controller
14 Control ram
15 Control spring
17 Swash plate
20 Pump output (in the bottom plate of the control devices)
21 Compression spring (margin pressure)
23 Adjusting screw
24 Compression spring
26 Control edge
AA Oil supply
BB Pressure-reduced oil
DD Control oil
EE Feed oil from the feed pump
LL Tank (pressureless)
