2.4 Air suspension
2.4.1 Lifting and lowering
device
Forage wagons with air-suspension axles are equipped with valves for
lifting and lowering operations.

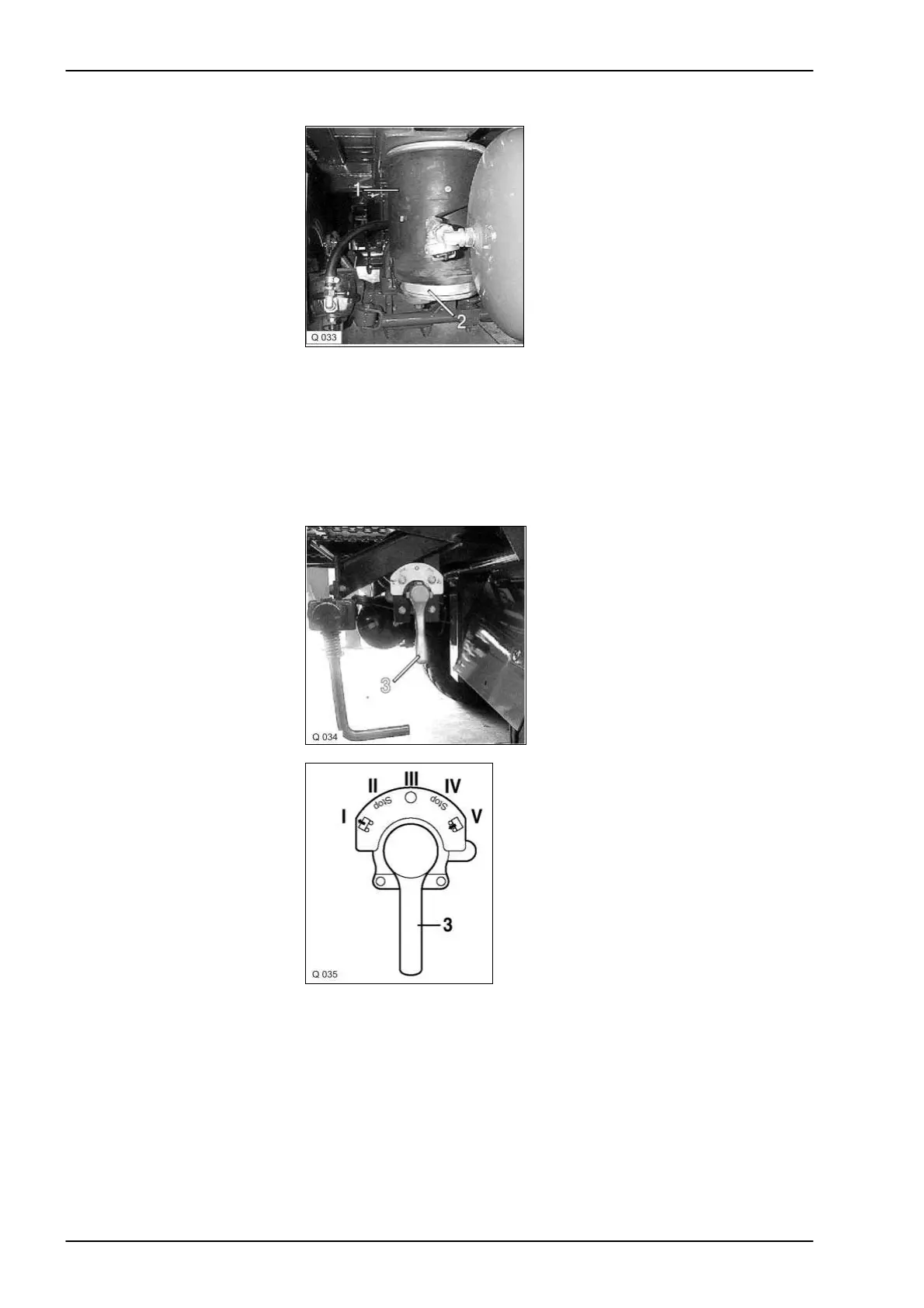

Actuate the valve via the rotary slide (3) in order to remove foreign
objects between the rubber bellows (1) and the spring bell (2) (Fig. 18).
After operating the lifting and lowering device, the valve should be set to
the “travel” position before starting. The travelling height is regulated
automatically.
Rotary slide positions: I Lifting
II Stop
III Travelling
IV Stop
V Lowering
