Hydraulics QUANTUM TIC
11-102 10/04

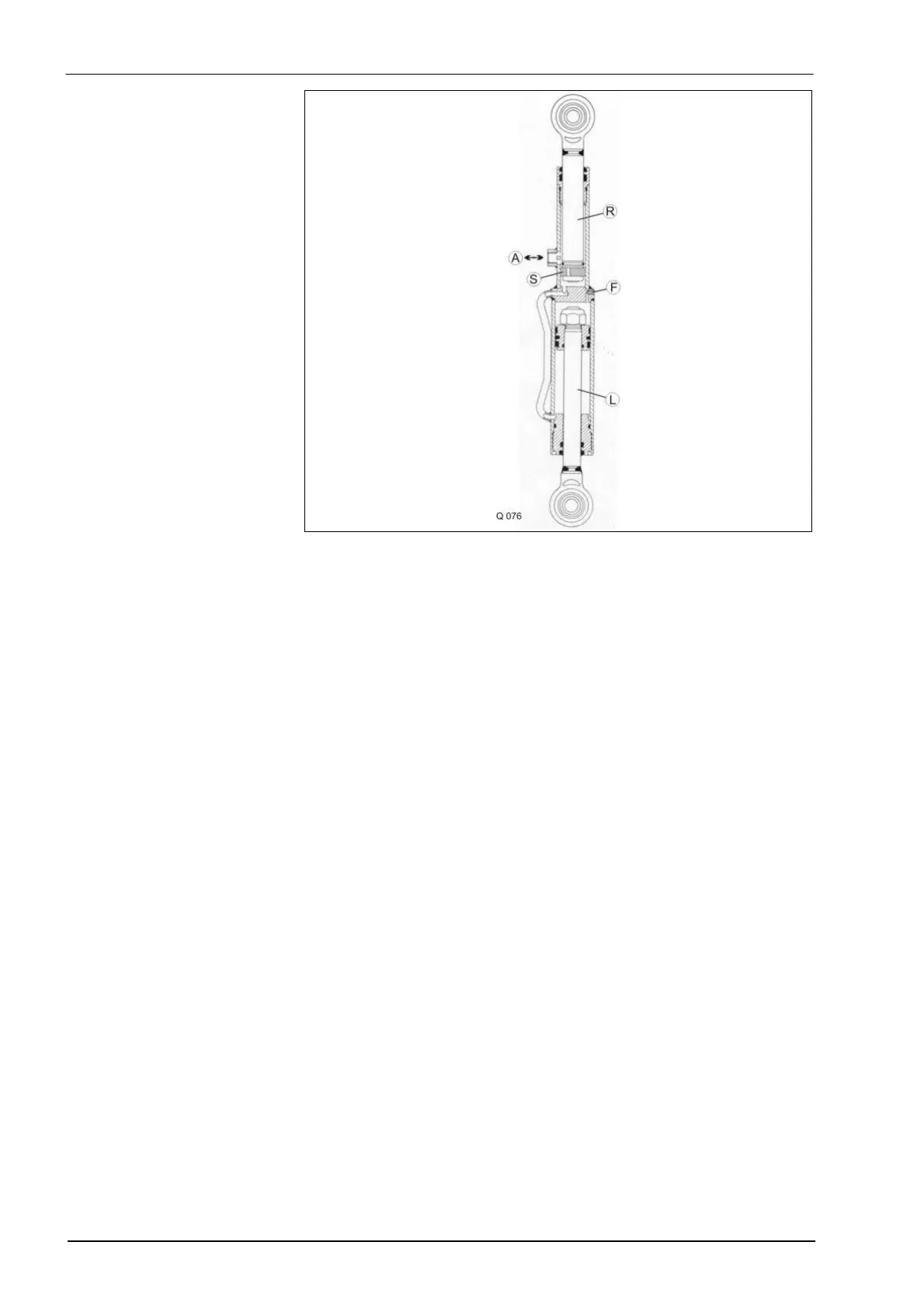

4.9 Arresting cylinder
for trailing axle
A Working cylinder port
F Filter
L Ram rod
R Ram rod
S Guide bushing
Function Connect port (A) to the single-acting control valve of the tractor.
Forward travel:
Set the additional control unit to the floating position. Due to the toe-in
(approx. 3 mm) and the friction, the land wheels are steered
automatically.
In this process, the ram rod (R) is either pulled or pushed. The additional
control unit of the tractor displaces or sucks in the oil.
Reverse travel:
Oil flows to the cylinder. The ram rod (L) extends. The land wheels are
set to straight ahead travel and arrested.
