Claas QUANTUM 3500 - QUANTUM P Lighting

Electric System QUANTUM TIC
12-36 10/04

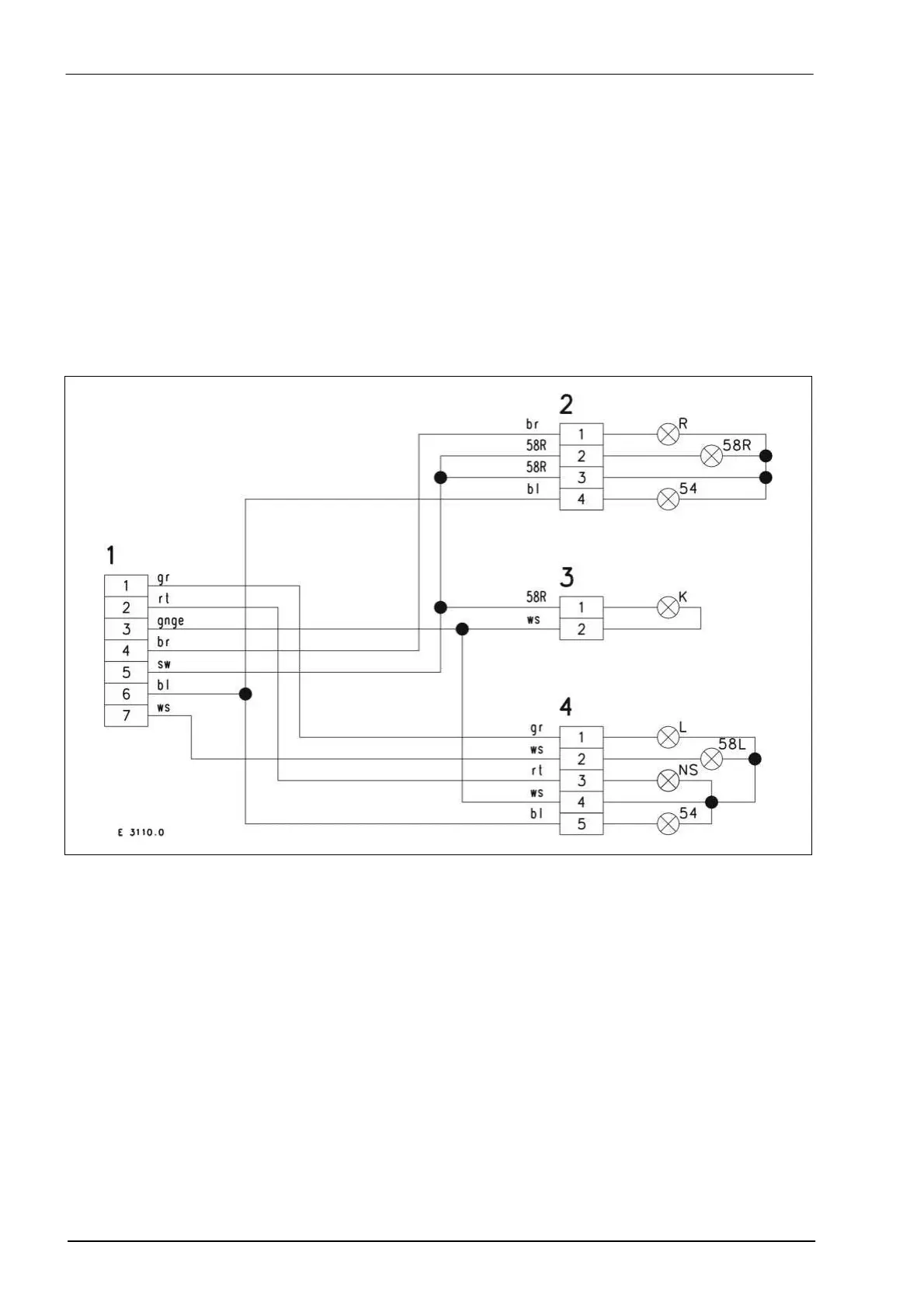

3.4 QUANTUM P
Lighting
1 7-pin plug
2 4-pin plug, right-hand rear lights
3 2-pin plug, rear number plate light
4 5-pin plug, right-hand rear lights
R Turn signals, right-hand
L Turn signals, left-hand
58R Taillights, right-hand
58L Taillights, left-hand
54 Brake light
K Rear number plate light
NS Rear fog light
