Hydraulics QUANTUM TIC
11-18 10/04
2.0 QUANTUM 3500K / 3800K / 3500P / 3500S
2.0.1 Prior to operation As the various tractor types are equipped with different hydraulic
systems, it is imperative to observe the Operator’s Manual of the tractor.
This is the only way to avoid damage to the hydraulic system of the
tractor.
Important:
QUANTUM 3500S only
• Absolutely avoid any overheating of the tractor hydraulic system.
• Do not disregard any warning signals possibly appearing on the
tractor.
• The forage wagon hydraulic system must be adapted to the tracto
r
hydraulic system.

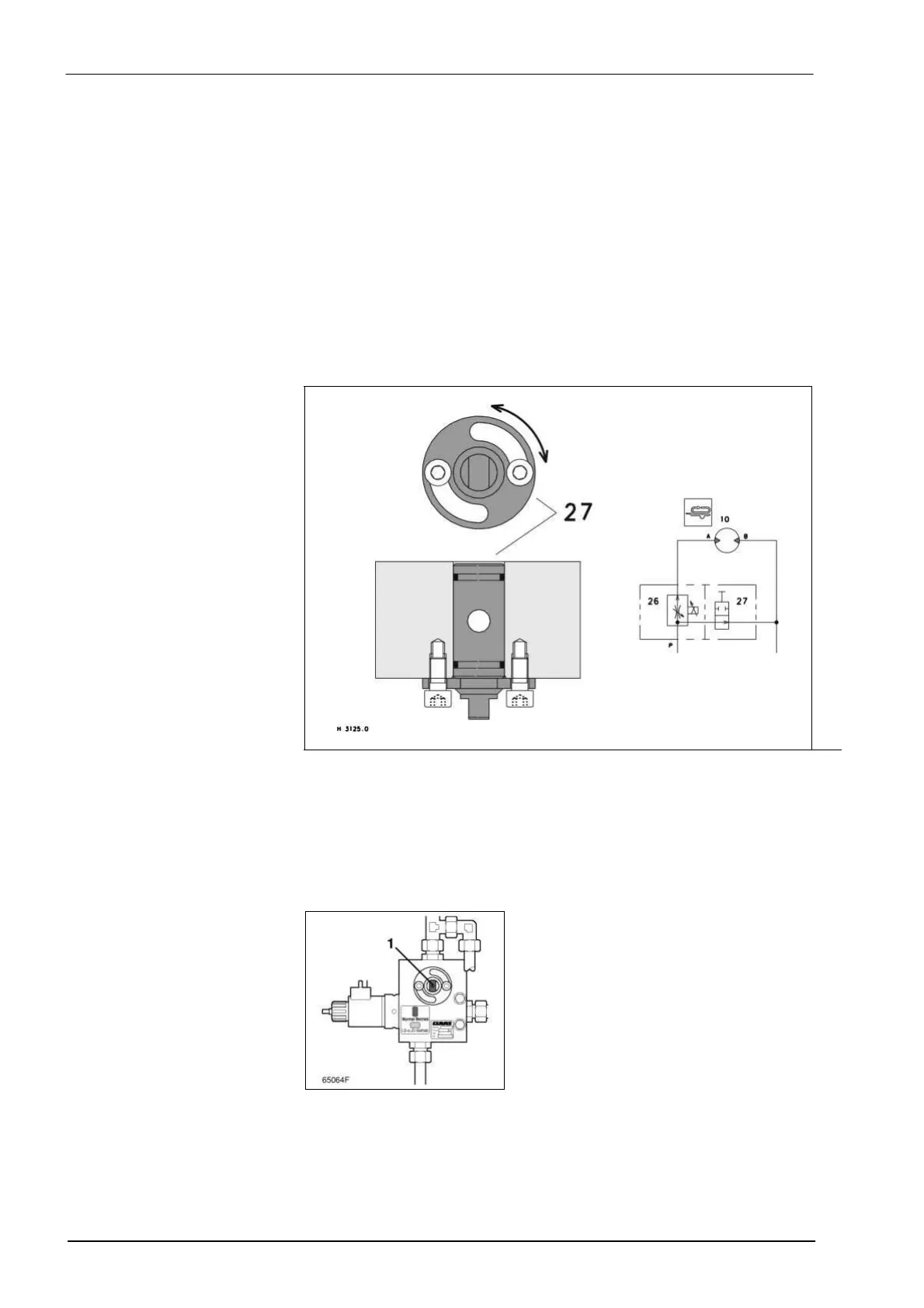

This is done using shut-off tap 27. In its ex-works delivery condition, the
forage wagon hydraulic system is set to suit tractors with an open
hydraulic system (standard system).
2.0.1 Fixed displacement
pump
Tractors with fixed displacement pump = open hydraulic system (standard
system on forage wagons).
The shut-off tap (1) is set counterclockwise to the left-hand limit stop = Free
circulation of oil.
