Claas QUANTUM 3500 User Manual

TIC QUANTUM Operation
10/04 3-9

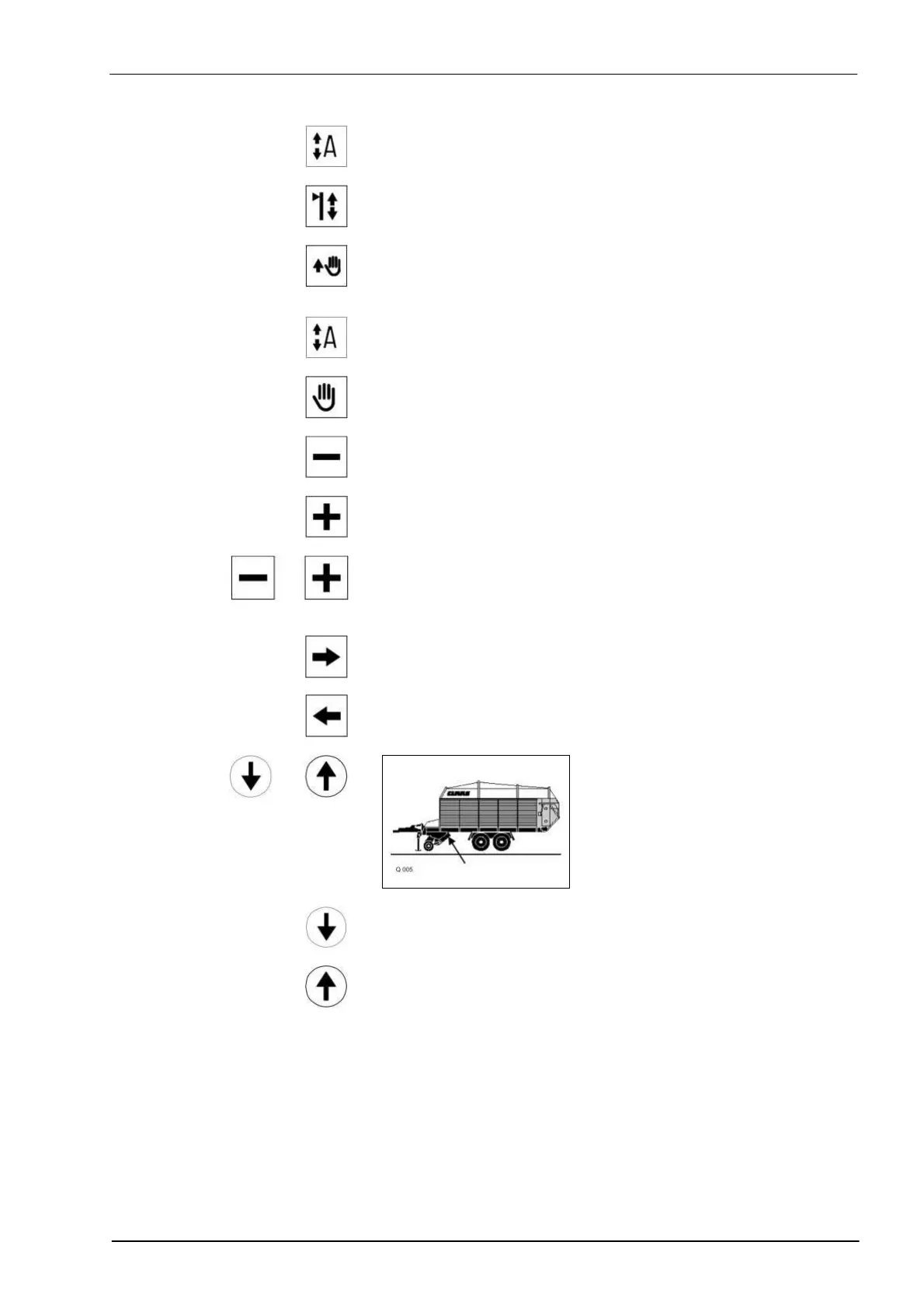

2.1 Control box short instructions
Pick-up up/down
The pick-up disengages when raised.
Setting filling mode/
automatic filling ON/OFF
Loading operation/
manual
Raise the pick-up.
The pick-up does not disengage when raised,
benefit: this is easier on the dog clutch.
Pick-up down
Floor conveyor ON/
save floor conveyor speed
Floor conveyor speed
Speed down
Speed up
(Option S = quick unloading via 2-speed motor)
Reverse conveyor floor
Cutting mechanism
Open knife frame 1
st
position
Close knife frame 1
st
position
Open knife frame 2
nd
position
Close knife frame 2
nd
position
