Hydraulics QUANTUM TIC
11-44 10/04

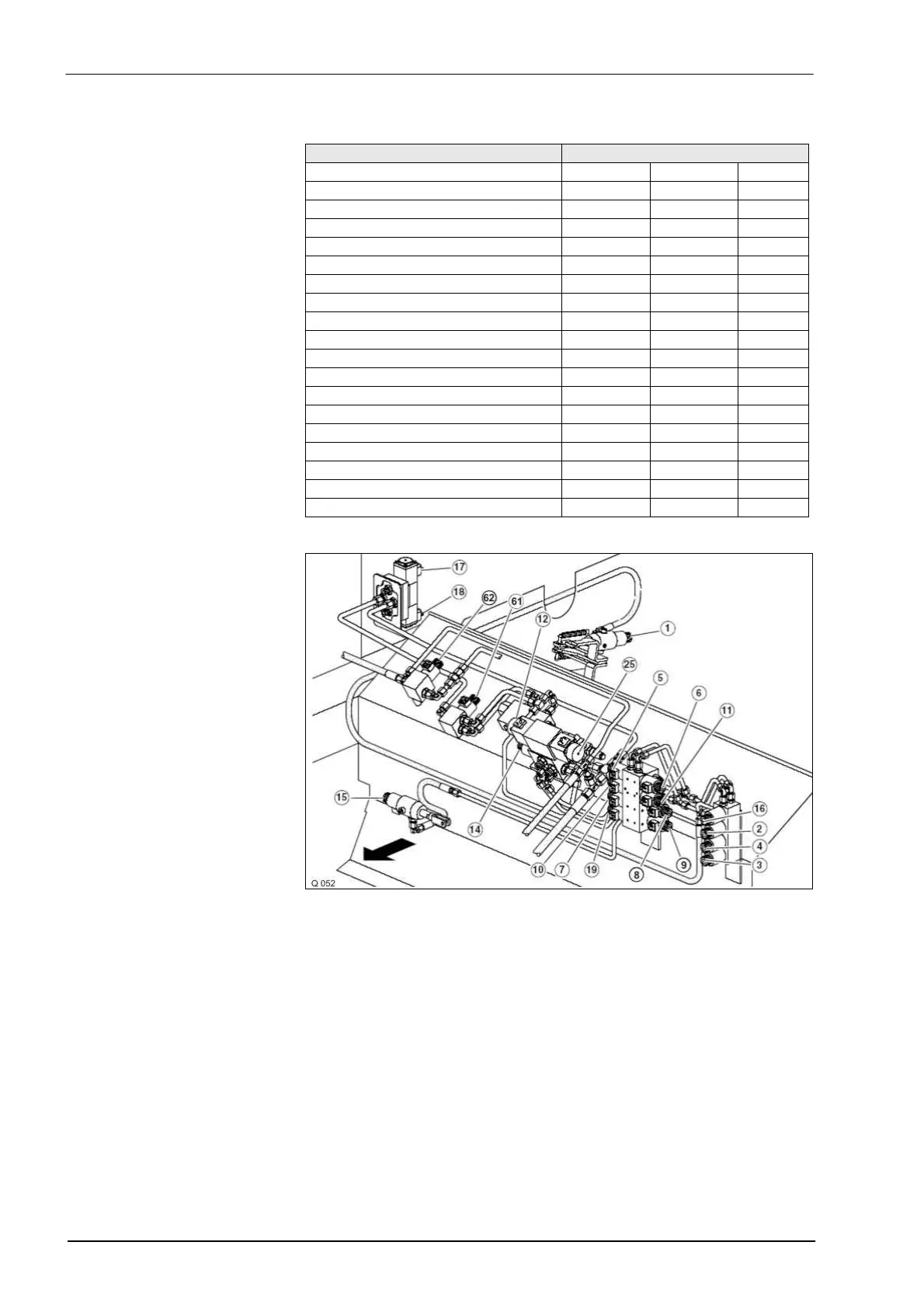

Table: QUANTUM S with 2-speed motor and cross conveyor belt
Function of solenoid coils
Function Solenoid valve energized:
Shredder drums On - 15 -
Shredder drums Off 14 16 -
Open tailgate 14 7 9
Lower tailgate - 8 9
Lock tailgate 14 8 19
Raise articulated drawbar 14 10 -
Lower articulated drawbar 14 11 -
Floor conveyor forward 14 25 -
Reverse floor conveyor 14 12 -
2-speed floor conveyor 14 13 25
Pick-up On - 1 -
Pick-up Off 14 2 -
Raise pick-up 14 4 -
Lower pick-up (floating position) - 3 -
Right cross conveyor belt 14 18 61
Left cross conveyor belt 14 17 61
Open knife frame 14 5 -
Close knife frame 14 6 -
Block trailing axle 14 62 -
