Claas QUANTUM 3500 - Page 131

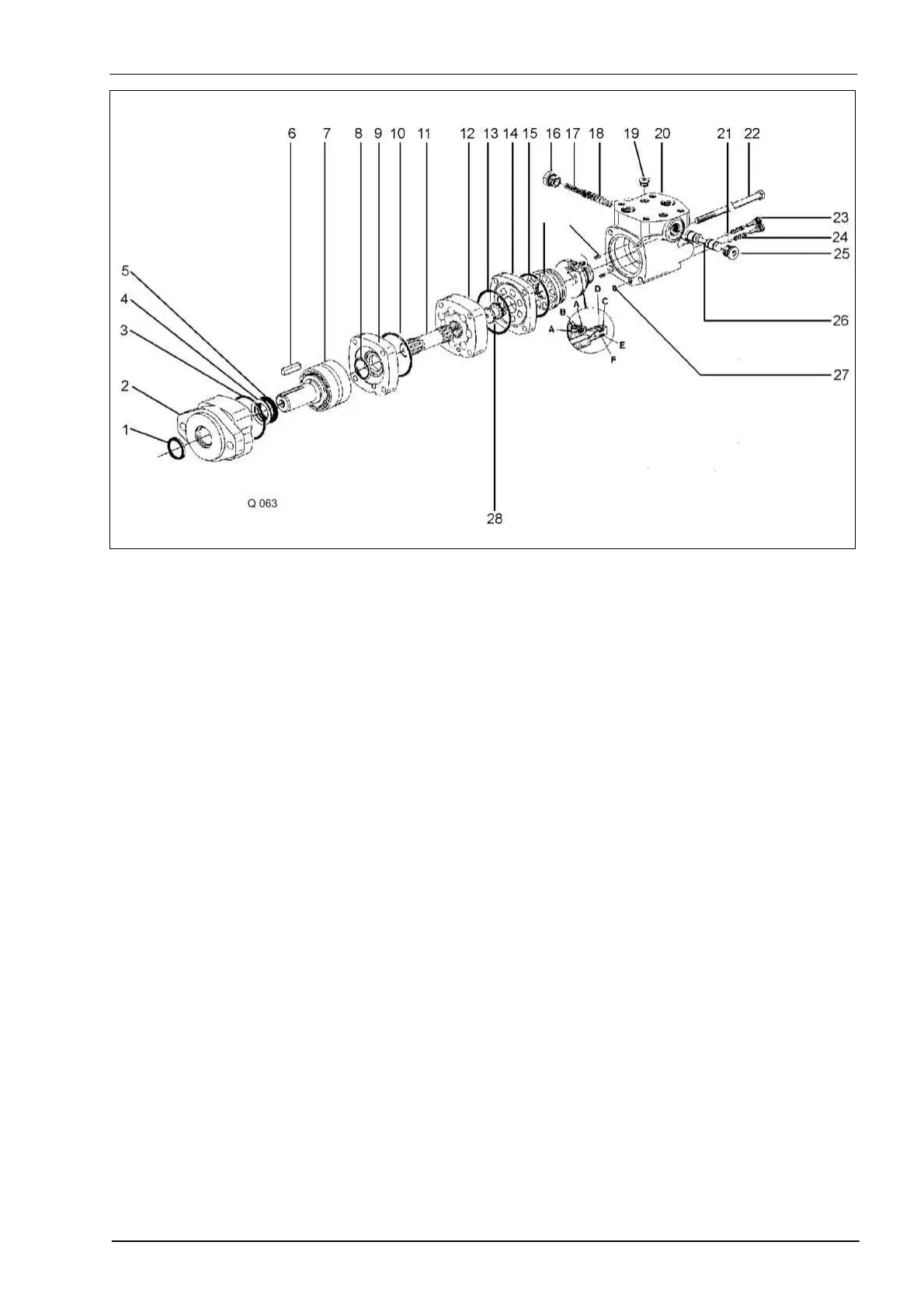

TIC QUANTUM Hydraulics
10/04 11-65
1 Dust seal
2 Bearing housing
3 Seal
4 Back-up ring
5 Shaft seal ring
6 Woodruff key
7 Output shaft and bearing
8 Output shaft head seal
9 Lock-up plate
10 Seal
11 Drive
12 Geroler
13 Seal
14 Distributor plate
15 Seal
16 Plug
17 Compression spring
18 Compression spring
19 Plug
20 Valve body
21 Control ball
22 Screw
23 Plug
24 Compression spring
25 Plug
26 Control spool
27 Seal
28 Valve drive
