Claas QUANTUM 3500 User Manual

Hydraulics QUANTUM TIC
11-98 10/04
4.7 DANFOSS OMR 125
hydraulic motor

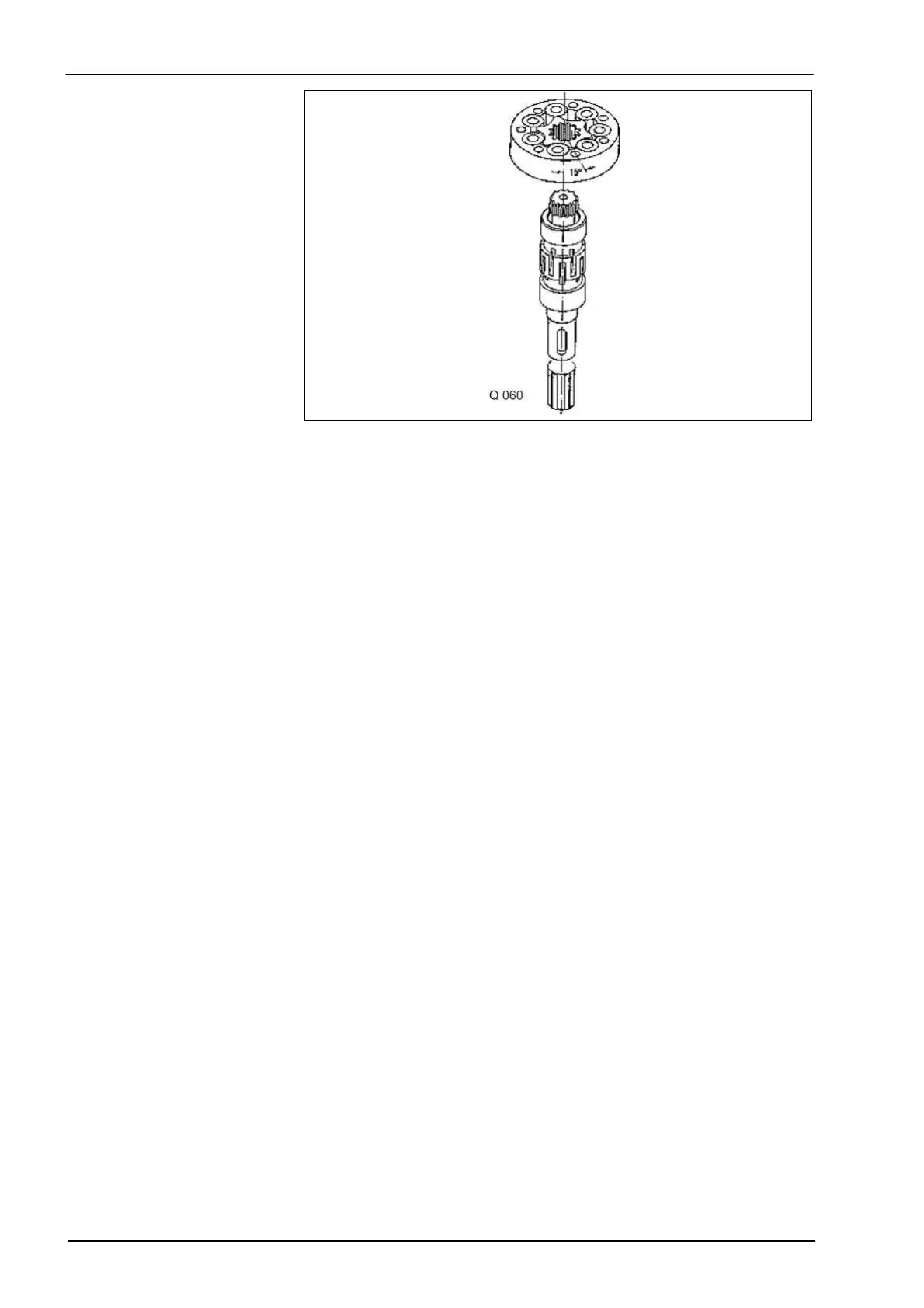

Install the gear set so that the tip of one rotor tooth is aligned with the
transverse axis of the motor housing.
This ensures that one tooth tip of the rotor is 15° to the left of the
key/groove of the cylindrical shaft or from the tip of the spline of the multi-
spline shaft (correct direction of rotation).
