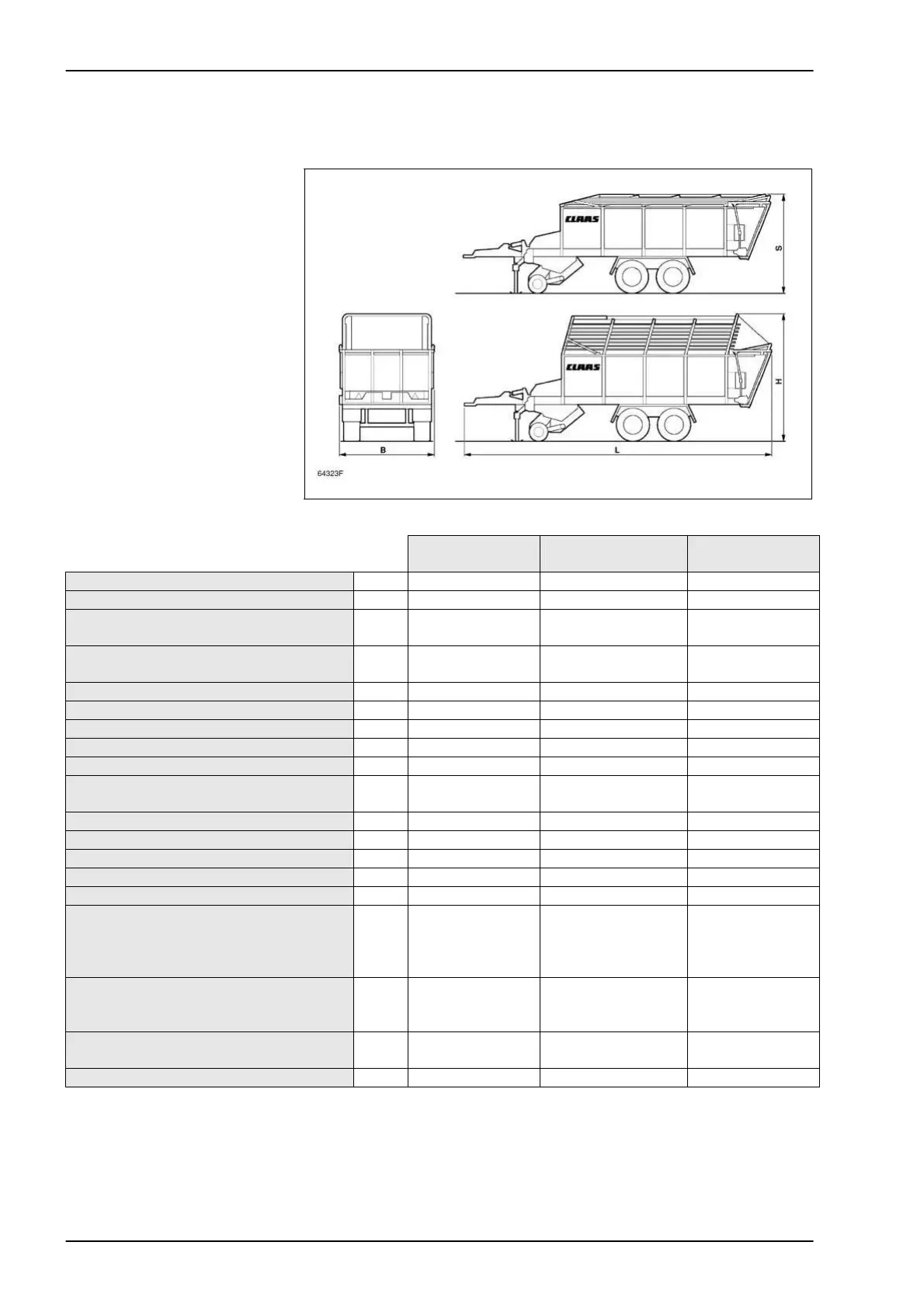

Technical Data QUANTUM TIC
1-2 10/04
1.0 QUANTUM 2500 K, 2500 P, 3500 K, 3500 P, 3800 K, 3800 P
1.1 QUANTUM 3500 K, 3500 P, 3500 S, 3800 K, 3800 P, 2500 K, 2500 P
QUANTUM
3500 K
QUANTUM
3500 P
QUANTUM
3500 S
Length (L) mm 8,100 8,100 8,200
Width (B) mm 2,550 2,550 2,550
Height (H) – dry forage assembly folded
up
mm 3,410 3,600 3,600
Height (S) – dry forage assembly folded
down
mm 2,600 3,050 3,050
Track width mm 1,850 1,850 1,850
Pick-up width mm 1,800 1,800 1,800
Platform height mm 1,180 1,180 1,180
Loading capacity (acc. to DIN 11741) m
3
26.6 28 25.6
Kerb weight kg 5,160 5,200 5,860
Permissible total weight (Rückmatic /
compressed air)
8,000/11,000 8,000/11,000 8,000/11,000
Number of cutting knives 33 33 33
Shortest theoretical length of cut mm 45 45 45
Number of pick-up tines per tine bar 26 26 26
Tine spacing mm 61 61 61
PTO speed min
-1
1,000 1,000 1,000
Tyres - Rückmatic up to 40 km/h
or
- compressed air up to 40 km/h
- compressed air up to 60 km/h
19.0/45-17
500/50-17 10 PR
555/45-17 10 PR
500/50-17 10 PR
19.0/45-17
500/50-17 10 PR
500/50-17 10 PR
500/50-17 10 PR
19.0/45-17
500/50-17 10 PR
555/45-17 10 PR
555/45-17 10 PR
Tyre pressure - with tyres 500/50-17
555/45-17
19.0/45-17
bar
bar
bar
3.5
3.0
3.0
3.5
3.0
3.0
3.5
3.0
3.0
Tightening torque of wheel nuts - wagon
wheels
Nm 300 300 300
Sound pressure level dB(A) 70 70 70
