The encoder power supply voltage and output electronic
has to be communicated to ZAPI in order to correctly set
the selection jumper in the controller.

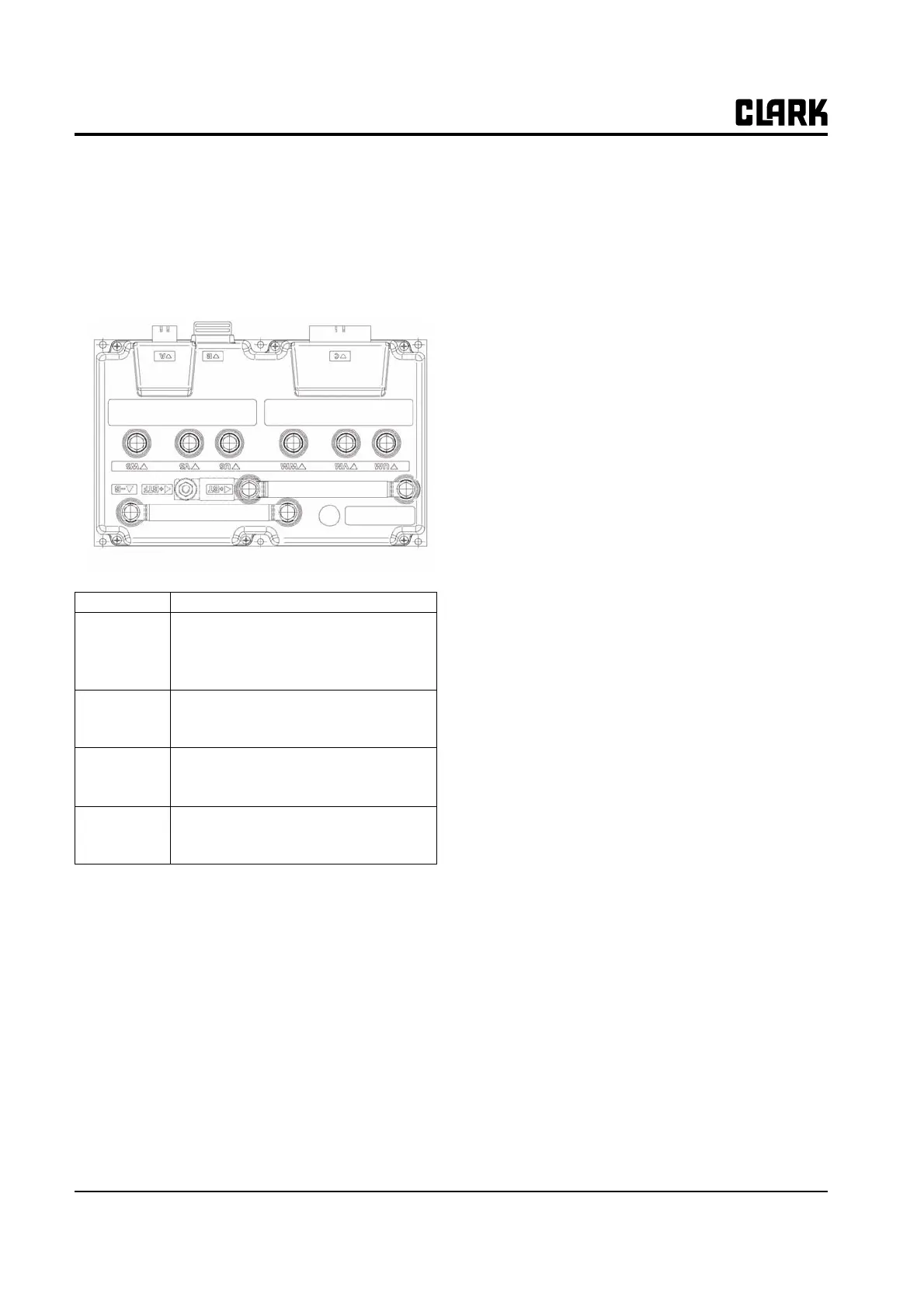

Description of Power Connections
-B Negative of the battery
+BT Positive of the battery; if the power fuse is
not present,positive cable coming from
the Line contactor must be connected to
this power connection
+BTF Positive of battery before power fuse,
must be connected to positive cable com-
ing from line contactor.
Um: Vm; Wm Connection bars for the three phases of
the right motor; follow this sequence and
the indication on the motor.
Us, Vs, Ws Connection bars for the three phases of
the left motor; follow this sequence and
the indication on the motor.
