Clark GEX20 - Group 26, Steer Axle Section 6 Steer Cylinder Overhaul

Group 26, Steer Axle
SM 765, Dec ’06 Steer Cylinder Overhaul • 26-6-1
Preparation for Steer Cylinder
Disassembly and Overhaul ................................... 2
Steer Cylinder Disassembly .................................. 2
Parts Inspection ..................................................... 2
Steer Cylinder Reassembly ................................... 3
Operational Pressure Test .................................... 4
IMP
O
RTANT
Before removing any component for overhaul, make sure the
correct repair parts, seals, and gasket sets are available.
Section 6

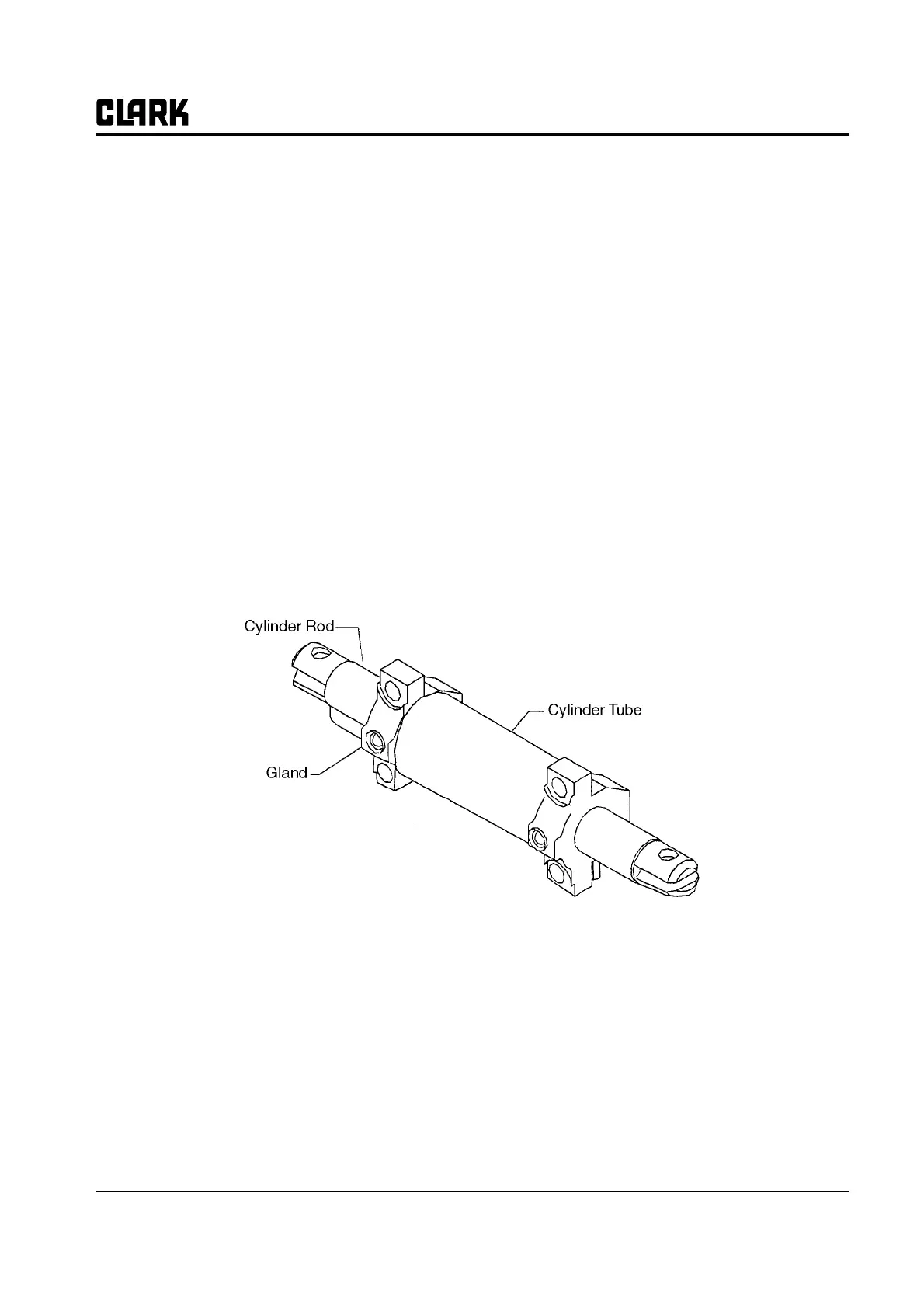

Steer Cylinder Overhaul
