Programming & Adjustments Using ZAPI Handset
Adjustments via Handset
Adjustments of parameters and changes to the controller's configuration are made using the digital Handset. The Handset
is connected to the "B: connector of the controller.
Start with the battery disconnected at the battery receptacle, key switch in the OFF position.
Disconnect the dash display harness from the Master Control and connect the handset cord into this "B" connector.
Plug in the battery and turn the key switch ON.

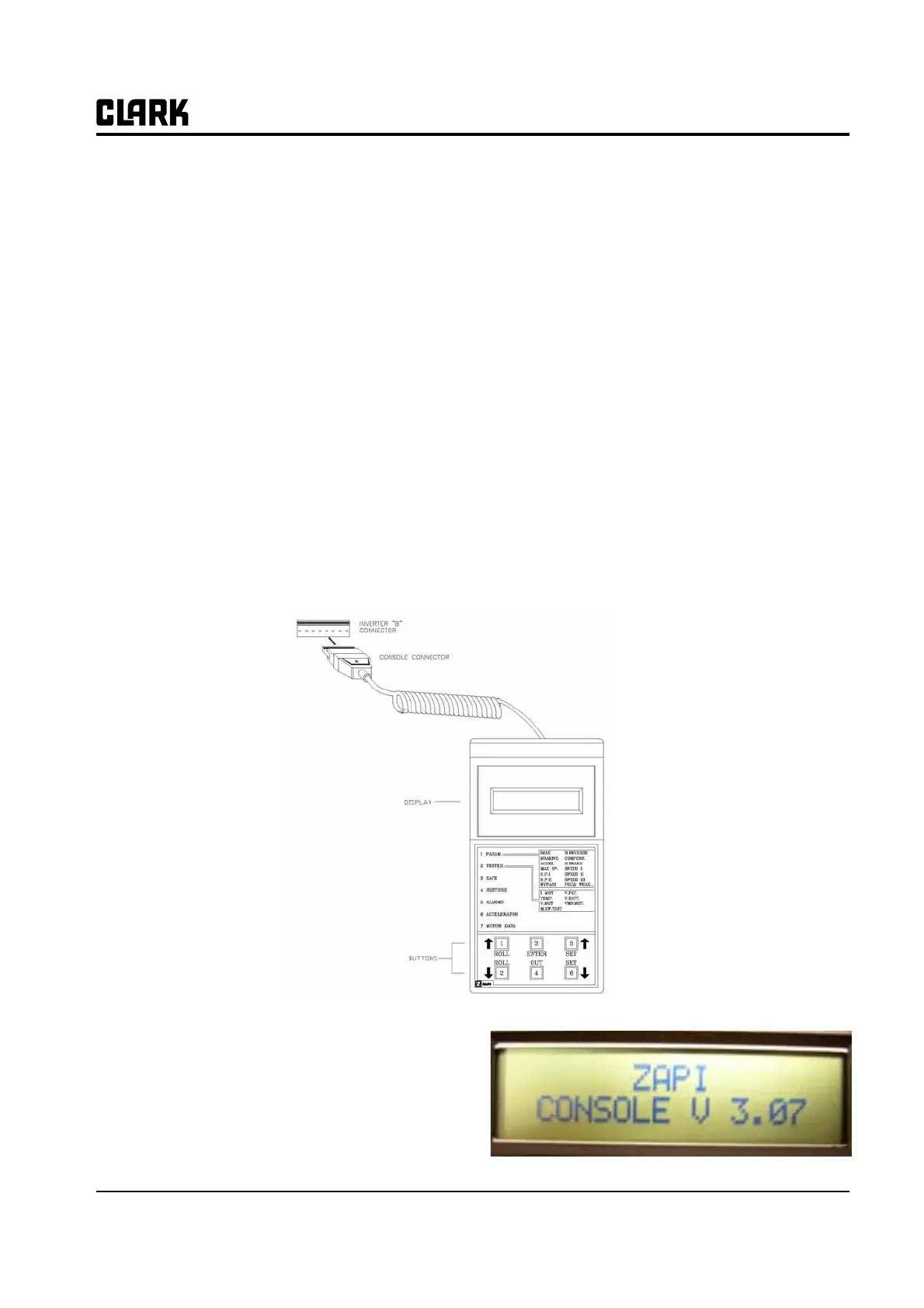

Description of Handset & Connections
Digital Handsets used to communicate with the AC Controllers must be fitted with EPROM CK ULTRA, minimum
"Release Number 3.07, CLARK part number 8033636.
The Handset “Release Number” will be displayed on the
Handset display momentarily when the key switch is first
turned ON.
