Group 34, Uprights
SM 765, Nov ’06 Upright Removal and Replacement • 34-8-1
This Section describes how to remove the entire upright
assembly from the truck. The carriage and forks must be
removed from the upright assembly before the upright is
removed. (For uprights with an auxiliary component, a
side-shifter for example, the two hydraulic hoses power-
ing the auxiliary component must be removed before the
carriage is removed.) See Section 7, “Fork and Carriage
Removal and Replacement,” for procedures to remove the
carriage and fork assembly from the upright.
CAUTION
!
CAUTION
!
SAFE PARKING. Before working on truck:
1. Park truck on a hard, level, and solid sur-
face, such as a concrete floor with no gaps
or breaks.
2. Put upright in vertical position and fully
lower the forks or attachment.
3. Put all controls in neutral. Turn key
switch OFF and remove key.
4. Apply the parking brake and block the
wheels.

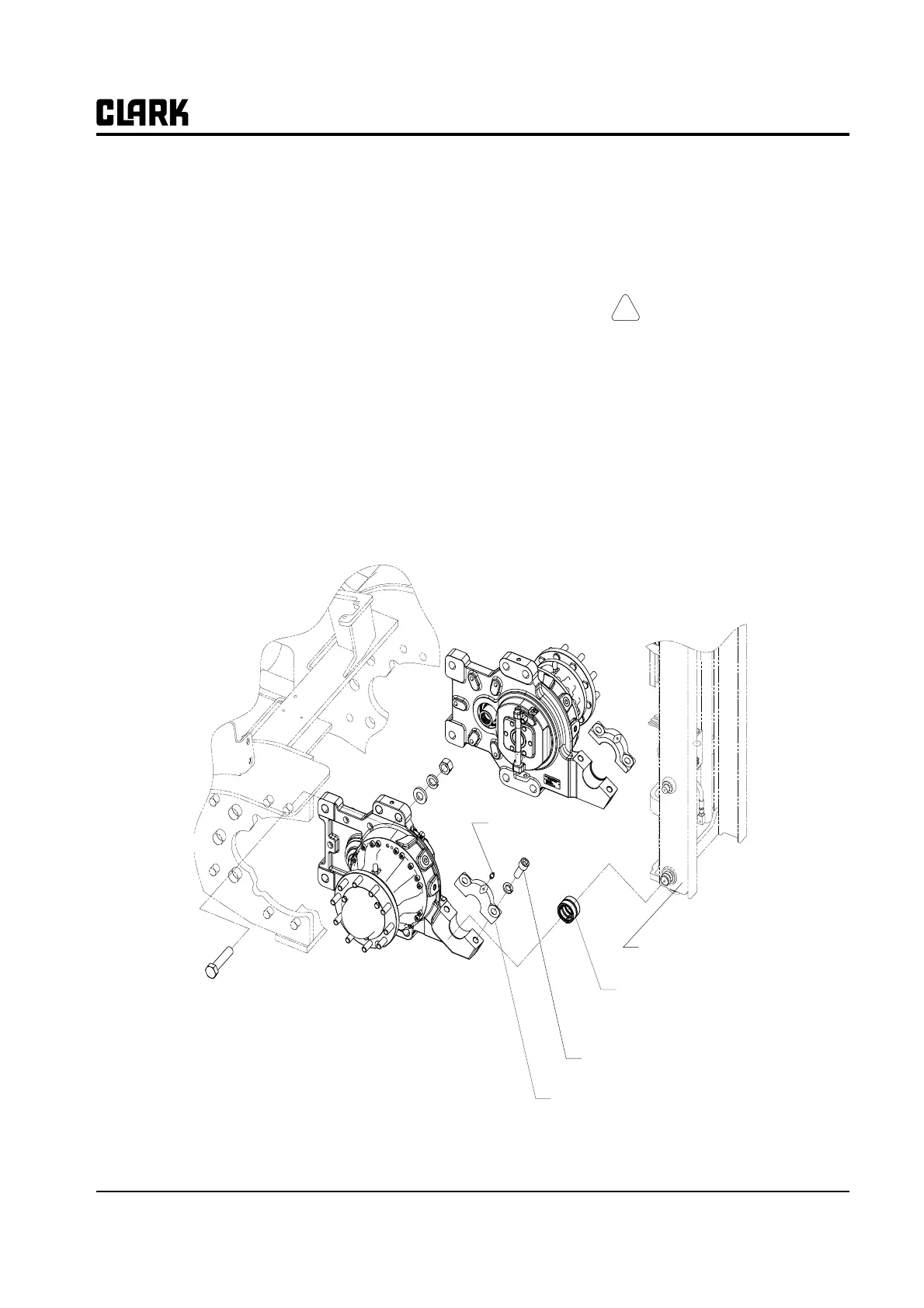

Typical Upright Installation
Mounting cap
Bolt of upright mounting
Outer rail set
Bushing
Nipple-grease
Section 8
Upright Removal and Replacement
