Clark GEX20 - Specification and Description of Drive Axle; Specifications

Group 20, Drive Axle
SM 765, Nov ’06 Specification and description of drive axle • 20-1-1
Specifications
General specification
Reduction ratio : 26
Speed : Forward/Reverse 1
Oil capacity : 1.0 liter
Gear type : Plant gear
Drive axle oil : Torque fluid 56(SAE 80W)
Weight : 60kg (excl. oil)
Brake specification
Service brake type : Wet brake
Required flow of service brake: 3.9cc
Service brake setting stroke: 0.9mm
Brake oil : Hydraulic fluid
Parking brake lever ratio : 1:8.27
Fitting specification
Brake port : M10X1.0P
Oil drain plug : PT 1/4, PT 3/8
Air bleeder : PT 1/8
Air bleeder (Brake): M12X1.25P
Oil port : PT1/2
Nipple : M6X0.75P(grease)
Stud bolt (Wheel bolt): M14X1.5P
Loctite specification
Bolt : Loctite 277
Fitting : Loctite 572
Torque specification
Boss bearing and plate housing socket bolt, tightening
torque : (330 kgf.cm) 12T
Brake piston and plate housing socket bolt, tightening
torque : (130 kgf.cm) 8T
Brake stopper fixing socket bolt, tightening torque: (130
kgf.cm)
Wheel bearing free load adjusting nut, tightening torque :
(2000 kgf.cm)
Final housing socket bolt, tightening torque : (330 kgf.cm)
12T
Wheel cap fixing socket bolt, tightening torque : (330
kgf.cm) 12T
Master hinge mounting bolt: M16X2.0X40
DESCRIPTION

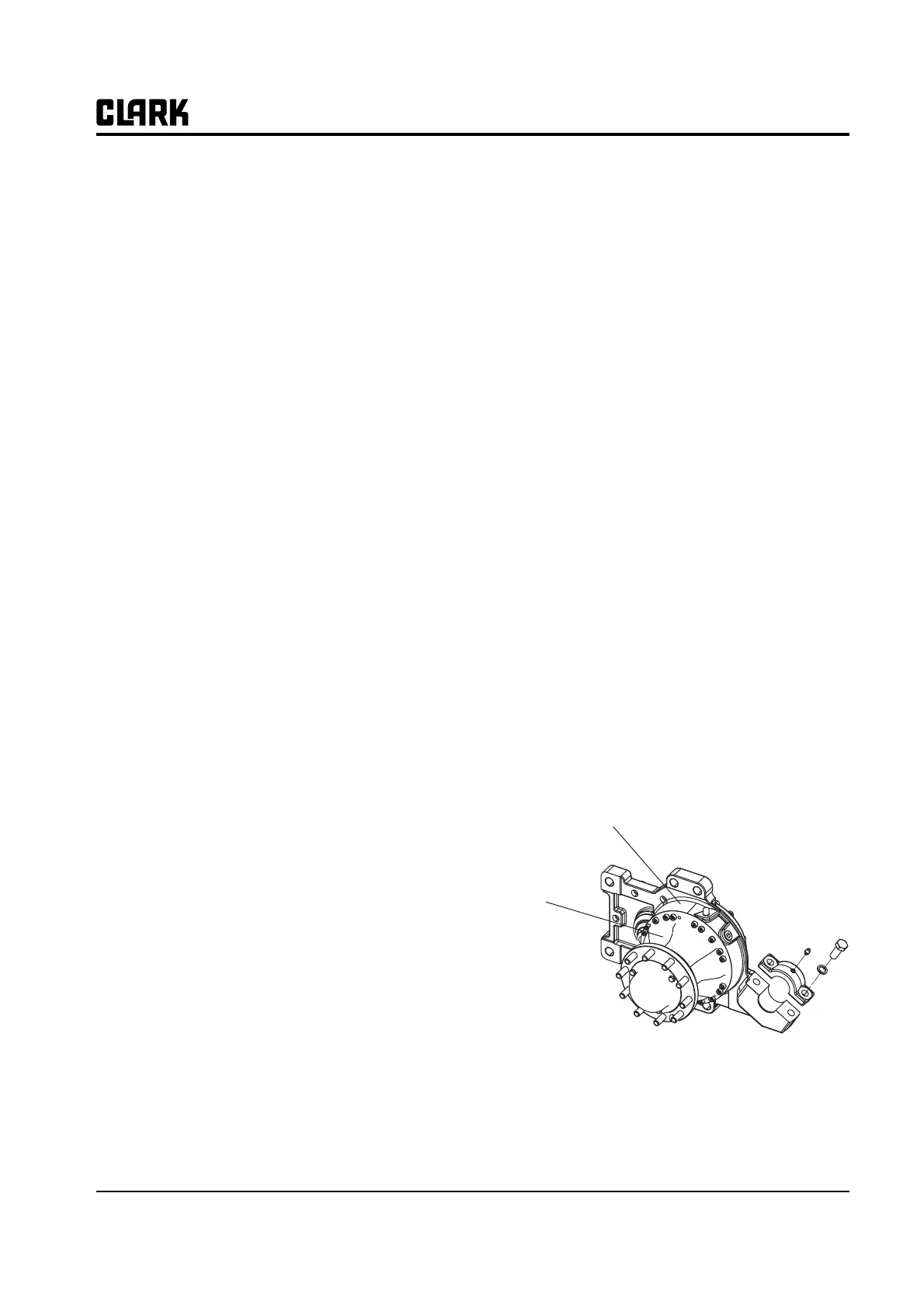

Drive axle ass'y
Wheel Ass'y
Section 1
Specification and description of drive axle
