Group 38, Counterweight and Chassis
SM 765, Nov ’06 Counterweight Removal and Installation • 38-2-3
Counterweight Installation
WARNING
!
Stand clear of the counterweight as it is being
hoisted, moved, or mounted.
During mounting, always use prybars for
location adjustments. Do not place any part
of your body between the counterweight and
truck.
1. Place the counterweight fit to the mounting hole of
frame by use of the hoist and eyebolt.

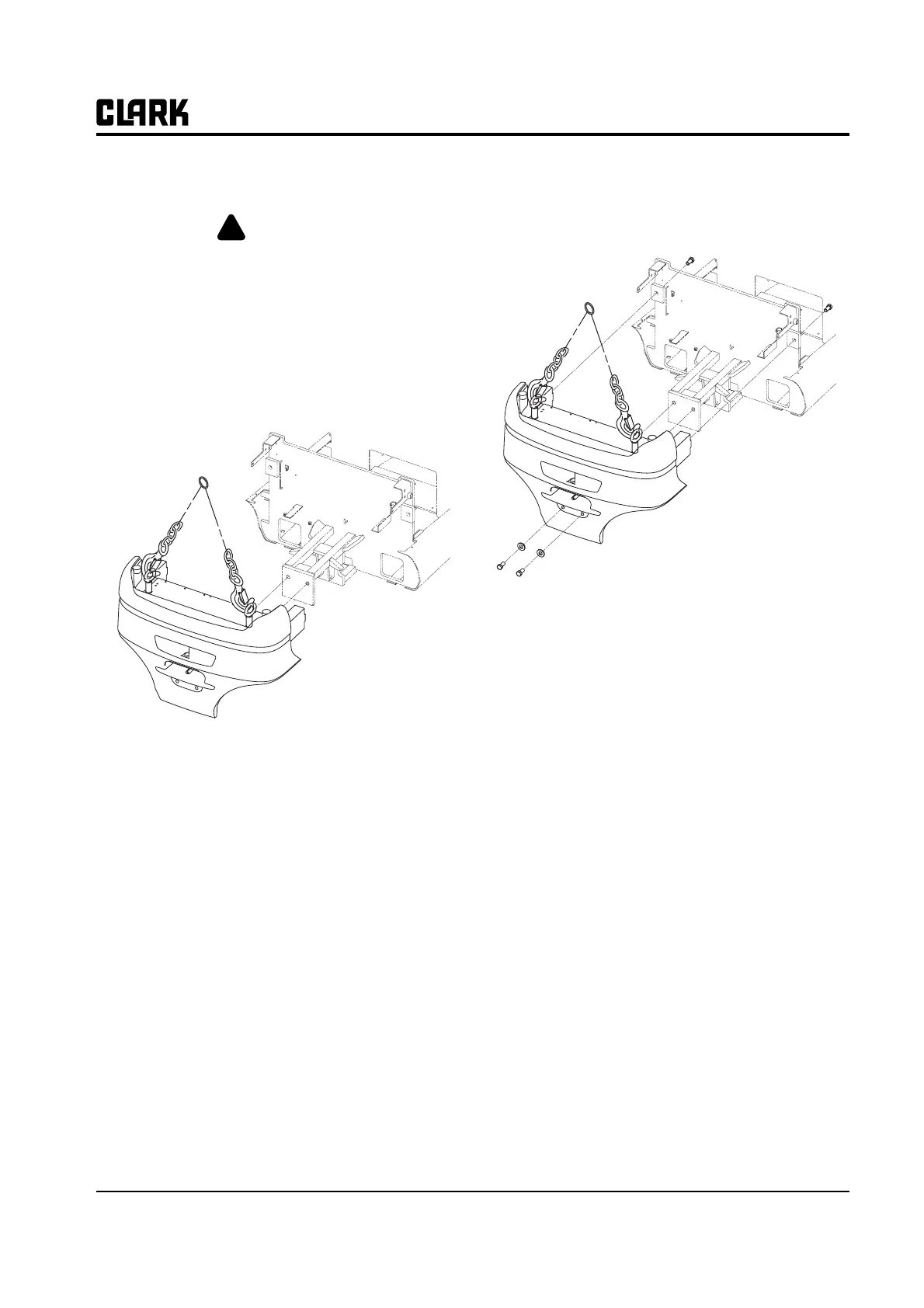

Generic Illustration
2. Inspect the counterweight mounting bolts to make
sure they are in good condition before installing. Use
only Clark replacement parts. Torque the mounting
bolts to 340-380 N⋅m (251-280 lb-ft).
3. Remove the hoist and eye bolls.
IMP
RTANT
Never allow a truck to be put into service
without the counterweight mounting bolts in
place. Check the bolts and torque regularly.
