Group 20, Drive Axle
20-6-2 • Adjustment SM 765, Nov ’06
• Tighten the bolt to prevent the looseness.

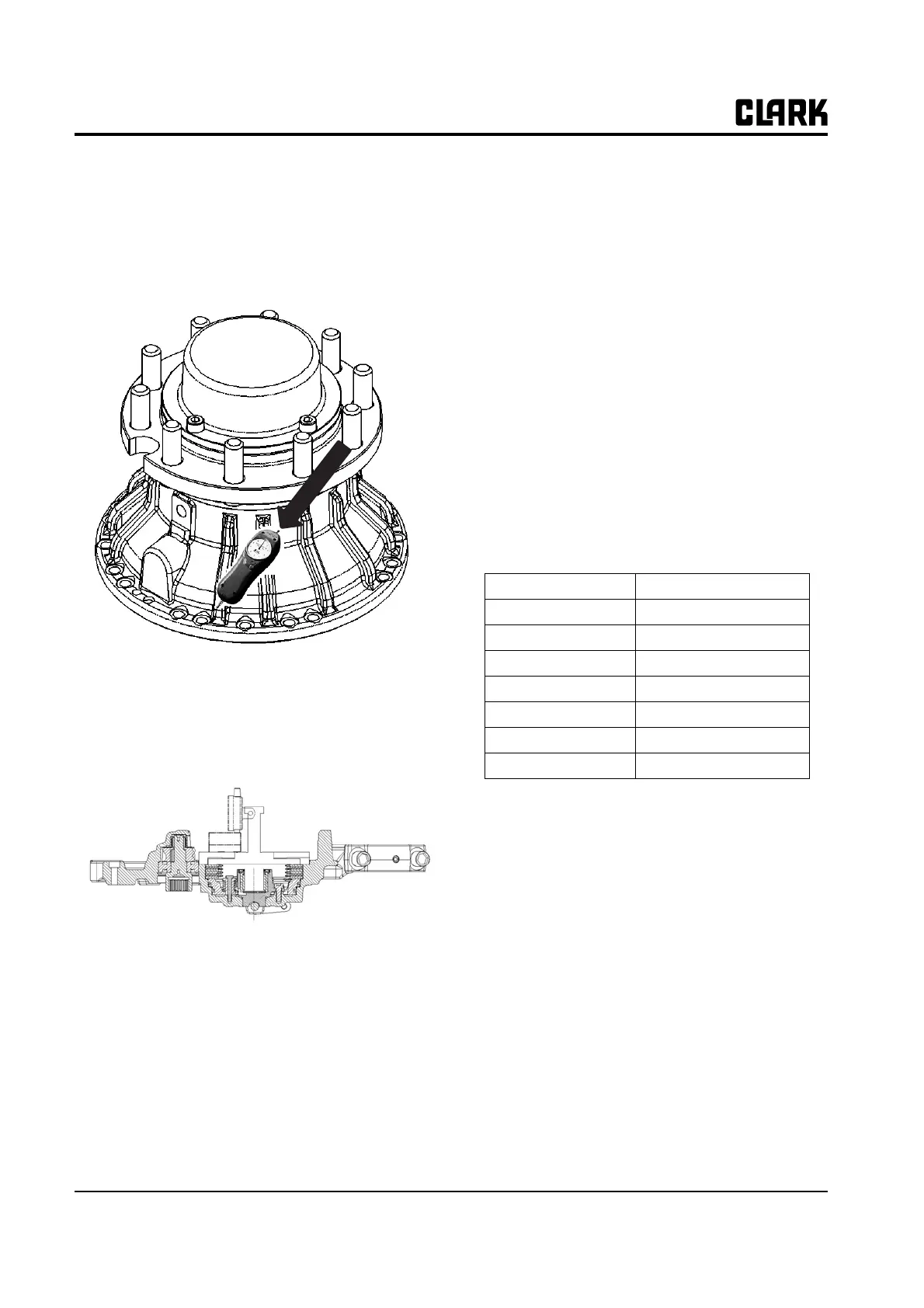

• Measure the preloading value with push-pull
gauge as shown in the figure 16.
(Specification: Push-pull gauge torque: 12kgf.cm
~15kgf.cm)
Adjustment of brake disc gap
Required tool for setting
− Measuring jig
− Dial gauge
Preloading adjustment order
• Assemble the disc and plate to the plate housing.
• Install the jig for measurement to contact on the
disc and plate housing surfaces.
• Place the dial gauge on the jig.
• Measure the stage differences between jig sur-
faces.
(Caution: measure it when apply the preload to
brake disc[150kg.cm])
• The gap when the deviation of dial gauge is "0".
(It accurately sets to 0.9mm)
• Set the gap adjustment according to the measured
value of gap based on the thickness of back plate.
• Refer to the specification to set the stroke.
• When measuring gap is based on 0.9mm, if it is
plus value, apply the thicker plate.
• When measuring gap is based on 0.9mm, if it is
minus value, apply the thinner plate.
Measured value and stroke specification
Specification: 0.85~0.9mm
Measured value Setting stroke
-0.15 0.95
-0.10 0.9
-0.05 0.85
00.8
0.05 0.75
0.1 0.7
0.15 0.65
