Group 26, Steer Axle
SM 765, Dec ’06 Steering Cylinder Removal and Replacement • 26-5-1
CAUTION
!
CAUTION
!
CAUTION
!
SAFE PARKING. Before working on truck:
1. Park truck on a hard, level, and solid
2. surface, such as a concrete floor with no
gaps or breaks.
3. Put upright in vertical position and fully
lower the forks or attachment.
4. Put all controls in neutral. Turn key
switch OFF and remove key.
5. Apply the parking brake and block the
wheels.

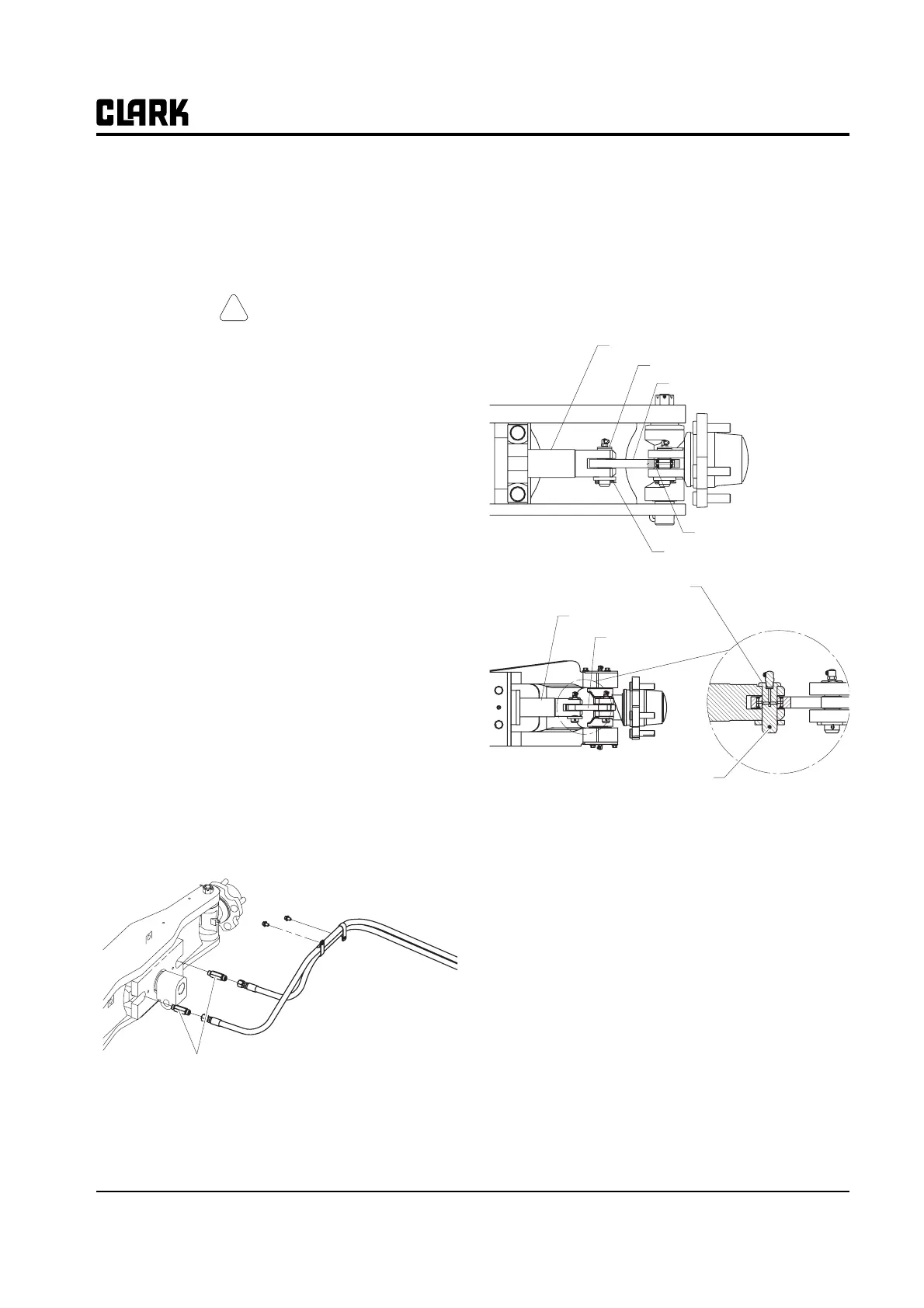

Steer Cylinder Removal
The steer cylinder can be removed from the steer axle for
overhaul or replacement without removing the steer axle
from the truck. The cylinder should be overhauled or
replaced if steering problems or troubleshooting informa-
tion indicate the cylinder is malfunctioning. See Group
2.5, Section 2, “Steering System Troubleshooting,” for
steering problem diagnoses. See Section 6 in this Group
for steer cylinder overhaul procedures.
1. Place a dram pan under the steer cylinder and remove
the hydraulic lines from the cylinder fittings. Cap fit-
tings and lines to prevent fluid from leaking and to
protect the components and hydraulic system from
dust and dirt. Label hoses and fittings for correct
reassembly.
2. Remove the snap ring from the bottom of the steering
link pin. Steering link pin attaches steer cylinder rod
end to steering link.
N
TE
Mark left-side and right-side parts for cor-
rect reassembly.
3. Tap steer link pin upward until it clears the steering
link bearing and remove the pin.
4. Remove steer link bearing from steering link-to-cyl-
inder rod end bore.
5. Rotate the steering link away from the cylinder rod
end.
6. Repeat steps 1 through 5 for the opposite side of the
steer cylinder.
7. Remove the four steer cylinder mounting bolts and
washers from the steer axle. Removal torque on these
bolts can be as high as 405 N⋅m (300 ft-lb).
Remove fittings.
Steering Link
Steering Link Pin
Steering Link Bearing
Snap Ring
Steer Cylinder Rod
Steering Link Pin
New Steer Axle
Old Steer Axle
Cotter Pin
Steering Link
Cylinder Rod
Section 5
Steering Cylinder Removal and Replacement
