Group 34, Uprights
SM 765, Nov ’06 Upright Specifications and Description • 34-1-3
Upper Roller
Secondary
Cylinder
Load Lowering
Flow Valve
Load Lowering
Flow Valve
Outer Rail Set
Lower Roller
Chain
Anchor
Primary Cylinder
Carriage Chain
Chain Sheave
Inner Rail Set
Upper Roller
Lift Cylinder
Outer Rail Set
Lower Roller
Chain Anchor
Chain Anchor
Lift Chain
Chain Sheave
Chain Sheave
Inner Rail Set
Inter Rail Set

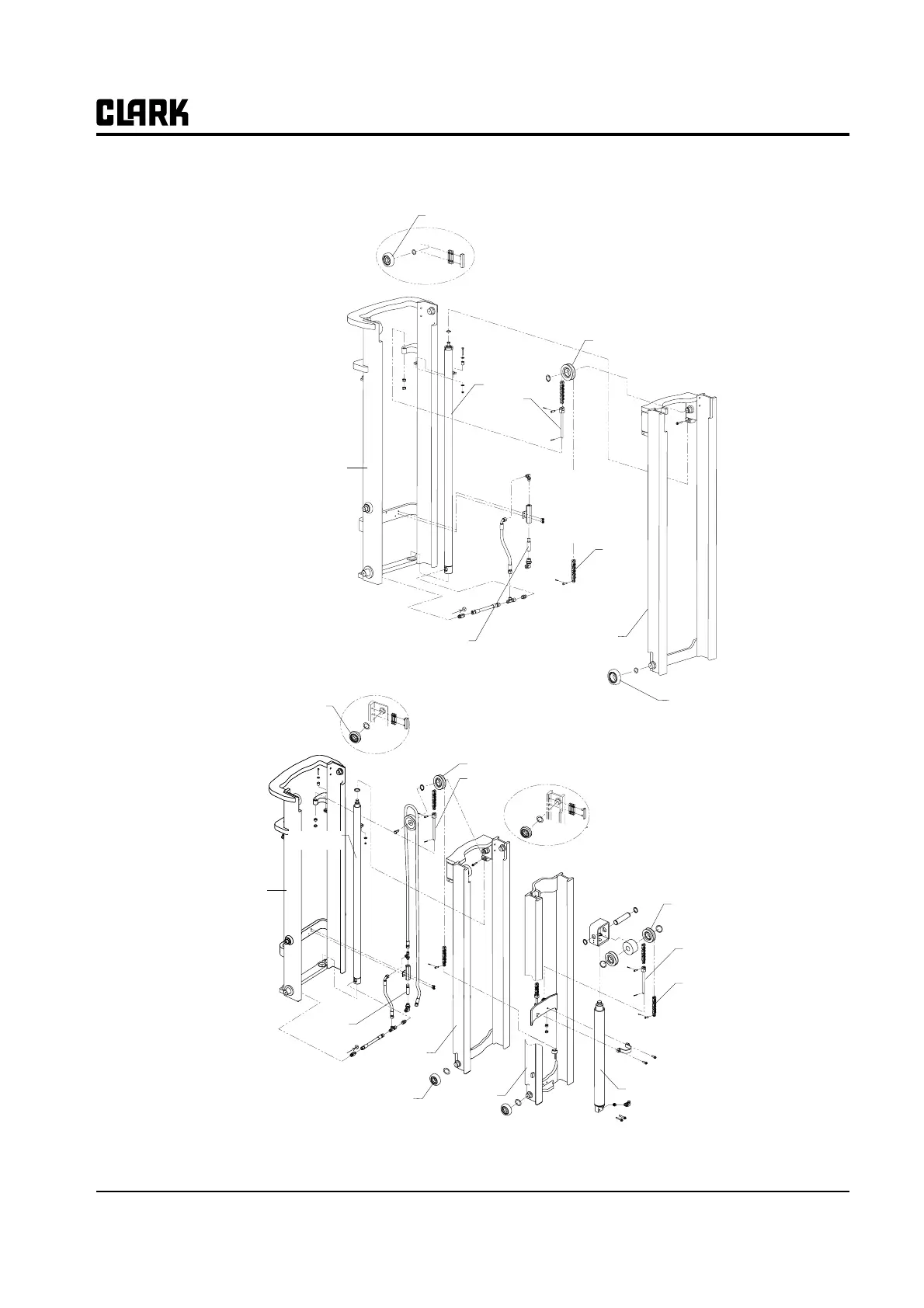

Typical Standard Upright Assembly
Typical Triple Stage Upright Assembly
*Assembly of slider and adjustment of shim:
Assemble the slider as the backside of rail and the
friction surface of slider are in parallel.
Match the Inter rail end and inner rail end, and then
make the gap between the flange face of inner rail
and the slider will be within 0.5mm.
*Assembly of slider and adjustment of shim:
Assemble the slider as the backside of rail and the
friction surface of slider are in parallel.
Match the outer rail end and inter rail end, and then
make the gap between the flange face of inter rail
and the slider will be within 0.5mm.
*Assembly of slider and adjustment of shim:
Assemble the slider as the backside of rail and the
friction surface of slider are in parallel.
Match the outer rail end and inner rail end, and then
make the gap between the flange face of inner rail
and the slider will be within 0.5mm.
