Group 38, Counterweight and Chassis
38-3-2 • Overhead Guard Removal and Installation SM 765, Nov ’06
CAUTION
!
SAFE PARKING. Before working on truck:
1. Park truck on a hard, level and solid sur-
face, such as a concrete floor with no
gaps or breaks.
2. Put upright in vertical position and fully
lower the forks or attachment.
3. Put all controls in neutral. Turn key
switch OFF and remove key.
4. Apply the park brake and block the
wheels.

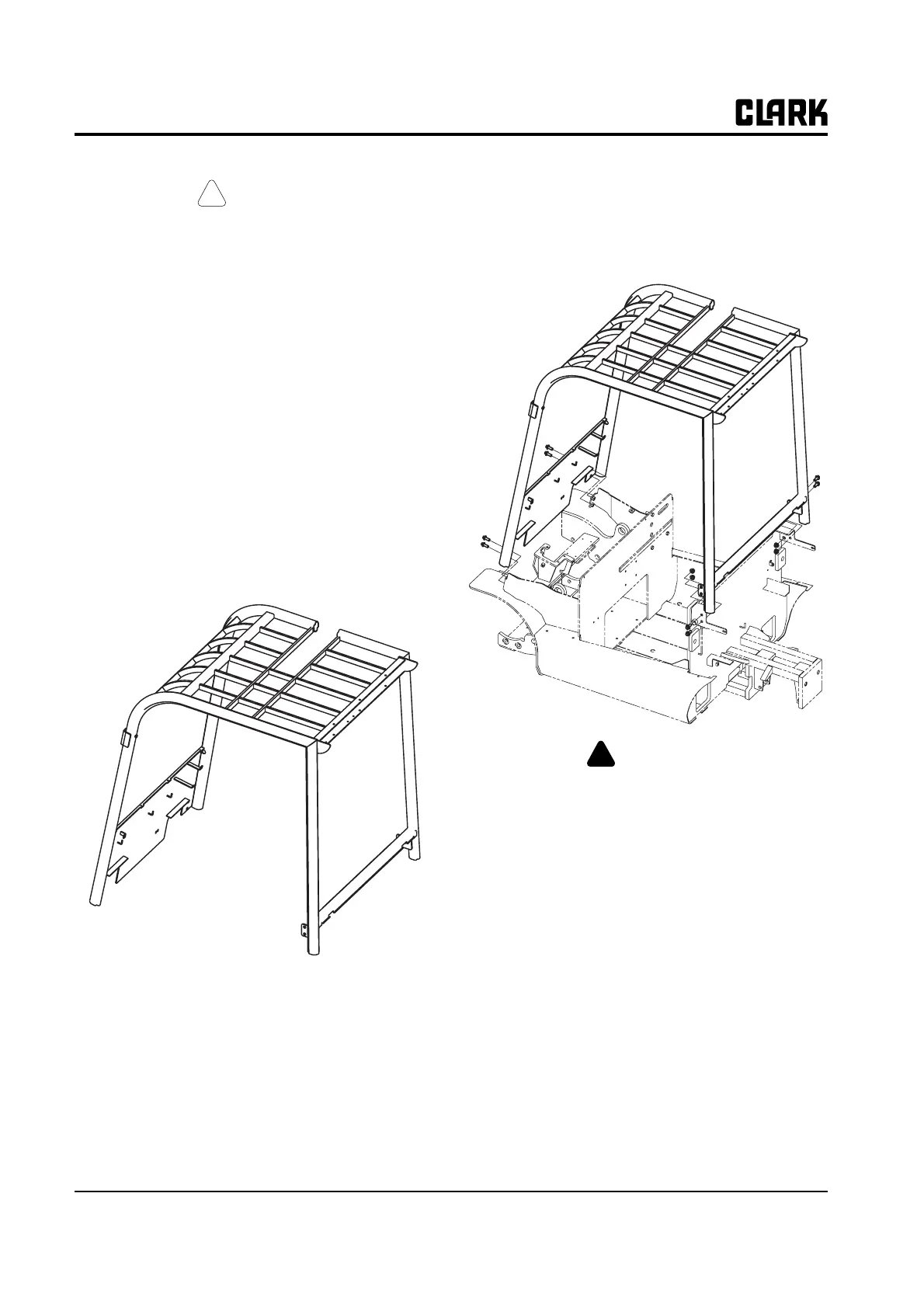

Overhead Guard Removal
1. Remove the battery.
2. It is not anticipated that it should be necessary to
remove the overhead guard from the truck in thc-
coursc of normal service or repair. The instrument
panel/cowl assemblies are supported by the overhead
guard.
3. If the overhead guard shall be disassembled from the
fork lift truck for repair or replacement, make sure to
install the lifting hook to the overhead guard.
4. Remove the battery cover and control cover, and then
remove the floor. Disassemble all the kinds of wir-
ings from the overhead guard.
5. Remove the overhead guard mounting bolts.
6. Lift overhead guard from the truck
Overhead Guard Installation
1. Put overhead guard in place on the truck chassis.
2. Install the eight overhead guard mounting bolts.
Tighten to 88-95 N⋅m (65-70 lb-ft).
WARNING
!
Overhead guard must be in place to protect
operator from falling objects.
