SM 765, Nov ’06 General Electrical Service Tips • 13-2-1

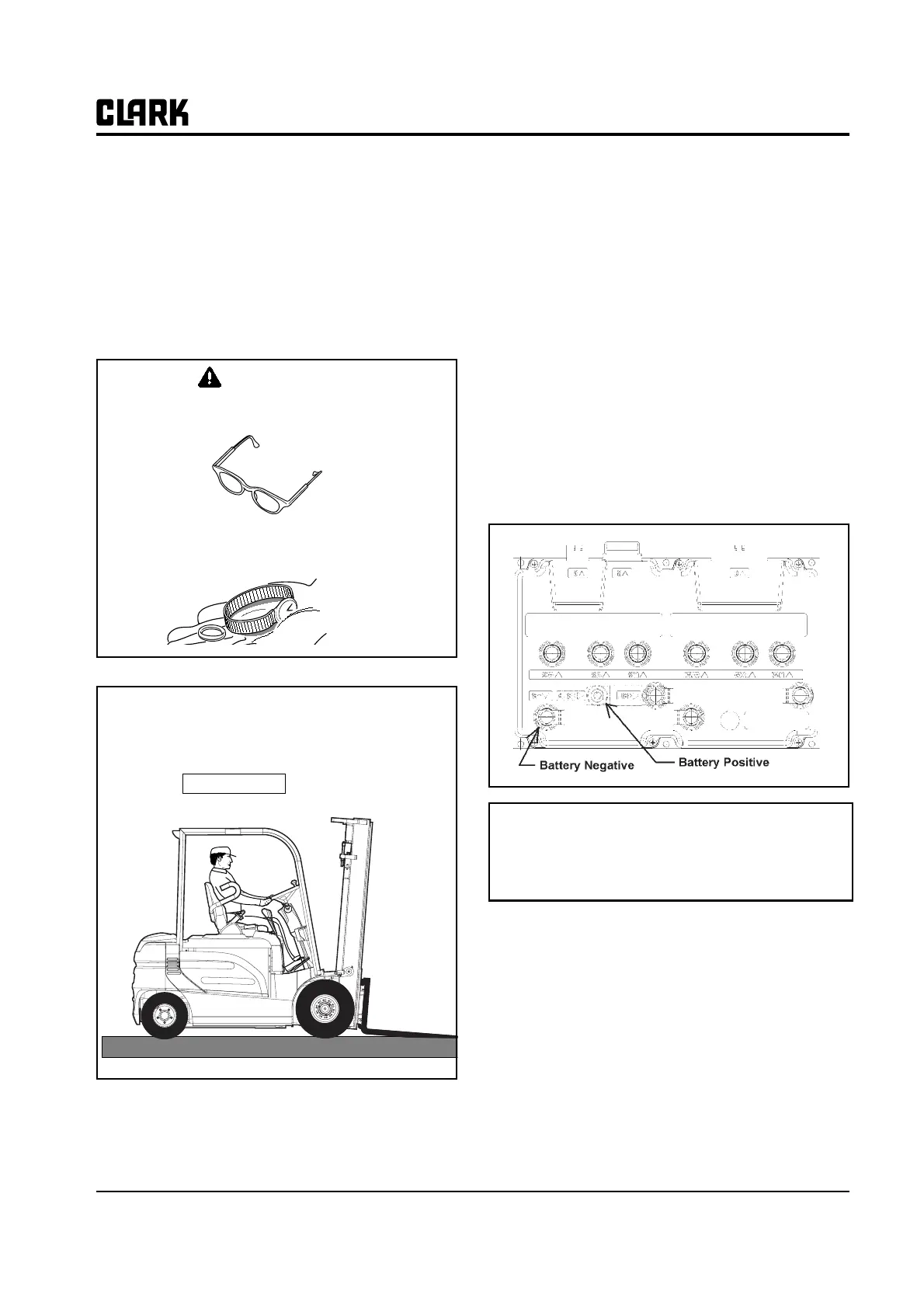

General Electrical Service Tips
2. Disable the truck:
• Turn the key switch to OFF.
• Remove key.
• Make sure battery is disconnected.
3. Discharging Controller Capacitors
It is necessary to discharge the capacitors before you work
on the controller.
N
TE
Make sure that the battery has first been dis-
connected at the battery receptacle.
CAUTION
Always wear safety glasses.
Remove all jewelry before
working on truck.
. Park truck on a flat level surface.
. Fully lower upright.
. Tilt forks forward until fork tips touch the floor.
1. Move truck to service area:
SERVICE AREA
Section 2
General Electrical Service Tips
To discharge the capacitors connect a 200 ohm 10
watt resistor between the positive and negative
input post of the controller for 10 seconds.
